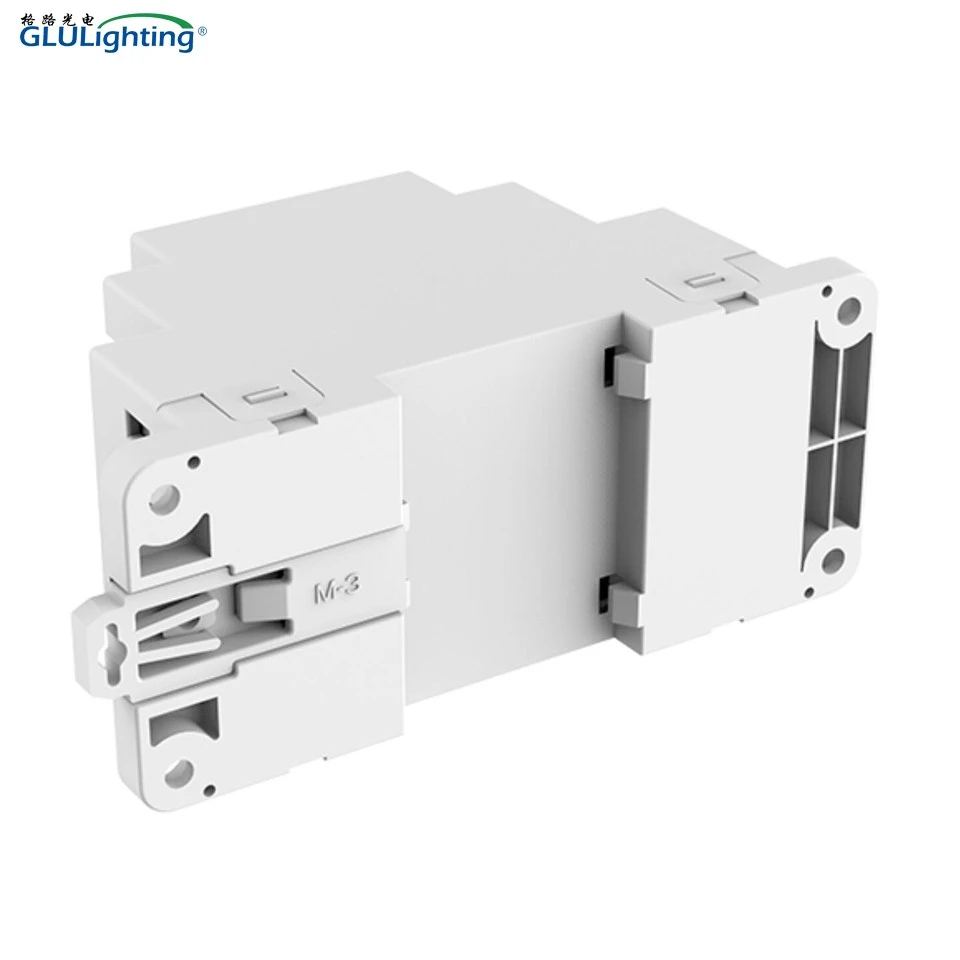

Rail Type 4 Channel CVDMX512 & RDM Decoder
● DMX512 & RDM Function;
● Stand-alone function;
● Seven PWM frequency/;
● Linear or logarithmic dimming;
● Digital Numeric display.
Description
Technical Parameters
Products main Feature
Rail type 4 Channel CV DMX512 & RDM Decoder
● Comply with the DMX512/RDM standard protocols.
● Digital numeric display, set DMX decode start address by buttons.
● RDM function can realize intercommunication between DMX master and decoder. For example, DMX decoder address can be set by DMX master console.
● 1/2/4 DMX channel output selectable.
● 16bit (65536 levels) /8bit (256 levels) grey level selectable.
● PWM frequency 250/500/1000/2000/4000/8000/16000Hz selectable.
● Logarithmic or linear dimming curve selectable.
● Stand-alone RGB/RGBW mode and 4 channel dimmer mode selectable, which be controlled by buttons with built-in programs, instead of DMX signal.
● Over-heat / Over-load / Short circuit protection, recover automatically.
● Available in white or black.
Mechanical structures & Installation
Mechanical Dimension

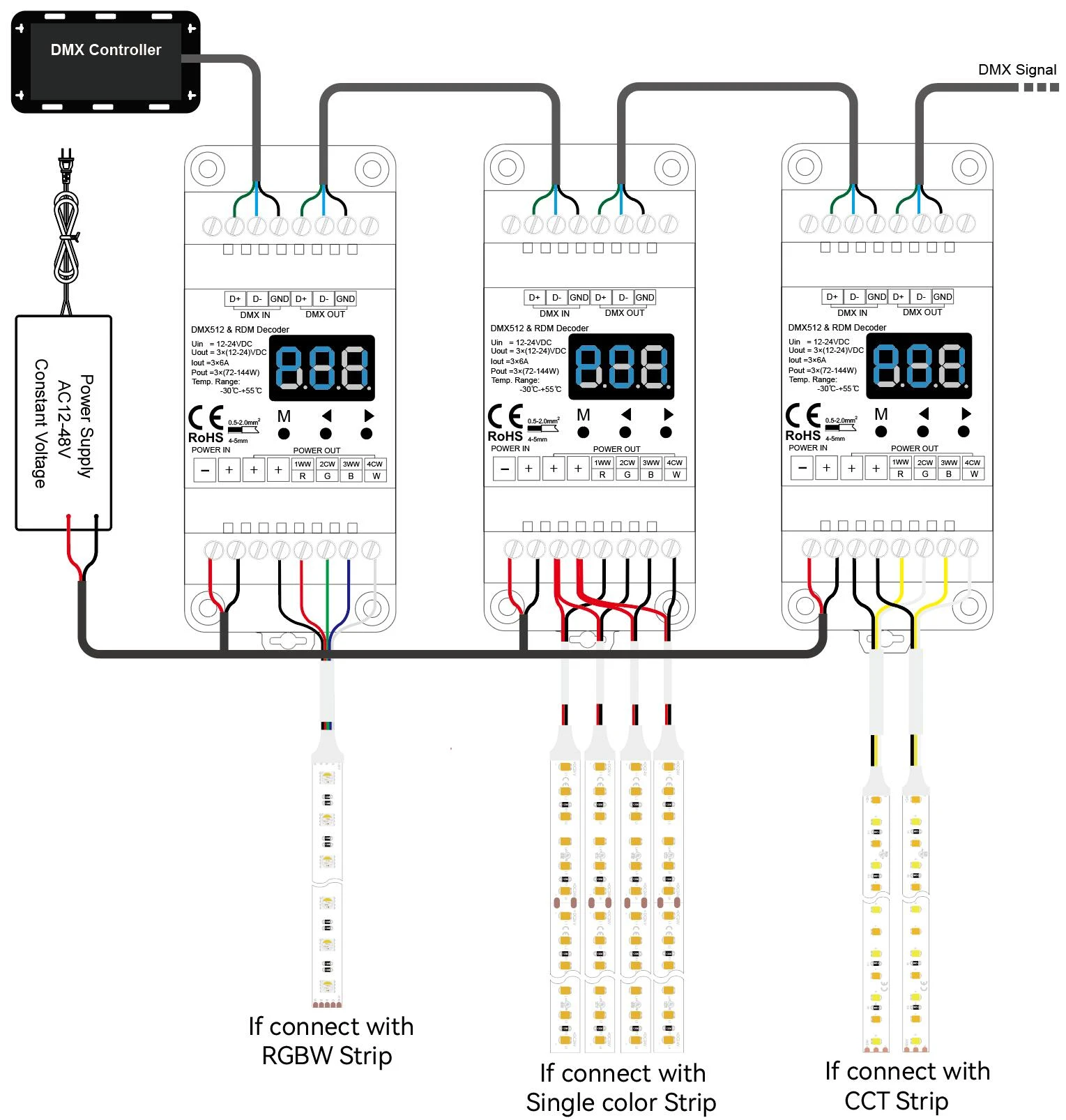

Connecting dirgarm
Note:
1. An DMX signal amplifier is needed if more than 32 decoders are connected, or use overlong signal line, signal amplification should not be more than 5 times continuously.
2.If the recoil effect occurs because of longer signal line or bad line quality, please try to connect 0.25W 90-120Ω terminal resistor at the end of each DMX signal line.
3.When display 1OL,2OL,3OL,4OL, correspond to 1,2,3,4 channel overload alarm. When display OHA, overheat alarm.
RGBW changing mode
| NO. | Modes | NO. | Modes | NO. | Modes |
| P01 | Static red | P11 | Green strobe | P21 | Red yellow smooth |
| P02 | Static green | P12 | Blue strobe | P22 | Green cyan smooth |
| P03 | Static blue | P13 | White strobe | P23 | Blue purple smooth |
| P04 | Static yellow | P14 | RGB strobe | P24 | Blue white smooth |
| P05 | Static cyan | P15 | 7 color strobe | P25 | RGB+W smooth |
| P06 | Static purple | P16 | Red fade in and out | P26 | RGBW smooth |
| P07 | Static white | P17 | Green fade in and out | P27 | RGBY smooth |
| P08 | RGB jump | P18 | Blue fade in and out | P28 | Yellow cyan purple smooth |
| P09 | 7 color jump | P19 | White fade in and out | P29 | RGB smooth |
| P10 | Red strobe | P20 | RGBW fade in and out | P30 | 6 color smooth |
★ For other information about detailed operation pls refer to the user's manual or consult our sales.
