24 Channels High Frequency DMX Decoder
● Working Voltage DC12-24V;
● 24 Channels×5A;
● 8Bit(256) & 16Bit(65536) selectable;
● 5K/30K Hz can be choosed.
Description
Technical Parameters
High Frequency 24 Channels DMX Decoder Main Feature
● Comply with the DMX512/1990 standard protocols.
● With RJ45 and XLR interface for DMX IN/OUT selectable.
● Converts standard DMX signal to hi-frequency PWM-for 12V-24V LED lights
● 16bit (65536 levels) /8bit (256 levels) grey level selectable.
● PWM frequency 5K/30KHz selectable.
● Can achieve asynchronous color changes effect under working with controller.
● Setting the DMX address freely with Dip Switch.
● The 8 output terminals provide 8 independently controllable 3 channels of constant-voltage PWM dimming.

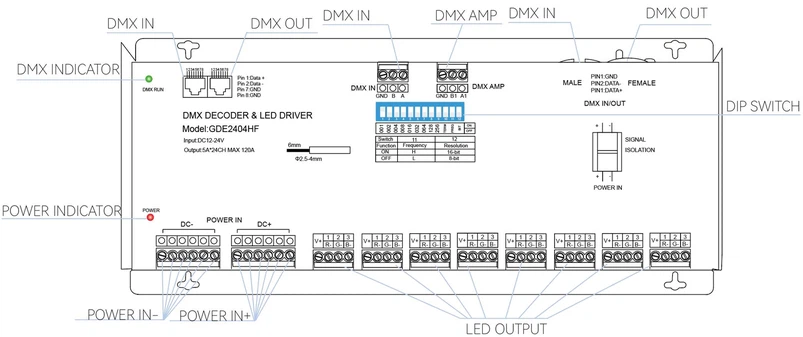

High Frequency 4 Channels DMX Decoder Mechanical Structures
RJ45 Connector for DMX IN/OUT
XLR Connector for DMX IN/OUT

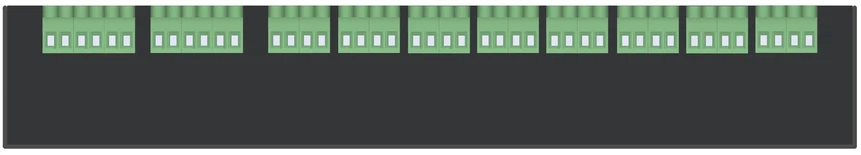

Green Block connector for Power IN & LED Output
High Frequency 24 Channels DMX Decoder Dimension
High Frequency 24 Channels DMX Decoder Connection and Wiring Diagram
Hot Tags: 24 channels high frequency dmx decoder, China, manufacturers, suppliers, factory, customized
High Frequency 4 Channels DMX Decoder Technical Parameter
| Input and Output | Grey Levels and PWM Frequency | ||
| Input voltage | 12-24VDC |
Grey Levels |
16bit (65536 levels)/ 8bit (256 levels) |
|
Output current(Max.) |
24CH×5A@12-24V | PWM Frequency | 5K/30KHz |
|
Output power(Max.) |
1440W@12V 2880W@24V | Environment | |
| Output type | Constant voltage | Operation temperature | Ta: -30 ℃ ~ +55 ℃ |
| Materials, Size and Weight | IP rating | IP40 | |
| Materials | Steel | Input and Output Connectors | |
| Size | L290×W122×H33mm | DMX IN/ OUT | RJ45/XLR |
| Gross Weight |
780g |
Power in/LED Out | Green Block Terminal |
