● High density with 252LEDs per meter;
● DC24V with 15mm width PCB Design;
● High CRI value for Tungsteh(Warm white) & Daylight(Cool white), Ra>95;
● High TLCI Value for Tungsteh(Warm white) & Daylight(Cool white),TLCI>97;
● High Power with 44.3W/M;
● High lumen output,2705lm/m max.
Description
Technical Parameters
High CRI Chroma RGBACCT LED Flex Ribbon Double Rows 252leds 24VDC
Double Rows series RGBACCT Flex LED Ribbon
High CRI Chroma RGBACCT LED Flexible Ribbon double rows 252leds/m 24V version is the most popular products in our Chroms strip series, due to it's reailble, even light distribution,
designed with DC24V double rows with checkboard layout, by using high brightness 5050 RGBA 4-in-1 SMD combined with cinema-quality 2835 SMD, with high brightness, high CRI value over 95, and R1-R15 all over 90, high TLCI of 95+. With amber color conbined compare with RGBCCT series, which can achieve more rich and colorful effect by using a DMX or other 6 channels controller.
01
High Quality Light Sources
High quality 5050RGBA 4-in-1 SMD and Cinema-quality 2835 SMD with high CRI value and high TLCI value.
02
High Quality FPCB
For the RGBACCT flex ribbon, we use high tech double layer FPB with 3oz copper(1oz on top and 2oz on bottom), with low voltage drop and good heat dissaption.
03
Strict Quality Control
We have a strict quality control process during all production process, from raw materials to assembly to soldering and aging test, and a final quality test is necessary process.
04
Custom Service
we have professional sales team which can help for any problem while using in short time.
Main Feature
● Working with DC 24v;
● 15mm width PCB Design with double rows layout and checkboard distribution;
● 5050 RGBA 4-IN-1 LED and 2835 SMD as Light sources;
● High Density with 252leds/m(RGBA/T/D each 84pcs);
● Wide CCT range Selectable: Tungsten from 2000K-3500K, Daylight from 5000K-10000K;
● High Wattage and High Brightness;
● UL/CUL Listed with file No. E495503, CE certificated and RoHS Compliant.
R/G/B/A Spectrum & Wavelength
CRI, Spectrum & Wavelength for tungsten & Daylight
CCT Range from 2000K-10000K, standard CCT for Tungsten 2800K and 3200K, Daylight 5600K and 6500K
Standard Tungsten Color
We offer different CCT for Tungsten Color, which the standard one is the most popular CCT with 2800K, which we make with 2700-2900K, if there is no special request.
Standard daylight
We offer different CCT for Daylight Color, which the standard one is the most popular CCT with 5600K or 6500K, if there is no special request.
Special Tungsten-Flame color
For Tungsten color, besides standard 2800K, we also offer flame color of 2000K and 2200K, also 3000K available for choice, and all RA above95, R1-R15 above 90, TLCI over 95.
Special Daylight Color
For Daylight, besides standard 5600K and 6500K which is the most popular CCT for the film industry, we also offer blue daylight of 10000K, which conbined with a flame color, which can offer a wide CCT range, can achieve a wide CCT range.
product details and Dimension
products details
For our 5050 RGBA+2835 CCT LED Ribbon series we offer DC24V version, the whole series use 18AWG 6pin bare wire with low voltage drop, and also thicker PCB of 3oz copper layer ensure the good heat radiation and also keep low voltage drop. For backadhesive, we use 3M 9080HL as standard, and also for other backadhesive like 300LE tape, 3M VHB or TESA tape etc.
Product Dimension
This high density double row RGBACCT LED Strip is designed with 15mm width, for DC24V version cuttable with 71.43mm. UL/CUL Listed and CE Certificated.
DC24V verison comes with 2.5meter/reel for UL/CUL Standard and 5meter/reel for CE Standard..
our certification for RGBACCT LED Ribbion
CE, RoHS for Europe and UL for Amercia, CUL for Canada
Why Choose US?
Why High CRI?

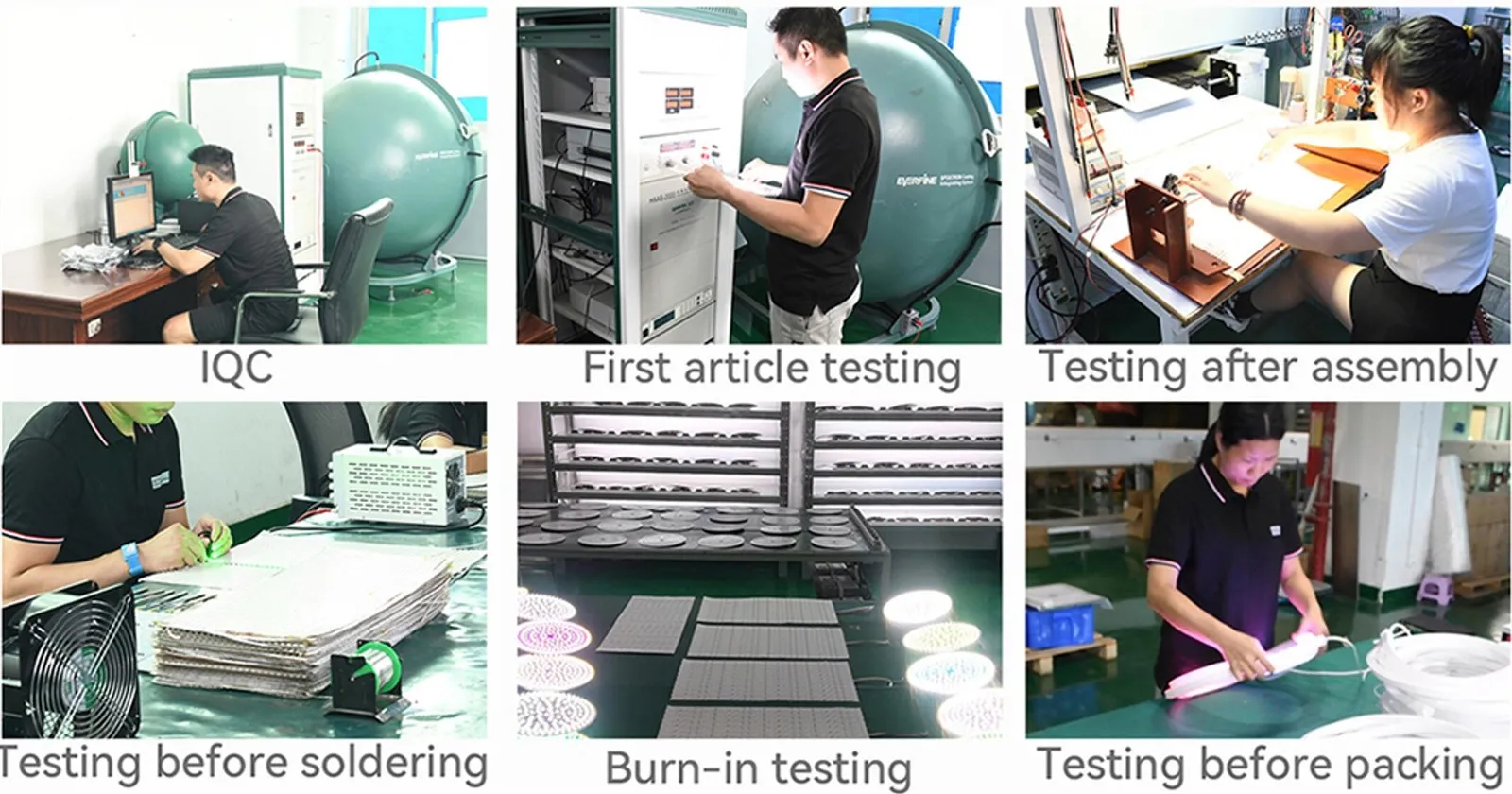

our quality Control
Our Equipments
Exhibitions
Shipment and Payment
RAQ
1. Can we get Sampels?
Yes, we offer samples, for short piece we can send free samples, customer just should cover the shipping cost. Also a sample order is welcomed, mixed samples are acceptable.
2. How long can we get samples?
Normally we can send samples within 3- 5days, as we have main materials for samples in stock to ensure a fast delivery, and mixed samples with many models might be 5-7days for normal.
3. What's the lead time for a normal order?
For Normal standard order the delivery time is 10-15days, for special required order delivery time is around 15days.
4. Do you have a MOQ for samples order and standard orders?
For samples 1meter or 1pcs is available, and for standard products MOQ is 100meter for strip and 5pcs for panels.
5. How to buy our products?
When you contact our professional sales, just tell our sales your detail requirement or products you would like to order, and once samples are verified, let us know the quantity, and our sales will process you the invoice for production.
6. How can we pay the order, and how to send our goods?
We offer different payment method, T/T, Paypal or order through Ali trade assurance is welcomed. Normally for standard order, we will send them by DHL, FedEX, UPS etc. and also airshipment and seashipment is optional.
7. Do you offer customized products or offer logo print?
Yes, we have an experienced R & D team, you can let us know your details requirement, and then we will make special design for you, after sampels confirmed, we can process mass production. To print logo on label is offered in small order, and for printing on PCB, we have an MOQ of 500 meters for strip, and 50pcs for panels.
8. What's the warranty of your products?
For standard our warranty is 3 years, and we can also offer a 5 years warranty or even longer based on different products.
9. Can we get a constant color between each order?
We have many years production experience for led products with high CRI solutions, all LEDs for our standard CCT are come with same bin for each order. So we will keep mostly the same color.
10.How to deal with faulty?
We offer high end led products, all our products from materials to finished products are under strict quality inspection, however, for an electronic products, nobody can ensure 100% prefect, so frankly speaking we have a defective ratio less than 0.1%. Once the products get fault during guarantee time, after confirm the defective reason, we will offer replacement with new order for small quantity. For batch defective, we will discuss best solutions to get problem solved.
Hot Tags: high cri rgbacct led flex ribbon 5050rgba+2835td double rows 252leds 24vdc, China, manufacturers, suppliers, factory, customized
product parameters
| Product Code | GLUA24CV015L0203FH06W252C3 |
| Part Number | GLU-S6L0203FH252-24V |
| Product Picture |  |
| LED Type | 5050 RGBA 4-in-1 SMD +2835 SMD |
| LED Qty. | 252PCS(RGBA/T/D each 84pcs) |
| CRI Whites | 95+ |
| R1-R15 Whites | 90+ |
| TLCI Whites | 95+ |
| Copper Thickness | 3oz(1oz+2oz) |
| PCB Width | 15mm(0.59 in.) |
| PCB Color | White(Others can be customized) |
| Opearation Voltage | DC24V Constant Voltage(DC18-26V) |
| Current per Meter | 1.85A(R/G/B/A 0.25A, T/D 0.42A) |
| Power per Meter | 44.3W(R/G/B/A 6.05W, T/D 10.08W) |
| Lumen per Meter | R 170lm/G 480lm/B 120lm/A 165lm / T 830lm/D 940lm |
| IP Rating | IP20 |
| Cutting Length | 71.43mm(2.81in.) |
| Cuttable Segment per Meter | 14 |
| LEDs per Cutting Segment | 18PCS(5050RGBA/2835 T/2835 D each 6pcs) |
| Total LEDs per Roll | 630pcs(UL/CUL Standard),1260pcs(CE Standard) |
| LED Specing | 11.9mm(0.47in.) |
| Strip Overall Thickness | 2mm(0.079in.) |
| Packing Length |
2500mm(98.431in./8.2ft) UL/CUL Standard 5000mm(196.85in./16.4ft)/CT Standard |
| Number of Tracks | 7 |
| View Angle | 120 degree |
| Max. Recommended Length | 5meter(16.4ft.) |
| Connections | 7 pin bare wire |
| Installation | 3M 9080HL, 3M 300LE or others optional |
Note: 1. The tolerance of lumen fux and power is ±10% due to difference for test equipment.
2. The parameters may change without prior notice.
