● High density with 288LEDs per meter;
● DC48V with 20mm width PCB Design;
● High CRI value for Tungsteh(Warm white) & Daylight(Cool white), Ra>95;
● High TLCI Value for Tungsteh(Warm white) & Daylight(Cool white),TLCI>97;
● High Power with 52.2W/M;
● High lumen output,3225lm/m max.
Description
Technical Parameters
DC48V Ra95 Chroma RGBACCT 288LEDs per Meter
High CRI Chroma 48V Double Rows RGBACCT 288LED per meter Flexible Ribbon is one of the most popular products in our Chroms strip series, due to it's reailble, even light distribution, designed with DC48V double rows with checkboard layout, by using high brightness 5050 RGBA 4-in-1 SMD combined with cinema-quality 2835 SMD, with high brightness, high CRI value over 95, and R1-R15 all over 90, high TLCI of 95+. With amber color conbined compare with RGBCCT series, which can achieve more rich and colorful effect by using a DMX or other 6 channels controller.
DC48V Ra95 Chroma RGBACCT 288LEDs per Meter
Main Features
DC48V
The strip is designed with working voltage DC48V.
20mm width PCB
The strip is designed with 20mm width PCB with double rows design.
Checkboard Design
The strip is designed with checkboard layout, which ensure the even light distribution.
Cinema Quality SMD
Designed with high quality RGBA 4-IN-1 SMD and Cinema Quality 2835 SMD.
High density
The strip designed with high density, 20mm width with 288LEDs/m, RGBA, 2835 Tungsten and Daylight each 96pcs.
Different CCT Available
We offer different CCT from flame color 2000K to Bule daylight 10000K, and 2800K and 5600K or 6500K for standard.
High CRI & TLCI Value
For the strip tungsten and daylight we offer all Ra value above 95, TLCI above 95, and full-sperum R1-R15 above 90.
UL/CUL, CE Certificatied and RoHS Compliance
The strip are aconform to UL certificated for North Amercia, CUL for Canada and CE certificated and Rohs compliance for Europe.

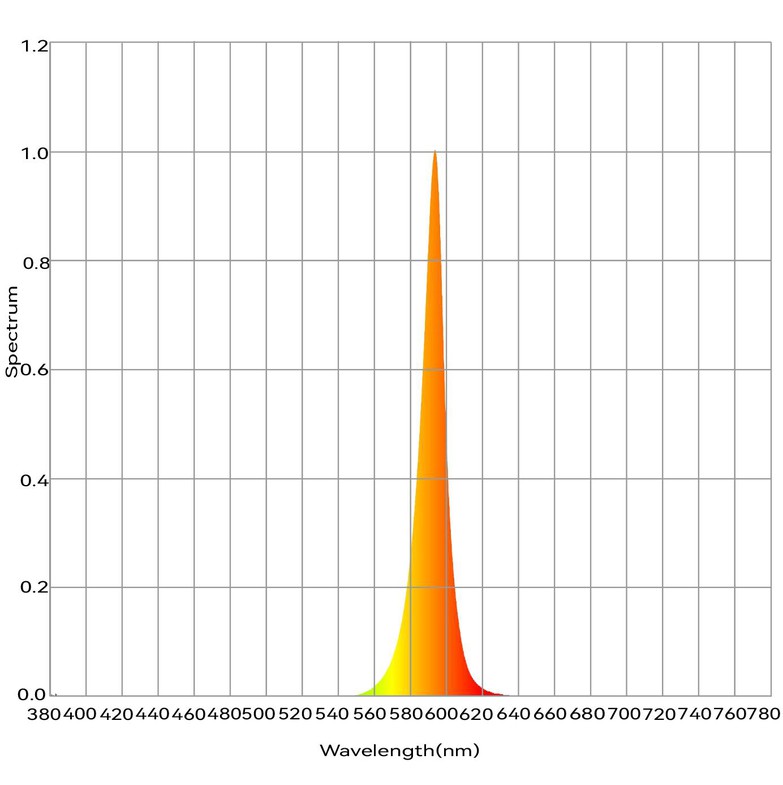

R/G/B/A Spectrum & Wavelength For 5050 4-in-1 SMD
CRI, Spectrum & Wavelength for tungsten & Daylight
product details and Dimension
Product Details
For our 5050 RGBA+2835 CCT LED Ribbon series we offer DC48V version, the whole series use 18AWG 6pin bare wire with low voltage drop, and also thicker PCB of 3oz copper layer ensure the good heat radiation and also keep low voltage drop. For backadhesive, we use 3M 9080HL as standard, and also for other backadhesive like 300LE tape, 3M VHB or TESA tape etc.
Product Dimension
This high density double row RGBACCT LED Strip is designed with 20mm width, for DC12V version cuttable with 125mm. UL/CUL Listed and CE Certificated.
DC48V verison comes with 2meter/reel for UL/CUL Standard and 5meter/reel for CE Standard.
Why Choose US?
Our Factory
Our R & D
Quality Control
Our Certification
Products Description
Hot Tags: dc48v ra95 chroma rgbacct 288leds per meter, China, manufacturers, suppliers, factory, customized
Product Technical Parameter
| Product Code | GLUA48CV020L0203FH12W288C3 |
| Part Number | GLU-S6L0203FH288-48V |
| LED Type | 5050 RGBA 4-in-1 SMD +2835 SMD |
| LED Qty. | 288PCS(RGBA/T/D each 96pcs) |
| CRI Whites | 95+ |
| R1-R15 Whites | 90+ |
| TLCI Whites | 95+ |
| Copper Thickness | 3oz(1oz+2oz) |
| PCB Width | 20mm(0.79 in.) |
| PCB Color | White(Others can be customized) |
| Opearation Voltage | DC48V(DC31-50V) |
| Current per Meter | 1.09A(R/G/B/A 0.14A, T/D 0.26A) |
| Power per Meter | 52.2W(R/G/B/A 6.91W, T/D 12.29W) |
| Lumen per Meter | R 191lm/G 545lm/B 135lm/A 190lm / T 1020lm/D 1140lm |
| IP Rating | IP20 |
| Cutting Length | 125.00mm(4.92in.) |
| Cuttable Segment per Meter | 8 |
| LEDs per Cutting Segment | 36PCS(5050RGBA/2835 T/2835 D each 12pcs) |
| Total LEDs per Roll | 576pcs(UL/CUL Standard),1440pcs(CE Standard) |
| LED Specing | 10.42mm(0.41in.) |
| Strip Overall Thickness | 2mm(0.079in.) |
| Packing Length |
2000mm(78.74in./6.56ft) UL/CUL Standard 5000mm(196.85in./16.4ft)/CT Standard |
| Number of Tracks | 7 |
| View Angle | 120 degree |
| Max. Recommended Length | 5meter(16.4ft.) |
| Connections | 7 pin bare wire |
| Installation | 3M 9080HL, 3M 300LE or others optional |
Note: 1. The tolerance of lumen fux and power is ±10% due to difference for test equipment.
2. The parameters may change without prior notice.
