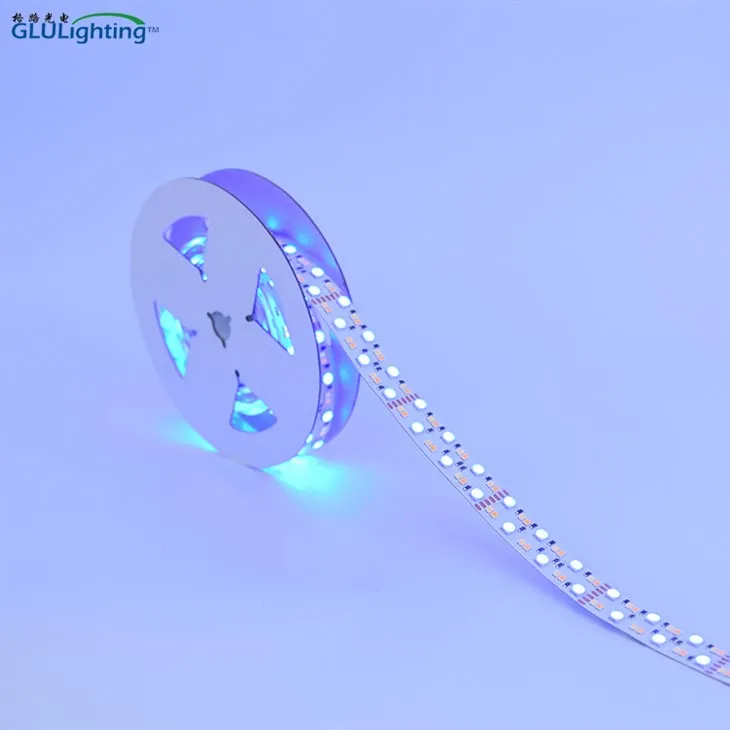

Ra95 Chroma Double Rows RGBACCT Flex LED Ribbon 24V 288LEDs Per Meter
Ra95 Chroma Double Rows RGBACCT Flex LED Ribbon 24V 288LEDs Per Meter
Ra95 Chroma Double Rows RGBACCT Flex LED Ribbon 24V 288LEDs Per Meter
Ra95 Chroma Double Rows RGBACCT Flex LED Ribbon 24V 288LEDs Per Meter
Ra95 Chroma Double Rows RGBACCT Flex LED Ribbon 24V 288LEDs Per Meter
Ra95 Chroma Double Rows RGBACCT Flex LED Ribbon 24V 288LEDs Per Meter
Ra95 Chroma Double Rows RGBACCT Flex LED Ribbon 24V 288LEDs Per Meter
Ra95 Chroma Double Rows RGBACCT Flex LED Ribbon 24V 288LEDs Per Meter
Ra95 Chroma Double Rows RGBACCT Flex LED Ribbon 24V 288LEDs Per Meter
● High density with 288LEDs per meter;
● DC24V with 20mm width PCB Design;
● High CRI value for Tungsteh(Warm white) & Daylight(Cool white), Ra>95;
● High TLCI Value for Tungsteh(Warm white) & Daylight(Cool white),TLCI>97;
● High Power with 52.2W/M;
● High lumen output,3225lm/m max.
Description
Technical Parameters
Ra95 Chroma Double Rows RGBACCT Flex LED Ribbon 24V 288LEDs per Meter
Double Rows Series 24V RGBACCT 288LEDs Version
Description for Ra95 Chroma Double Rows RGBACCT Flex LED Ribbon 24V 288LEDs per Meter
High CRI Chroma 24V Double Rows RGBACCT 288LED per meter Flexible Ribbon is one of the most popular products in our Chroms strip series, due to it's reailble, even light distribution,
Designed with DC24V double rows with checkboard layout, by using high brightness 5050 RGBA 4-in-1 SMD combined with cinema-quality 2835 SMD, with high brightness, high CRI value over 95, and R1-R15 all over 90, high TLCI of 95+. With amber color conbined compare with RGBCCT series, which can achieve more rich and colorful effect by using a DMX or other 6 channels controller.
Ra95 Chroma Double Rows RGBACCT Flex LED Ribbon 24V 288LEDs per Meter
Main Feature
DC24V
The strip is designed with working voltage DC24V.
20mm width PCB
The strip is designed with 20mm width PCB with double rows design.
Checkboard Design
The strip is designed with checkboard layout, which ensure the even light distribution.
Cinema Quality SMD
Designed with high quality RGBA 4-IN-1 SMD and Cinema Quality 2835 SMD.
High density
The strip designed with high density, 20mm width with 288LEDs/m, RGBA, 2835 Tungsten and Daylight each 96pcs.
Different CCT Available
We offer different CCT from flame color 2000K to Bule daylight 10000K, and 2800K and 5600K or 6500K for standard.
High CRI & TLCI Value
For the strip tungsten and daylight we offer all Ra value above 95, TLCI above 95, and full-sperum R1-R15 above 90.
UL/CUL, CE Certificatied and RoHS Compliance
The strip are aconform to UL certificated for North Amercia, CUL for Canada and CE certificated and Rohs compliance for Europe.
R/G/B/A Spectrum & Wavelength For 5050 4-in-1 SMD
CRI, Spectrum & Wavelength for tungsten & Daylight
Flame Color 2000K & 2200K
Standard Tungsten Color 2800K & 3200K
Standard Daylight Color 5600K & 6500K
Blue Daylight
product details and Dimension
Products Details
For our 5050 RGBA+2835 CCT LED Ribbon series we offer DC24V version, the whole series use 18AWG 6pin bare wire with low voltage drop, and also thicker PCB of 3oz copper layer ensure the good heat radiation and also keep low voltage drop. For backadhesive, we use 3M 9080HL as standard, and also for other backadhesive like 300LE tape, 3M VHB or TESA tape etc.
Product Dimension
This high density double row RGBACCT LED Strip is designed with 20mm width, for DC24V version cuttable with 62.5mm. UL/CUL Listed and CE Certificated.
DC12V verison comes with 1meter/reel for UL/CUL Standard and 5meter/reel for CE Standard.
Why Choose US?
GLU pays much attention to product innovation especially today in a competitive LED industry. GLU will always continue to explore and create new high quality& cost-effective led light for our clients across the globe.
Over 13 years experience in LED Industry
Our company is established in 2011, and we have experience for design and make of high CRI products since 2013, and we have over 13 years experience in LED industry.
Self-R & D
We have rich experience in high CRI LED Solutions for LED ribbon and flexible/rigid panel products, and also we have a strong engineering team and have the strong ability for R&D of any led related products.
Strict Quality Control
We have a strict quality control system according to ISO, and we have quality process from IQC( Inspect for raw materis) to all the process for production, such as First artical testing(To ensure the power, and test the performance of all the materials) and inspect after assembly, and before soldering, we will have a test of all semi-finished products, to make sure all parts works well. Then we will have a burn-in test for many hours to test the stability and after all process, we will have a final inspection before packing all in bag.
Top LED Strip manufacturer
We choose all best materials include 3oz or even 4 oz copper for our PCB to ensure the good conductivity and heat dissipation. For all led components, we choose all with golden wire and copper bracket, branded chips to ensure the durable preformance for the products. For cable we use UL certificated 18AWG cable to ensure the goods conductivity and low voltage drop.
OEM & ODM Services
We have strong engineering team, and we offer OEM and ODM sevices, and we offer high CRI LED solutions for our customers, and for any high CRI related LED products, you can send us your details requirement, we can make design, and make sampels for testing. once confirmed, we can make mass production.
Fast delivery
For our standard products, we have stocked PCB to ensure the fast delivery, normally for sample order, delivery time is around 7 days, and for mass product, if no need custom printed, our delivery time is around 15days.
Professional custom services
We have a procfessional sales team, who works in the LED industry for many years, and we have a professional knowledge and ability to offer you a good service for before service,
sales service and after-sale service.
FAQ
Lorem ipsum dolor sit amet consectetur adipisicing elit.
Q:1.Can we get Sampels?
A: Yes, we offer samples, for short piece we can send free samples, customer just should cover the
shipping cost. Also a sample order is welcomed, mixed samples are acceptable.
Q:2.How long can we get samples?
A:Normally we can send samples within 3- 5days, as we have main materials for samples in stock to
ensure a fast delivery, and mixed samples with many models might be 5-7days for normal.
Q:3.What's the lead time for a normal orde?
A:For Normal standard order the delivery time is 10-15days, and for special required order delivery
time is around 15days.
Q:4.Do you have a MOQ for samples order and standard orders?
A:For samples 1meter or 1pcs is available, but for standard products MOQ is 100meter for strip &
5pcs for panels.
.
Q:5.How to buy our products?
A:When you contact our professional sales, just tell our sales your detail requirement or products
you would like to order, and once samples are verified, let us know the quantity, and our sales will
process you the invoice for production.
Q:6.How can we pay the order, and how to send our goods?
A:We offer different payment method, T/T, Paypal or order through Ali trade assurance is welcomed.
Normally for standard order, we will send them by DHL, FedEX, UPS etc. and also airshipment and
seashipment is optional.
Hot Tags: ra95 chroma double rows rgbacct flex led ribbon 24v 288leds per meter, China, manufacturers, suppliers, factory, customized
Product Technical Parameter
Product drawing
Basic feature
| Product Code | GLUA24CV020L0203FH06W288C3 |
| Part Number | GLU-S6L0203FH288-24V |
| LED Type | 5050 RGBA 4-in-1 SMD +2835 SMD |
| LED Qty. | 288PCS(RGBA/T/D each 96pcs) |
| CRI Whites | 95+ |
| R1-R15 Whites | 90+ |
| TLCI Whites | 95+ |
| Copper Thickness | 3oz(1oz+2oz) |
| PCB Width | 20mm(0.79 in.) |
| PCB Color | White(Others can be customized) |
| Opearation Voltage | DC24V(DC18-26V) |
| Current per Meter | 2.18A(R/G/B/A 0.29A, T/D 0.51A) |
| Power per Meter | 52.2W(R/G/B/A 6.91W, T/D 12.29W) |
| Lumen per Meter | R 191lm/G 545lm/B 135lm/A 190lm / T 1020lm/D 1140lm |
| IP Rating | IP20 |
| Cutting Length | 62.5mm(2.46in.) |
| Cuttable Segment per Meter | 16 |
| LEDs per Cutting Segment | 18PCS(5050RGBA/2835 T/2835 D each 6pcs) |
| Total LEDs per Roll | 576pcs(UL/CUL Standard),1440pcs(CE Standard) |
| LED Specing | 10.42mm(0.41in.) |
| Strip Overall Thickness | 2mm(0.079in.) |
| Packing Length |
2000mm(78.74in./6.56ft) UL/CUL Standard 5000mm(196.85in./16.4ft)/CT Standard |
| Number of Tracks | 7 |
| View Angle | 120 degree |
| Max. Recommended Length | 5meter(16.4ft.) |
| Connections | 7 pin bare wire |
| Installation | 3M 9080HL, 3M 300LE or others optional |
Note: 1. The tolerance of lumen fux and power is ±10% due to difference for test equipment.
2. The parameters may change without prior notice.
