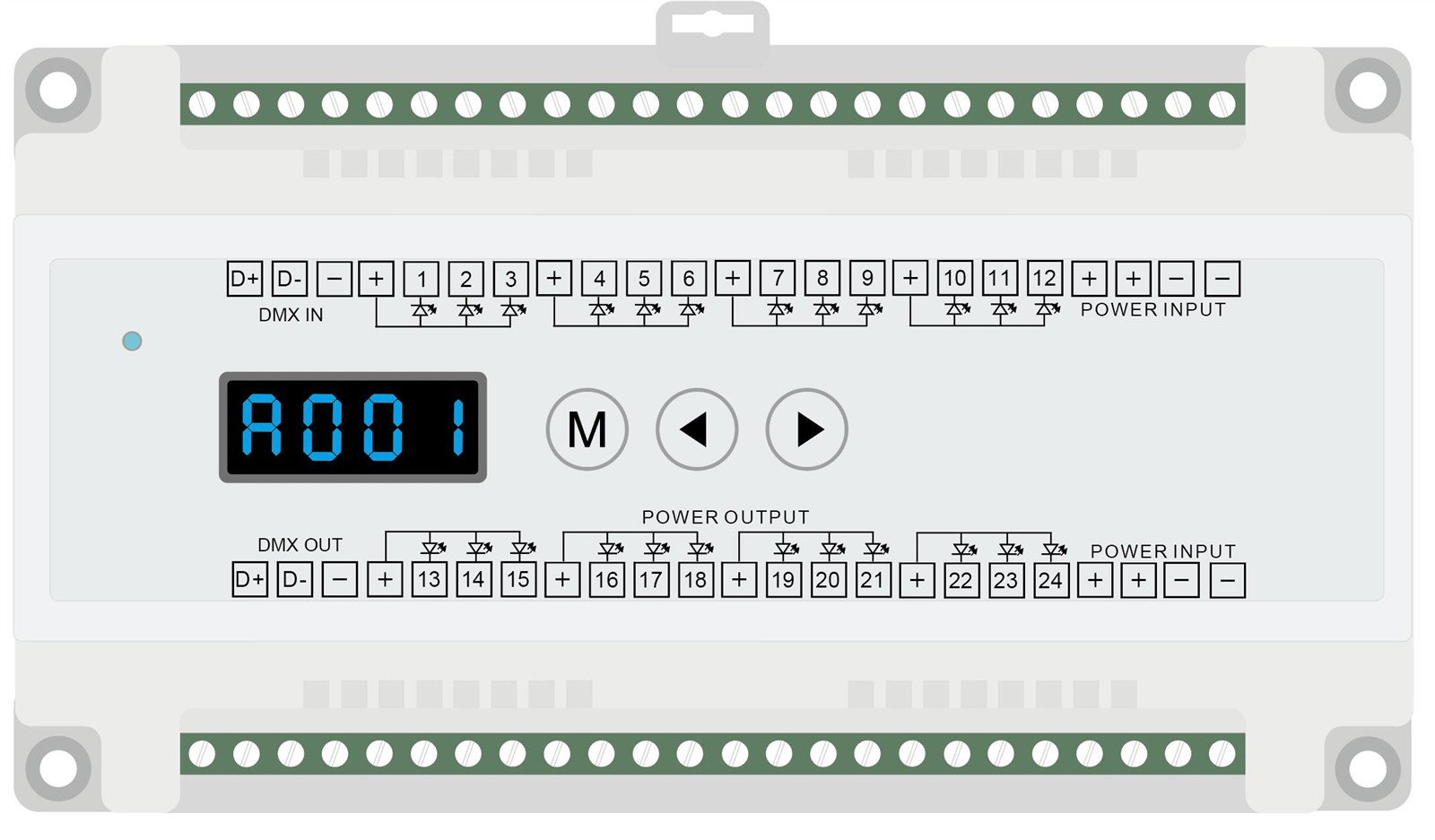

Din Rail Type 24 Channels DMX And RDM Decoder

● Comply with the DMX512 standard protocols.

● Digital numeric display, set DMX decode start address by buttons.

● RDM function can realize intercommunication between DMX master and decoder.

● For example, DMX decoder address can be set by DMX master console. 16bit (65536 levels) /8bit (256 levels) grey level selectable.

● PWM frequency 500/1000/2000/4000/8000/16000Hz selectable.

● Logarithmic or linear dimming curve selectable.

● Stand-alone 24 channels RGB mode and 24 channel dimmer mode selectable,

● which be controlled by buttons with built-in programs, instead of DMX signal.

                                                                                   RGB LED Strip× 4

                                                                                     RGB LED Strip× 4

Note:

1. An DMX signal amplifier is needed if more than 32 decoders are connected, or use overlong signal line, signal amplification should not be more than 5 times continuously.

2. If the recoil effect occurs because of longer signal line or bad line quality, please try to connect 0.25W 90-120Ω terminal resistor at the end of each DMX Signal line.

★ For other information about detailed operation pls refer to the user's manual or consult our sales.
