5 Channels 4A High Frequency CV DMX & RDM Decoder
● DMX & RDM Function;
● Numeric display;
● Seven PWM frequency;
● Linear or logarithmic dimming;
● Multiple protection
Description
Technical Parameters
Products Main Feature
5 Channels 4A High Frequency CV DMX & RDM Decoder
● Comply with the DMX512 standard protocols.
● Digital numeric display, set DMX decode start address by buttons.
● RDM function can realize intercommunication between DMX master and decoder. For example, DMX decoder address can be set by DMX master console.
● 16bit (65536 levels) /8bit (256 levels) grey level selectable.
● PWM frequency 250/500/1000/2000/4000/8000/16000Hz selectable.
● Logarithmic or linear dimming curve selectable.
● Over-heat / Over-load / Short circuit protection, recover automatically.
● GDE0504HF-RDM-1 has RJ-45 DMX signal ports, GDE0504HF-RDM-2 has Green terminal DMX signal ports
Mechanical Structures and Installations
GDE0504HF-RDM-1
GDE0504HF-RDM-2
Product Details
DMX IN/OUT for
GDE0504HF-RDM-1
RJ45 female connector
Power in and LEDs out for
GDE0504HF-RDM-1
Green block termainal
DMX IN/OUT for
GDE0504HF-RDM-2
Green block termainal
Power in and LEDs out for
GDE0504HF-RDM-2
Green block termainal

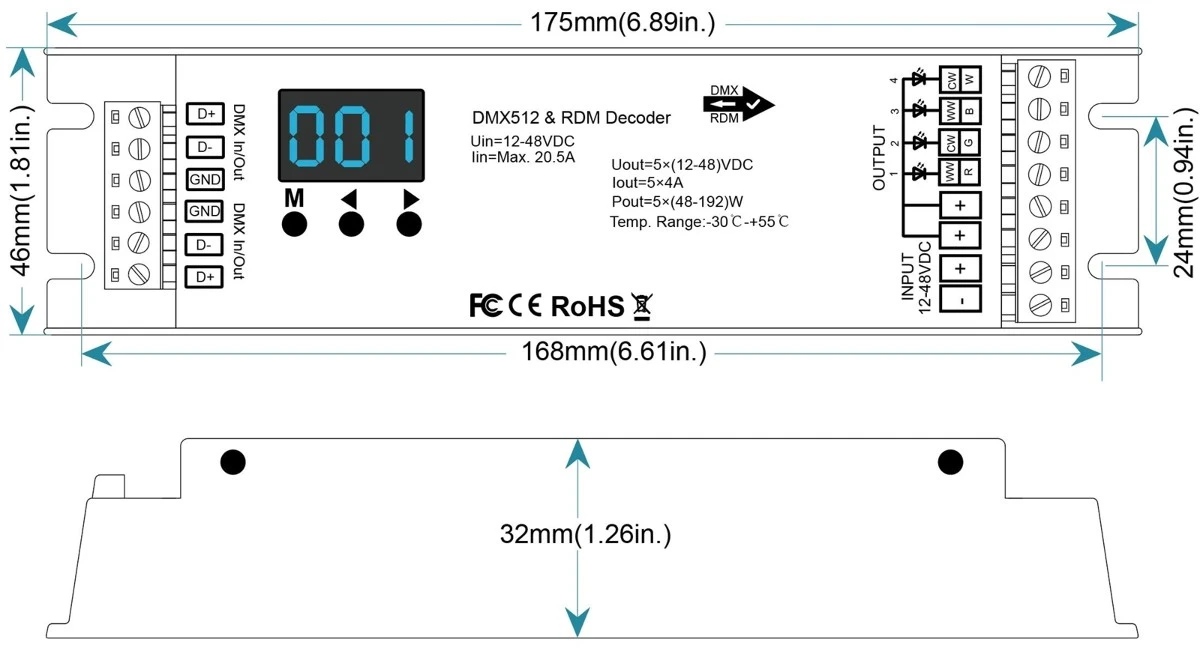

Mechanical Dimensions
GDE0504HF-RDM-1
GDE0504HF-RDM-2
Wiring Diagram
Note:
1. An DMX signal amplifier is needed if more than 32 decoders are connected, or use overlong signal line, signal amplification should not be more than 5 times continuously.
2. If the recoil effect occurs because of longer signal line or bad line quality, please try to connect 0.25W 90-120Ω terminal resistor at the end of each DMX signal line.
Dimming Cruve
★ For other information about detailed operation pls refer to the user's manual or consult our sales.
