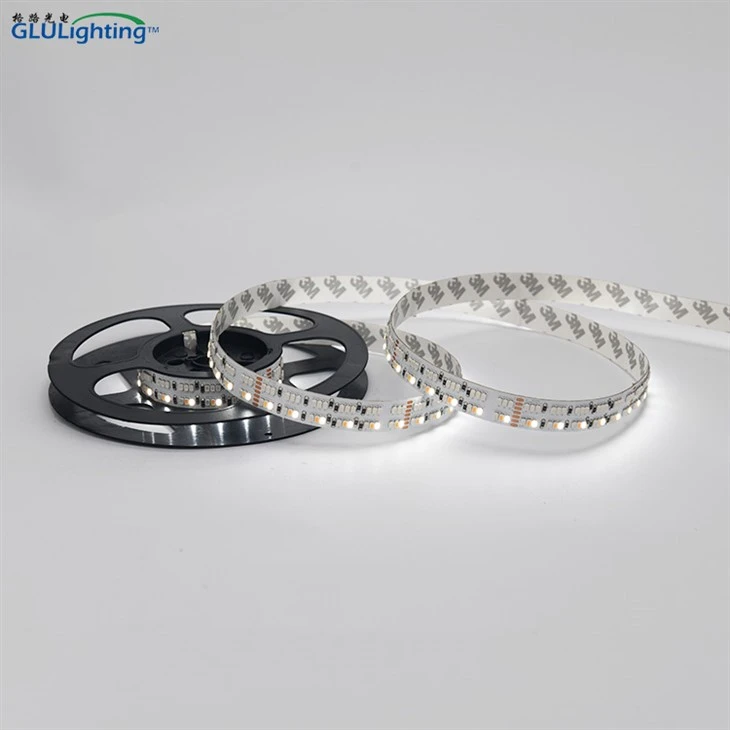

Cinema Chroma Individual 3020 RGBATD Flex Ribbon 504LEDs 24V
Cinema Chroma Individual 3020 RGBATD Flex Ribbon 504LEDs 24V
Cinema Chroma Individual 3020 RGBATD Flex Ribbon 504LEDs 24V
Cinema Chroma Individual 3020 RGBATD Flex Ribbon 504LEDs 24V
Cinema Chroma Individual 3020 RGBATD Flex Ribbon 504LEDs 24V
Cinema Chroma Individual 3020 RGBATD Flex Ribbon 504LEDs 24V
Cinema Chroma Individual 3020 RGBATD Flex Ribbon 504LEDs 24V
Cinema Chroma Individual 3020 RGBATD Flex Ribbon 504LEDs 24V
Cinema Chroma Individual 3020 RGBATD Flex Ribbon 504LEDs 24V
● High density with 502LEDs per meter;
● Individual 3020 R/G/B/A/T/D LED as Light sources;
● DC24V with 15mm width PCB Design;
● High CRI value for Tungsteh(Warm white) & Daylight(Cool white), Ra>95;
● High TLCI Value for Tungsteh(Warm white) & Daylight(Cool white),TLCI>97;
● High Power with 48.3W/M;
● High lumen output,2600lm/m max.
Description
Technical Parameters
Cinema Chroma Individual 3020 RGBATD Flex Ribbon 504LEDs 24V
Descriptions
Cinema Chroma Individual 3020 RGBATD Flex Ribbon 504LEDs 24V version is one of the most popular products in our Chroms strip series, due to it's reailble, even light distribution, designed with DC24V double rows with individual 3020 Red, Green, Blue, Amber, Tungsten and Daylight white SMD, with high brightness, high CRI value over 95, and R1-R15 all over 90, high TLCI of 95+. With amber color conbined compare with RGBCCT series, which can achieve more rich and colorful effect by using a DMX or other 6 channels controller.
Main Features
● Working with DC 24v;
● 15mm width PCB Design with double rows ;
● 3020 individual Red, Green, Blue, Amber, Tungsten and Daylight white SMD as Light sources;
● High Density with 252leds/m(R/G/B/A/T/D each 84pcs);
● CCT forTungsten from 2800K, Daylight from 5600K or 6500K;
● High Wattage and High Brightness;
● UL/CUL Listed with file No. E495503, CE certificated and RoHS Compliant.
Spectrum & Wavelength For 3020 R/G/B/A CRI, Spectrum & Wavelength for tungsten and Daylight
Products Details and Dimension
Individual 3020 RGBATD Flex Ribbon 504LEDs 24V version, the whole series use 18AWG 6pin bare wire with low voltage drop, and also thicker PCB of 3oz copper layer ensure the good heat radiation and also keep low voltage drop. For backadhesive, we use 3M 9080HL as standard, and also for other backadhesive like 300LE tape, 3M VHB or TESA tape etc.
The Individual 3020 RGBATD Flex Ribbon 504LEDs 24V version is designed with 15mm width, cuttable with 71.43mm. UL/CUL Listed and CE Certificated.
DC24V verison comes with 2meter/reel for UL/CUL Standard and 5meter/reel for CE Standard.
oUR CERTIFICATIONS FOR fLEX LED RIBBON
why Choose US?
Quality Control
eXHIBITIONS
Products Packing
Hot Tags: cinema chroma individual 3020 rgbatd flex ribbon 504leds 24v, China, manufacturers, suppliers, factory, customized
Products Technical Parameters
| Product Code | GLUA24CV012L0400FH06W504C3 |
| Part Number | GLU-S6L0400FH504-24V |
| LED Type | 3020 SMD Individual |
| LED Qty. | 504PCS(RGBA/T/D each 84pcs) |
| CRI Whites | 95+ |
| R1-R15 Whites | 90+ |
| TLCI Whites | 95+ |
| Copper Thickness | 3oz(1oz+2oz) |
| PCB Width | 30mm(1.18 in.) |
| PCB Color | White(Others can be customized) |
| Opearation Voltage | DC24V Constant Voltage(DC18-26V) |
| Current per Meter | 2.02A(R/G/B/A 0.28A, T/D 0.45A) |
| Power per Meter | 48.38W(R/G/B/A 6.72W, T/D 10.75W) |
| Lumen per Meter | R 170lm/G 385lm/B 125lm/A 150lm / T 830lm/D 940lm |
| IP Rating | IP20 |
| Cutting Length | 71.43mm(2.81in.) |
| Cuttable Segment per 1.2Meter | 14 |
| LEDs per Cutting Segment | 36PCS(3020 R/G/B/A/T/D each 12pcs) |
| Total LEDs per Roll | 1008pcs(UL/CUL Standard),2520pcs(CE Standard) |
| LED Specing | 11.9mm(0.49in.) center to center |
| Strip Overall Thickness | 1.2mm(0.0472in.) |
| Packing Length |
200mm(78.74in./6.56ft) UL/CUL Standard 5000mm(196.85in./16.4ft)/CT Standard |
| Number of Tracks | 7 |
| View Angle | 120 degree |
| Max. Recommended Length | 5meter(16.4ft.) |
| Connections | 7 pin bare wire |
| Installation | 3M 9080HL, 3M 300LE or others optional |
Note: 1. The tolerance of lumen fux and power is ±10% due to difference for test equipment.
2. The parameters may change without prior notice.
