Description
Technical Parameters
No flicker RGB Led digital strip Matrix 144Leds Addressable 5V APA102 Led Pixel Strip light
1. Top quality Epistar chip 5050 SMD LEDs with built-in APA102 IC are used as light sources, each led is a pixel;
2. High frequency, flicker-free, PWM frequency 20Khz
3. Double-faced soft 10mm PCB with 200MP 3M back tape;
4. High brightness, more color chaging modes;
5. 3P JST SM connectors are used, which makes the strip very easy and convenient to use;
6. Both white and black PCB are available.
7. CE and RoHS
8. 3 years warranty.
It allows the pixel products to project a dazzling lighting effects and also assures endless possibilities. More higher frequency variations are as below to meet your specific requirements.
GL107S Built-IC 5050 smd, DC5V, PWM frequency 27Khz, 8bit, low voltage drop
GL108S Built-IC 5050 smd, DC5V, PWM frequency 28Khz, 16bit, low voltage drop
No flicker RGB Led digital strip Matrix 144Leds Addressable 5V APA102 Led Pixel Strip light features
1. Control IC APA102 inserted in 5050 RGB diode , individually addressable control . supporting numerous color-change effects .
2. It comes in 2 meters per reel with a 4Pin JST SM connector on both end and separated Power / Ground Wires
3. Flexible PCB material . Each LED/Pixel can be cut.
4. 5V low voltage input is a must,
5. 12mm width PCB , 0.25mm thickness with 3M tape back side for non-weatherproof version .
6. Date Pin and Clock Pin for signal transfer.
No flicker RGB Led digital strip Matrix 144Leds Addressable 5V APA102 Led Pixel Strip light Technic Data
Absolute Maximum Rating at TA=25℃
|
Parameter |
Symbol |
Absolute Maximum Rating |
Unit |
|
GLU-MFBN-ICRGB-60-WS2811-5V |
|||
|
Forward Voltage |
VF |
5 |
V |
|
Viewing Angle |
2θ 1/2 |
120 |
deg |
|
Operating Temperature |
Topr |
-25~+80 |
℃ |
|
Storage Temperature |
Tstg |
-40~+105 |
℃ |
Electrical / Optical Characteristics at TA=25℃
|
Part No. |
Color |
CCT/WLD |
IC type |
Working Voltage |
LED Qty. |
Grey levels |
Power |
|
GLU-MFBN-ICRGB-72-APA102-5V |
Red |
620-625nm |
WS2812B |
5VDC |
72 |
256*256*256 |
30W |
|
Green |
522-525nm |
||||||
|
Blue |
467-470nm |
Note: 1. Test Temperature (Ambient temperature: TA=25°℃)
2. All the technical parameters are based on per meter with max value.
No flicker RGB Led digital strip Matrix 144Leds Addressable 5V APA102 Led Pixel Strip light Connection
1. Signal wire:DC5V+, DAT, GND,.
2. DC+ and GND connect to power supplier; DAT, and GND connect to controller.
3.Relative Controller: SPI controller, DMX controller .
4. SPI Signal:LED pixels + LED Power Supply + LED Controller.
5. DMX Control:LED pixels + LED Power Supply + DMX Controller + DMX Decoder.
6. LED Power Supply:meanwell power supply and chuanglian power supply(waterproof/non- waterproof).

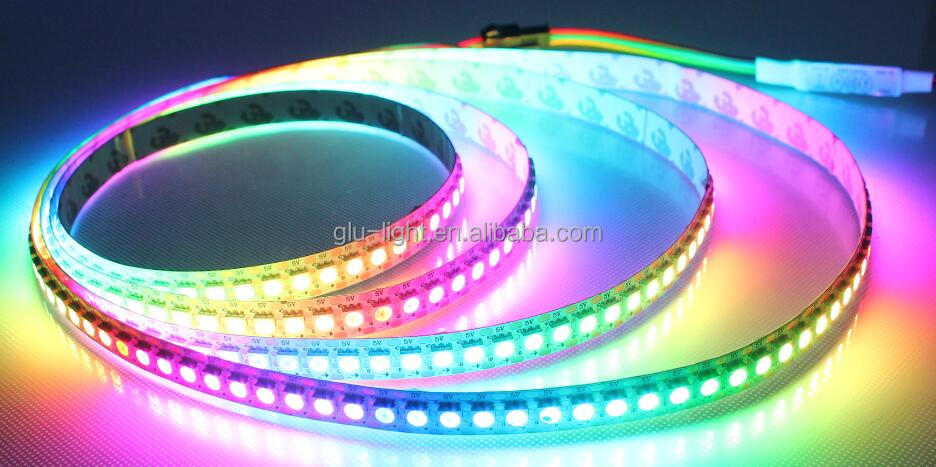

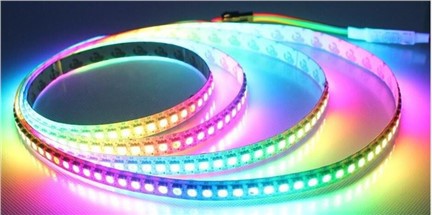

No flicker RGB Led digital strip Matrix 144Leds Addressable 5V APA102 Led Pixel Strip light product photo

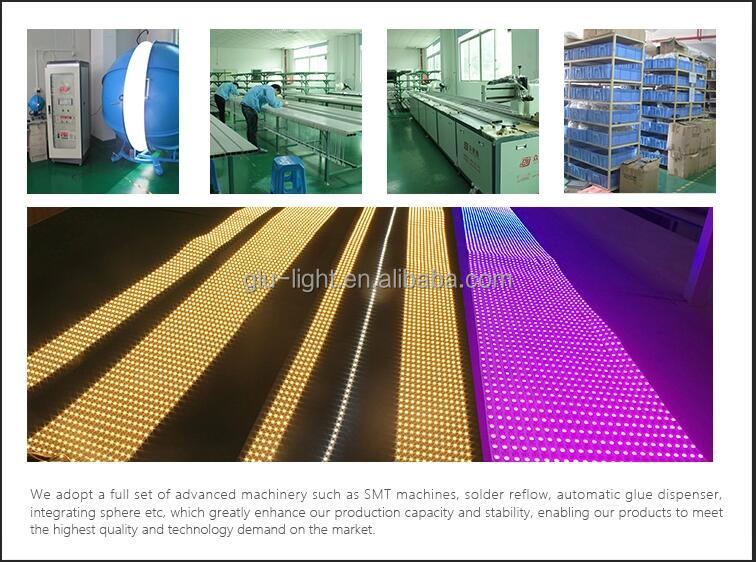

Routine QC inspection for No flicker RGB Led digital strip Matrix 144Leds Addressable 5V APA102 Led Pixel Strip light
No flicker RGB Led digital strip Matrix 144Leds Addressable 5V APA102 Led Pixel Strip light Application
1.Cove lighting
2.Architectural light for canopy ,corridor ,window, archway
3.Backlight for edge lighting for signage
4.DIY lights for home use
5.Path and contour marking
6.Decorative lights for holiday ,event ,show exhibition
Addressable 5050 RGB built-in IC APA102,WS2812B,SK9822, Led magic Strip, Led pixel lighting panel is also available for choice.

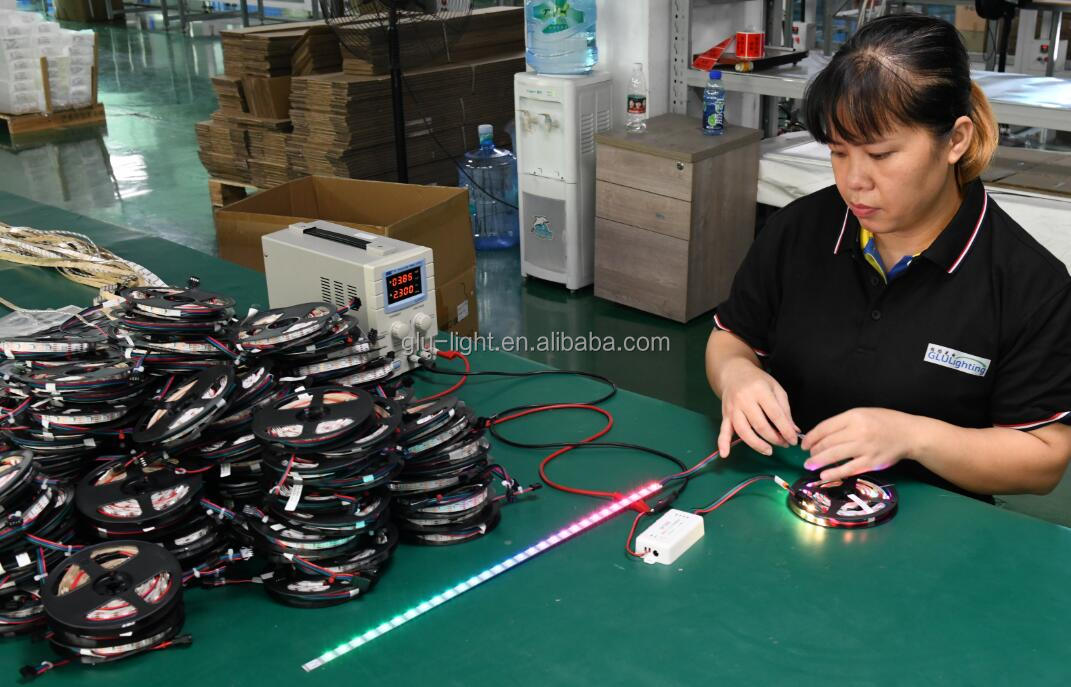

No flicker RGB Led digital strip Matrix 144Leds Addressable 5V APA102 Led Pixel Strip light in aging-test
Q1: Can I get samples from your factory?
A: Yes, sample is free, but the express charge is yours.
Q2: If products have some quality problem, how would you deal with?
A: We will responsible for all the quality problems within the warranty period.
Q3:What's the delivery time ?
A: 7 days for sample order, 12-15 days for formal order, and 15-20 days for customized order.
Q4. What is the standard of package?
A. Export standard package or special package according to customer requirement.
Q5. Do you accept OEM business?
A. Yes, we are OEM supplier. Customizing features are our specialties.
Q6. what kind of certificate you have ?
A .We have UL&CE&RoHS.
Q7: Do you have MOQ requirement for your product?
For sample order, no MOQ. But for formal order, MOQ is 100m for led strip, and 20pcs for led panel.
Q8: Is it OK to brand the PCB for us?
It is OK if the order is above 500m.
Q9: How do you send the goods and how does it takes to arrive?
We usually ship by Express couriers for small order, it takes around 4-6 days. For bulk order, we ship by air( around 8-10 days) or by sea( around 20-30 days).
Q;10 How to deal with faulty?
Our products are produced under a strict quality control system, and the failure rate is less than 0.2%.
For the failure within the warranty period, we send replacement together with the next order for small quantities. For defective batch order, we will collect it back and repair them and resend the goods to you, or discuss about the most workable solution based on the real situation.
