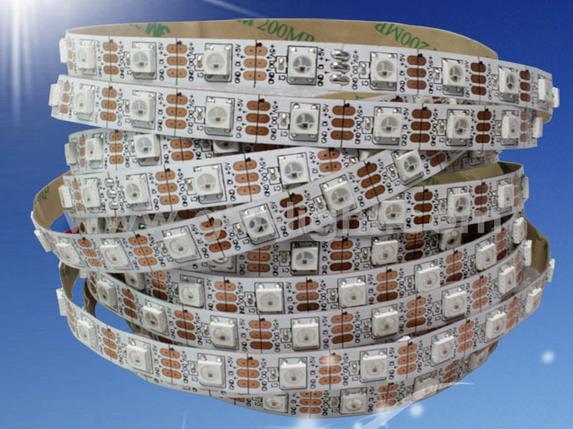

China Factory Price DC5V WS2812B Digital 5050 Built-in IC Addressable Led Strip With 60 Leds/m IP68 Waterproof
Description
Technical Parameters
China factory Price DC5V WS2812B Digital 5050 Built-in IC addressable led strip with 60 leds/m IP68 Waterproof
1. Top quality Epistar chip 5050 SMD LEDs with built-in IC are used as light sources, each led is a pixel;
2. Double-faced soft 10mm PCB with 200MP 3M back tape;
3. High brightness, more color chaging modes;
4. 3P JST SM connectors are used, which makes the strip very easy and convenient to use;
5. Both white and black PCB are available.
6. CE and RoHS
7. 3 years warranty.
Clearence In stock IP68 outdoor waterproof DC5V SK6812/ws2812B digital RGB led strip, 60leds/m, Silicone tube with injected silicone glue, high quality, UV resistant, 2 year warranty, bottom low price, don't miss it.
China factory Price DC5V WS2812B Digital 5050 Built-in IC addressable led strip with 60 leds/m IP68 Waterproof
1. Ws2812/WS2812B led digital strip,60leds/m,5m/reel ,DC5V input,
2. 5050 RGB SMD with built-in WS2812B IC as light source.
3. Each LED is a pixel, each led is individually address controlled.
4. You can design any customized lighting effects you want.
China factory Price DC5V WS2812B Digital 5050 Built-in IC addressable led strip with 60 leds/m IP68 Waterproof
Absolute Maximum Rating at TA=25℃
|
Parameter |
Symbol |
Absolute Maximum Rating |
Unit |
|
GLU-MFBN-ICRGB-60-WS2811-5V |
|||
|
Forward Voltage |
VF |
5 |
V |
|
Viewing Angle |
2θ 1/2 |
120 |
deg |
|
Operating Temperature |
Topr |
-25~+80 |
℃ |
|
Storage Temperature |
Tstg |
-40~+105 |
℃ |
Electrical / Optical Characteristics at TA=25℃
|
Part No. |
Color |
CCT/WLD |
IC type |
Working Voltage |
LED Qty. |
Grey levels |
Power |
|
GLU-MFBN-ICRGB-60-WS2811-5V |
Red |
620-625nm |
WS2812B |
5VDC |
60 |
256*256*256 |
18W |
|
Green |
522-525nm |
||||||
|
Blue |
467-470nm |
China factory Price DC5V WS2812B Digital 5050 Built-in IC addressable led strip with 60 leds/m IP68 Waterproof

China factory Price DC5V WS2812B Digital 5050 Built-in IC addressable led strip with 60 leds/m IP68 Waterproof

GLU Lighting, established in 2011, is one of the leading china wholesle clearence 60led ws2812b magic led strip bottom price manufacturers and suppliers in China. Offering you customized service, we warmly welcome you to buy the high quality and beautiful china wholesle clearence 60led ws2812b magic led strip bottom price from our factory.
China factory Price DC5V WS2812B Digital 5050 Built-in IC addressable led strip with 60 leds/m IP68 Waterproof
1.Cove lighting
2.Architectural light for canopy ,corridor ,window, archway
3.Backlight for edge lighting for signage
4.DIY lights for home use
5.Path and contour marking
6.Decorative lights for holiday ,event ,show exhibition

China supplier in stock clearence high quality 5V ws2812b led strip recommendation
GLU-MC3PT-RF8K enables more than 80 programs which are various color changing and almost magic effect. Try it out,it is fun!

GLU Light Digital led strip series:
1.Builtin IC WS2812B led strip are available in 30/60/144 leds/m, Working voltage:DC5V
2.Addressable WS2811 flexible led strip, 30/60/144 leds/m, working voltage:DC12V
3.APA102 Built-in IC Flexble led strip, 30/60/144 leds/m, Working voltage:DC5V
WS2812B Digital led strip with Black PCB


WS2812B LED Strip with 120 leds/m

GLU Light 2017 hot new products below:

--3528 smd led: 30leds/m, 60leds/m, 120leds/m, 180leds/m, 240leds/m(single row and double row);
--5050 smd led: 30leds/m, 60leds/m, 90leds/m, 120leds/m rgb 5050 led strip (single row)
--2835 smd led: 30leds/m, 60leds/m, 84leds/m, 120leds/m led strip (single row) Samsung 2835 led strip is available.
--5630 smd led: 30leds/m, 60leds/m, 120leds/m (double row), Samsung 5630 is available
--RGBW led strip: 4 in one(60/72/84/96leds/m)
5050 single RGB+ 5050 single W/WW(60/72/96/120/144leds/m)
--CCT adjustable led strip: 3528 120/240 leds/m, 5050 60leds/m, 2835 60/120 leds/m; 3014 240leds/m; 5630 60led/m and 120 leds/m. side view 3014 120leds/m bi color led strip and so on.
--digital strips WS2811,WS2812,SK6812,APA102 digital led strip etc.
--2835/5050 Neon flexible led strips
GLU light factory


CE/ROHS WS2812B Digital Led Strip
