1. High CRI: Superhigh Ra95/Ra97. R1-R15 all value above 90.
2. 3 year warranty
3. CE, RoHS/ UL
4. 0.2W ultrabright 2835 SMD with Epistar chip as light source
5. Double layer PCB with ± 2 OZ Cu enables sufficient heat dissipation
6. Bi color CCT changable from 2200K to 6500K.
High CRI led strip will show an object true pure and vibrant color.
Here is a visual representation of the difference between low and high CRI :
This product was initially designed to be used for professional photographers and the film industry/TV/ studio . Now these LED strip lights are commonly installed in a wide variety of applications such as: Photography lighting/ Cinematography lighting/ Product display lighting/ Art lighting etc.
china OEM led strip supplier 4OZ CRI 97 high R values R1-R15＞ 90 bi color 2835 led strip
1. Great light source: Super 0.2W 2835 SMD LED strip light, top quality Epistar chip 2835 SMD LEDs with high lumen LEDs 22-24lm.
2. Double-faced soft FPC with thicker copper layer.
3. Flexible in length suitable for different applications.
4. Both white and copper PCB available
5. Different colors for choice for different applications: cold white, natural white, warm white for different
applications.
6. Environmental friendly: complied with CE and RoHS standard without harmful substance, such as lead or Mercury.
7. 3 Years warranty.
China factory high cri high R value ＞90 Ra97 bi color CCT tunable 2835 led strip
Absolute Maximum Rating at TA=25°C
|
Parameter |
Symbol |
Absolute Maximum Rating |
Unit |
|
Forward Current |
IF |
425 |
mA |
|
Forward Voltage |
VF |
DC24V |
V |
|
Electrostatic discharge |
ESD |
400 |
V |
|
Operating Temperature |
Topr |
-25~+60 |
°C |
|
Storage Temperature |
Tstg |
-40~+80 |
°C |
Electrical / Optical Characteristics at TA=25°C
|
Part No. |
Color |
CCT/WLD |
Lumen Flux |
Current |
Power |
View Angle |
|
FMN-W-60 |
White |
6000-7000K |
1235lm |
0.425A |
10.2W |
120° |
|
FMN-WW-60 |
Warm White |
2800-3200k |
1120lm |
Note: 1. The lumen flux tolerance is ±5%;
2. The data above is based on 1 meters;
3. Test Temperature (Ambient temperature: TA=25°C)

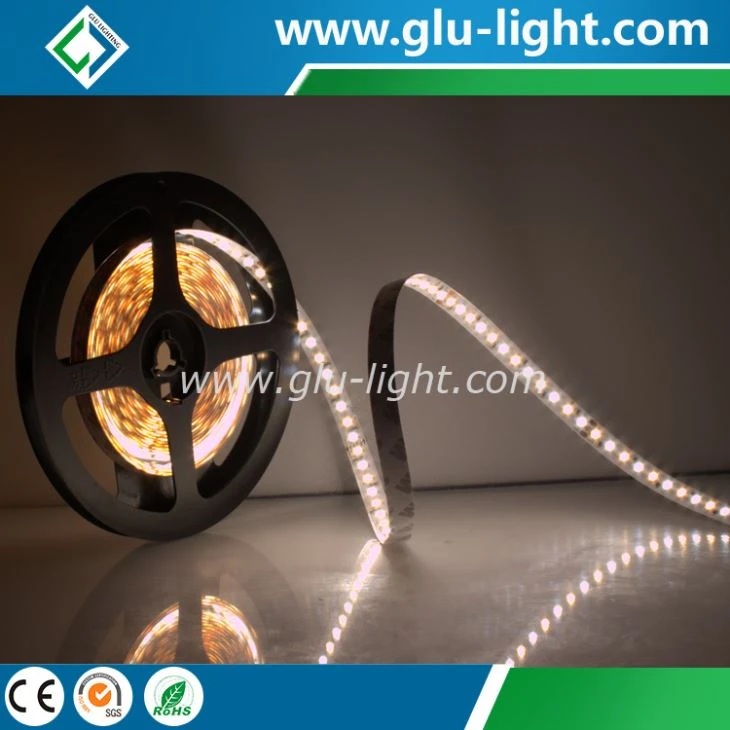

China custom length high CRI Ra97 high R values ＞90 bi color 2835 CCT led strip for film
1.Photography & Filming Lighting
2. High-end indoor lightingand auxiliary lighting
3. Architectural decorativeLighting
4. Jewelry Lighting
5. Showcase & Counter Lighting
6.Museumshowcaselighting and auxiliary lighting
7.Textile printing and dyeing Lighting
Customized 24V 4OZ 120led/m CRI 97 high R values bi color CCT dimmable 2835 led strip connector:
China manufacturer Ra97 with high R value R1-R15 ＞90 CCT hybrid 2835 bi color led strip Pictures
Glu Light at lighting fairs:
Our Featured products:
GLU Lighting Bi-color Led Strip Series:
1. 2835 Bi-color Flex led strip, 60/120 leds per meter( W+WW), 120 leds/m ( 2-in-1)
2. 3014 Bi-color led strip with 240 leds/m, 3014 Sideview W+WW Bi-color with 120 leds/m
3. 5730 Bi-color led strip with 120 leds/m, 5730 Bi-color with 60 leds/m ( 2-in-1)
4. 3527 Bi-color led strip with 120 leds/m ( 2-in-1)
5. 2216 Bi-color led strip with 560 leds/m ( Double row)
