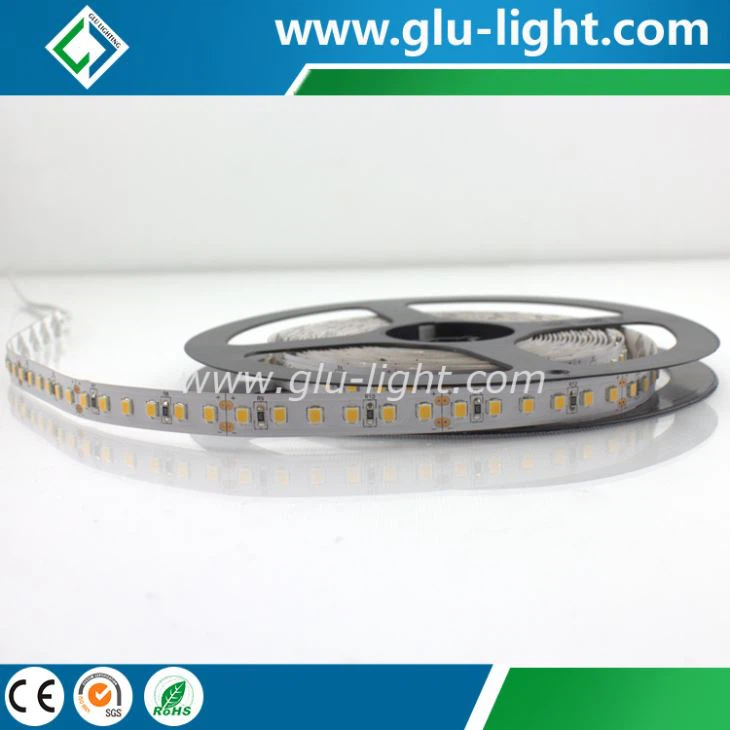

High lumens 2835 LED Strip 6000K
Express LED Strip 2835 LED Flexible Rope Light

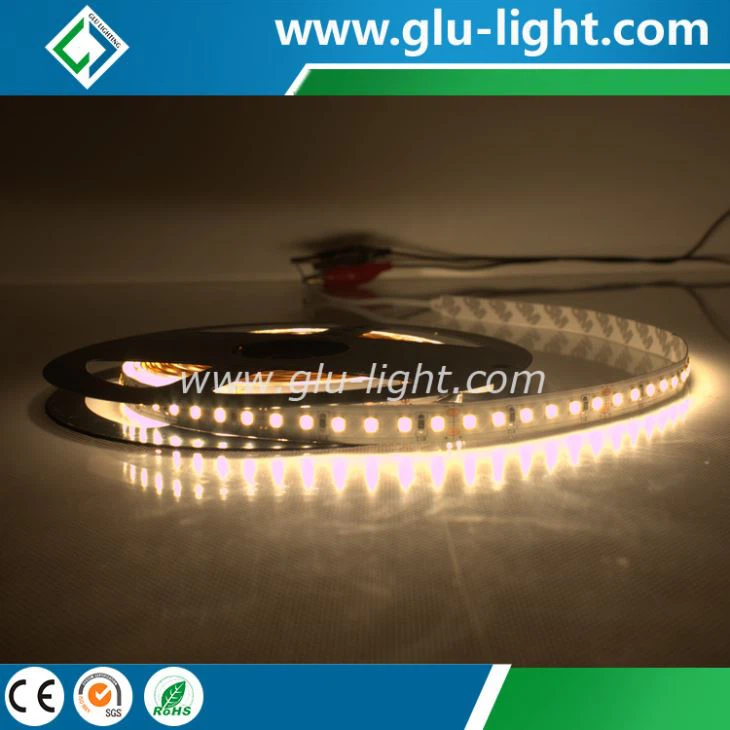

2835 smd waterproof led light strips
China factory 2835 samsung led strip light

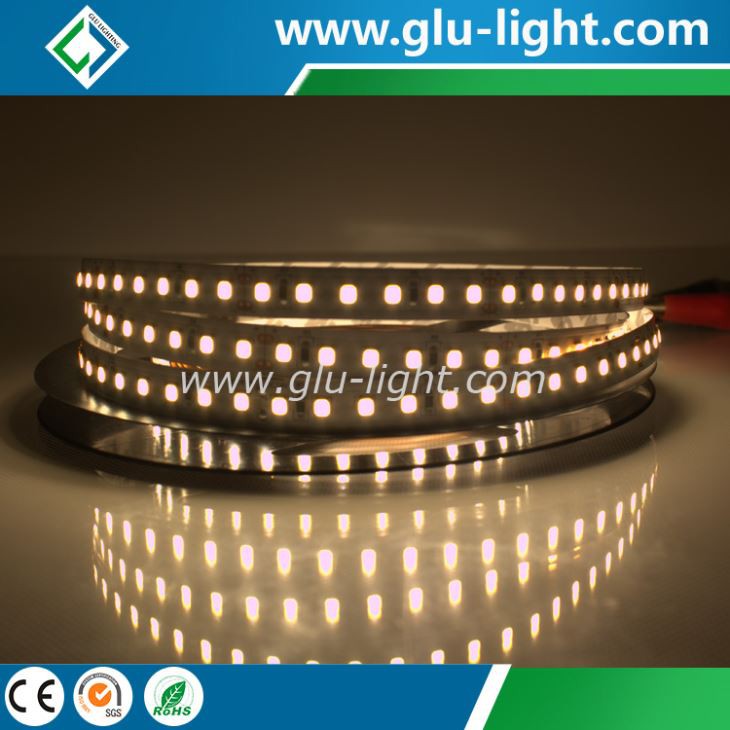

2835 smd led strip 120leds/m W/WW color
Cool white 6500K 2835 led ribbon light
2835 High Bright White color LED Strip
China Factory Price 2835 Led Flxible Strip 4 OZ PCB 120 Leds/m
Description
Technical Parameters
China factory price 2835 led Flexible Strip 4 OZ PCB 120 leds/m
1. Great light source: Super 0.2W 2835 SMD LED strip light, top quality Epistar chip 2835 SMD LEDs with high lumen LEDs 22-24lm.
2. Double-faced soft FPC with thicker copper layer.
3. Flexible in length suitable for different applications.
4. Both white and copper PCB available
5. Different colors for choice for different applications: cold white, natural white, warm white for different
applications.
6. Environmental friendly: complied with CE and RoHS standard without harmful substance, such as lead or Mercury etc.
7. 3 Years warranty.
China factory price 2835 led Flexible Strip 4 OZ PCB 120 leds/m
Absolute Maximum Rating at TA=25°C
|
Parameter |
Symbol |
Absolute Maximum Rating |
Unit |
|
Forward Current |
IF |
850 |
mA |
|
Forward Voltage |
VF |
DC24V |
V |
|
Electrostatic discharge |
ESD |
400 |
V |
|
Operating Temperature |
Topr |
-25~+60 |
°C |
|
Storage Temperature |
Tstg |
-40~+80 |
°C |
China factory price 2835 led Flexible Strip 4 OZ PCB 120 leds/m
Electrical / Optical Characteristics at TA=25°C
|
Part No. |
Color |
CCT/WLD |
Lumen Flux |
Current |
Power |
View Angle |
|
FMN-W-120 |
White |
6000-7000K |
2470lm |
0.85A |
20.4W |
120° |
|
FMN-WW-120 |
Warm White |
2800-3200k |
2240lm |
Note: 1. The lumen flux tolerance is ±5%;
2. The data above is based on 1 meters;
3. Test Temperature (Ambient temperature: TA=25°C)
China factory price 2835 led Flexible Strip 4 OZ PCB 120 leds/m Application
For Flexible Strips, they can be used as edge light, cove light, furniture light, sign light, backlighting for AdWords, lighting box etc., and widely used as decorative lighting for building outline, sidestep, exhibition stand, hotel, KTV, club etc. And also DIY Light for household use.
GLU Lighting, established in 2011, is one of the leading dc12v/24v 2835 led lighting, 2835 led strip with 84 leds/m and 120 leds/m 4 oz double face pcb manufacturers and suppliers in China. Offering you customized service, we warmly welcome you to buy the high quality and beautiful dc12v/24v 2835 led lighting, 2835 led strip with 84 leds/m and 120 leds/m 4 oz double face pcb from our factory.
2017 GLU light offer a wide range of Flex led strip for you:
--3528 smd led: 30leds/m, 60leds/m, 120leds/m, 180leds/m, 240leds/m(single row and double row);
--5050 smd led: 30leds/m, 60leds/m, 90leds/m, 120leds/m(Single row)
-2835 smd led: 30leds/m, 60leds/m, 84leds/m,120leds/m and 168 leds/m(Double row) Samsung 2835 led strip is available
--5630 smd led: 60leds/m, 120leds/m (double row), Samsung 5630 is available
--RGBW/Amber led strip: 4 in one(60/72/84/96leds/m)
CCT adjustable led strip: 3528 120leds/m, 5050 60leds/m, 2835 60/120 leds/m; 3014 240leds/m; 5630 60led/m and 120 leds/m. side view 3014 120leds/m bi color led strip and so on.
--digital strips WS2811,WS2812,SK6812,APA102 etc.
Fully product inspection to make sure each product is perfect before shipment.
Welcome trying our sample to start.
Warmly welcome you to visit our factory at any time!
Hot Tags: china factory price 2835 led flexible strip 4 oz pcb 120 leds/m, China, manufacturers, suppliers, factory, customized
