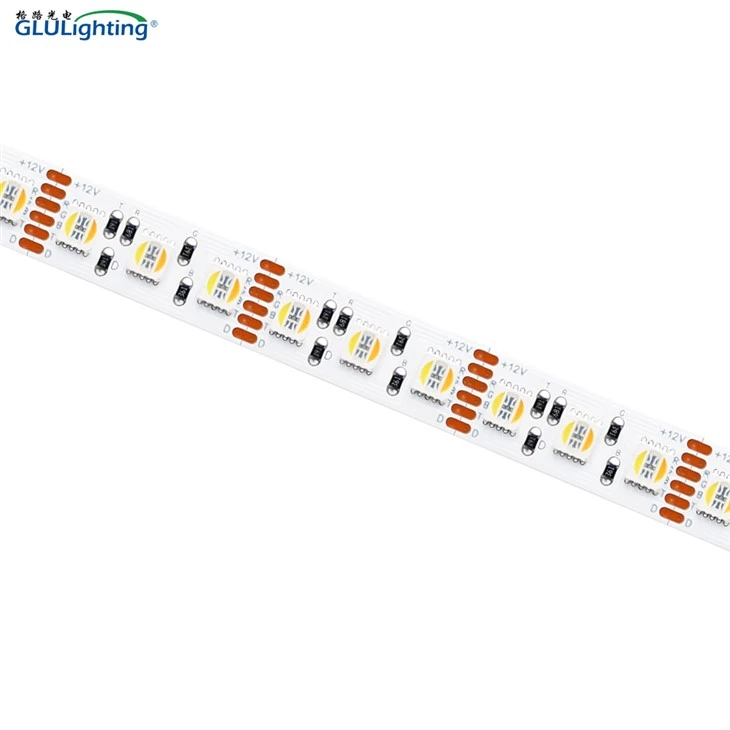

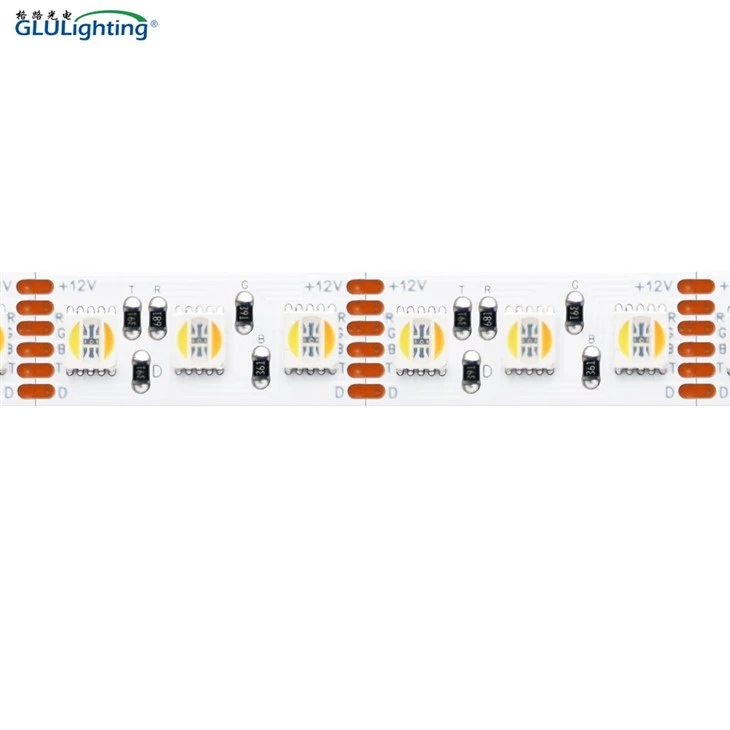

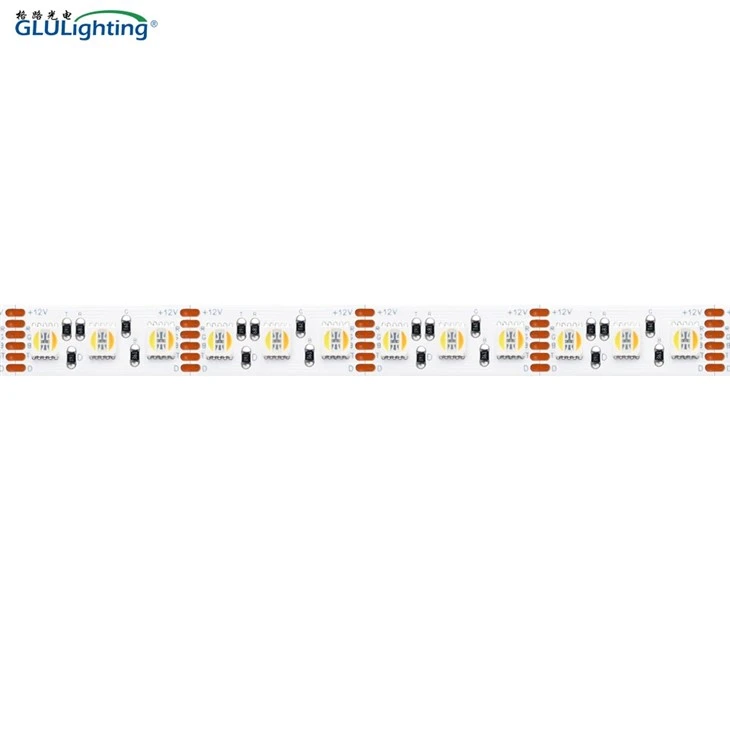

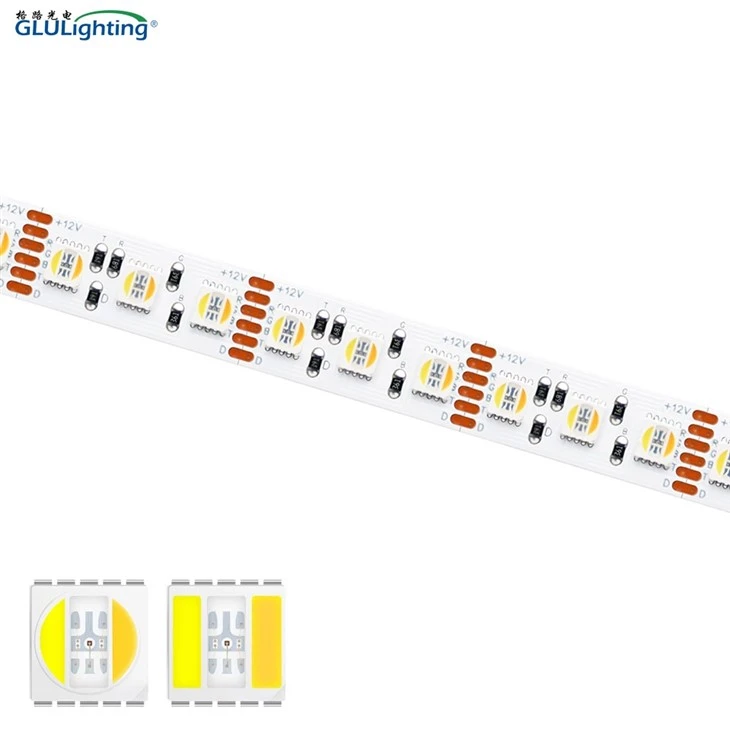

High Density RGB CCT 5-in-1 Flex Strip 96leds DC12V
● High density with 96leds per meter;
● DC12V with 12mm width PCB design;
● High brightness;
● High CRI for tungsten and Daylight with RA95+, TLCI>95;
● RGB+2800k+6500K for standard;
● UL/CUL Listed with file number E495503.
● CE Certificated and RoHS Compliant.
Description
Technical Parameters
GLU Lighting, established in 2011, is one of the leading high density rgb cct 5-in-1 flex strip 96leds dc12v manufacturers and suppliers in China. Offering you customized service, we warmly welcome you to buy the high quality and beautiful high density rgb cct 5-in-1 flex strip 96leds dc12v from our factory.
High Density RGB CCT 5-in-1 Flex Strip 96leds DC12V
For RGB CCT strip besides RGB+ Tungsten+Daylight single led version, we also offer 5050 RGBTD 5-IN-1 version with high density for 96leds/m , for which with 34W/meter, cinema-quality 95+ CRI hybrid with the ability to add in crisp RGB color accents. The ribbon is 1 row of cinema-quality emitters and runs on 12-volt, 24-volt, and 48-volt in 12mm width PCB.
Key Feature
◆ RGB + 2700k + 6500k in One Diode for standard CCT – Provides vibrant colour mixing and full-spectrum white light.
◆ Other CCT available for customized, tungsten from 2000K-3200K, Daylight from 5600K-7000K.
◆ High-CRI White Light (95+ CRI, R9 85+) – Ensures exceptional colour accuracy and natural-looking illumination.
◆ Closest Cut Length for12V RGBTD(3.1cm) – Maximizes installation precision and customization.
◆ Durable & Reliable – Optimized for professional-grade applications.
◆ Multiple Protection Ratings – Available in IP65 (weatherproof) and IP68 (waterproof) versions.
Product Details
Why choose us?
More than 13 years experience in LED
We offer tiop quality LED strip products
We offer OEM & ODM services
Self-design & self-delvelopment
We have strict quality control for our products
We provide fast delivery for our products
Spectrum & Wavelength
5050 RGB CCT 5-IN-1 LED STRIP
Red 620nm
Green 520.9nm
Blue 470.4nm

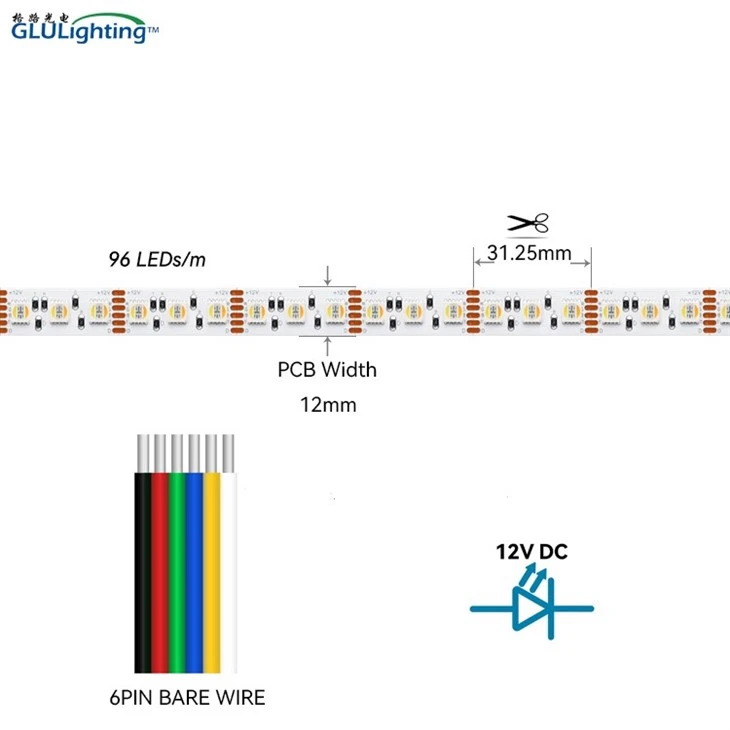

pRODUCTS DIMENSION
Products packing
For our flex ribbon, we are packed with plastic or paper reels, and then packed with ESD bag, for the ESD bag, slivery color for standard, and also we offer black color, white color or any other can be customized, and finally with 30 reels in a carton.
Our Factory
Quality Control
Product Certifications
Exhibitions
Products Appliactions
For High Density RGB CCT 5-in-1 Flex Strip 96leds DC12V, which are designed to be used for film, television, and wherever a desire for high quality lighting is required. With richable color available and they are fantastic in tight spaces and for shooting on location.Extremely vrsatile, light-wight, color-correct, and economical make these RGB CCT color flexible LED Strips a hit with cinematographers and DOPs alike.
Thus for the whole strips series are suitable and widely usde for film, TV, studio, photographic studio, news studio, liveing shows, commercial shooting etc. and also a best choice for high-end projects.
Hot Tags: high density rgb cct 5-in-1 flex strip 96leds dc12v, China, manufacturers, suppliers, factory, customized
Products Parameter
| Product Name | LED Ribbon ™ Cinema Chroma RGBTD 5-in-1 Series | |
| Product Code | GLUA12CV012L0200FP03W96C3 | |
| Parr Number | GLU-S5L0200FP96-12V | |
| Color | RGBTD | |
| LED Qty./M | 96LEDs | |
| Working Voltage |
12 VDC Typ.(8-13 VDC Constant Voltage) |
|
| Max. Current per meter | 2.88A | |
| Max. Power per meter | 34.56W | |
| Current for each color per meter | R/G/B/T/D 0.58A | |
| Power for each color per meter | R/G/B/T/D 6.91W | |
| Wavelength Colors |
R 620-625nm G 520-525nm B 460-465nm |
|
| CCT Whites | Tungsten 2800K(+/-100K)/Daylight 6500K(+/-200K) | |
| View Angle | 120° | |
| Lumen(Whites) per Meter | 420(Tungsten)/500(Daylight) | |
| Lumen(Colors) per Meter | 260(Red)/610(Green)/170(Blue) | |
| CRI | 95+(Tungsten), 95+(Daylight) | |
| TLCI | 95+(Tungsten), 95+(Daylight) | |
| Cuttable or not | Yes | |
| Max. Length (UL/CUL Standard) | 2000mm(78.74in./6.56ft) | |
| Max. Length (CE Standard) | 5000mm(196.85in./16.4ft) | |
| Mini Cuttable Segment | 31.25mm(1.23in.) | |
| Cuttable Segment per meter | 32 | |
| LEDs per Cut Segment | 3 | |
| Total LEDs per Roll |
192pcs(UL/CUL Standard), 480pcs(CE Standard) |
|
| PCB Width | 12mm(0.47 in.) | |
| Strip overall Thickness | 2.1mm(0.083 in.) | |
| Copper Thickness | 3oz(1oz+2oz) | |
| LED Specing | 10.42mm(0.41in.) Center to Center | |
| Connector | 6 pin Bared Cable | |
| Mounting | 3M 9080HL(Others optional) | |
| Cerriffcation |
UL/CUL( US/Canada), CE Compliant (Europe) |
|
Note: 1. The tolerance of lumen fux and power is ±10% due to difference for test equipment.
2. The parameters may change without prior notice.
