High CRI 95+ TLCI 98+ RGBCCT LED Strip, 12V/24V Cinema Grade Light For Professional Photography & Film Production,216leds Per Meter, 1led Short Cutting Unit.

GLU Lighting, established in 2011, is one of the leading high cri 95+ tlci 98+ rgbcct led strip, 12v/24v cinema grade light for professional photography & film production,216leds per meter, 1led short cutting unit. manufacturers and suppliers in China. Offering you customized service, we warmly welcome you to buy the high quality and beautiful high cri 95+ tlci 98+ rgbcct led strip, 12v/24v cinema grade light for professional photography & film production,216leds per meter, 1led short cutting unit. from our factory.

Product Descriptions

Master your lighting with high CRI/TLCI precision. Our High CRI 95+ TLCI 98+  Cinema grade RGBCCT LED Strip blends vibrant RGB with tunable whites for flawless color. Featuring ultra-short cutting units, it overcomes standard strip limitations to fit the tightest cinema spaces. Engineered for professional cinematography, it delivers elite accuracy and unmatched flexibility. Perfect color, no compromises.

High CRI 95+ TLCI 98+ RGBCCT LED Strip, 12V/24V Cinema Grade Light for Professional Photography & Film Production,216leds per meter, 1led Short Cutting Unit Main Feature





01



Both 12V & 24V Available

High CRI 95+ TLCI 98+ RGBCCT LED Strip comes with both DC12V & DC24V.









02



Short Cuttable

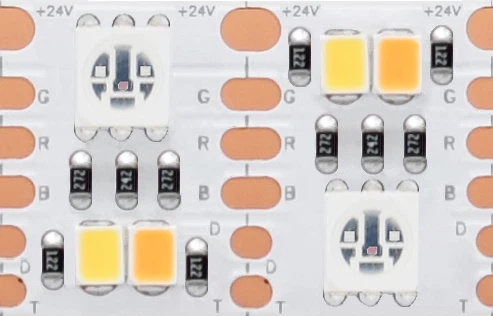

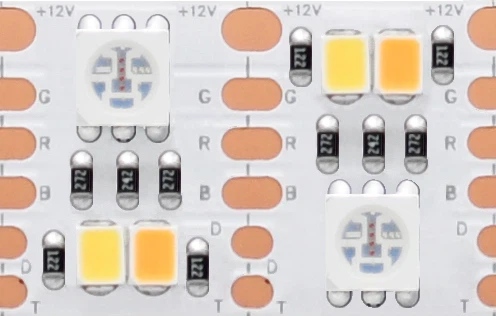

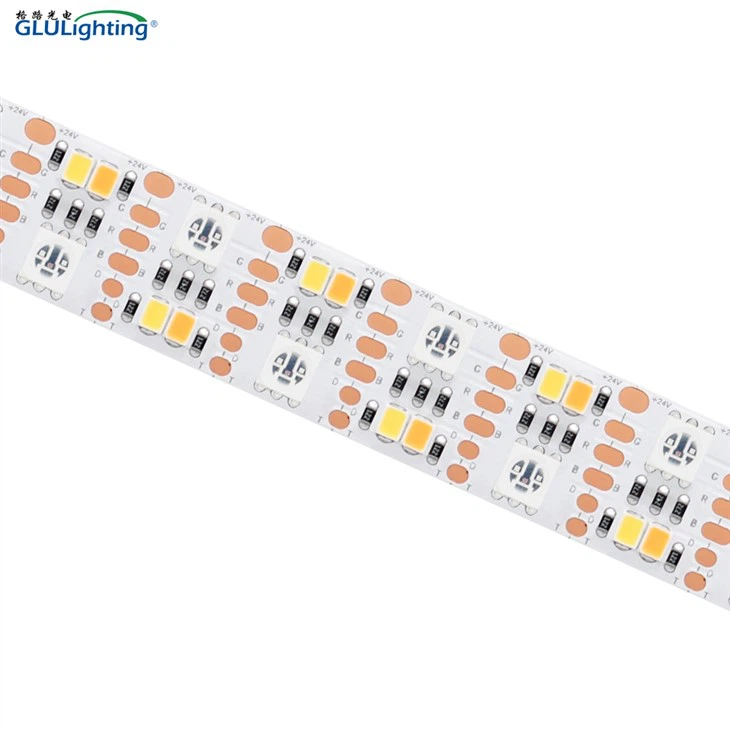

This High CRI 95+ TLCI 98+ Cinema grade RGBCCT LED Strip both 12V and 24V are designed with short cuttable, 1RGB LED+1 2835 tungsten LED+1 2835 daylight LED cuttable.



03



High density

For the Cinema greade High CRI 95+ TLCI 98+ Cinema grade RGBCCT LED Strip with high density, with 216leds/meter, RGB/Tungsten/Daylight each 72leds/m.



Cinema grade Lighting



Cinema grade R/G/B and Tungsten/Daylight

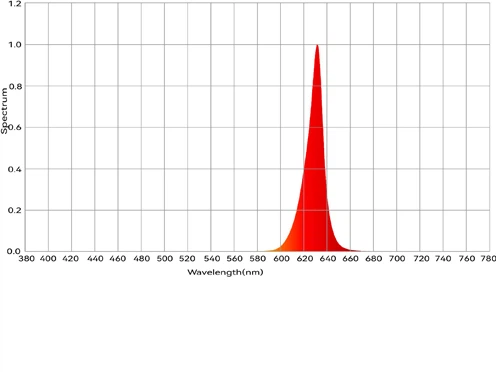

Red(WLD622.8nm)

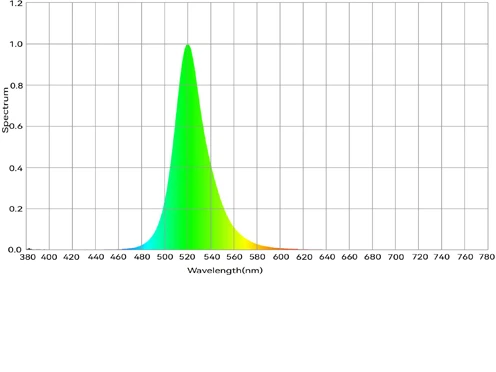

Green(WLD526.8nm)

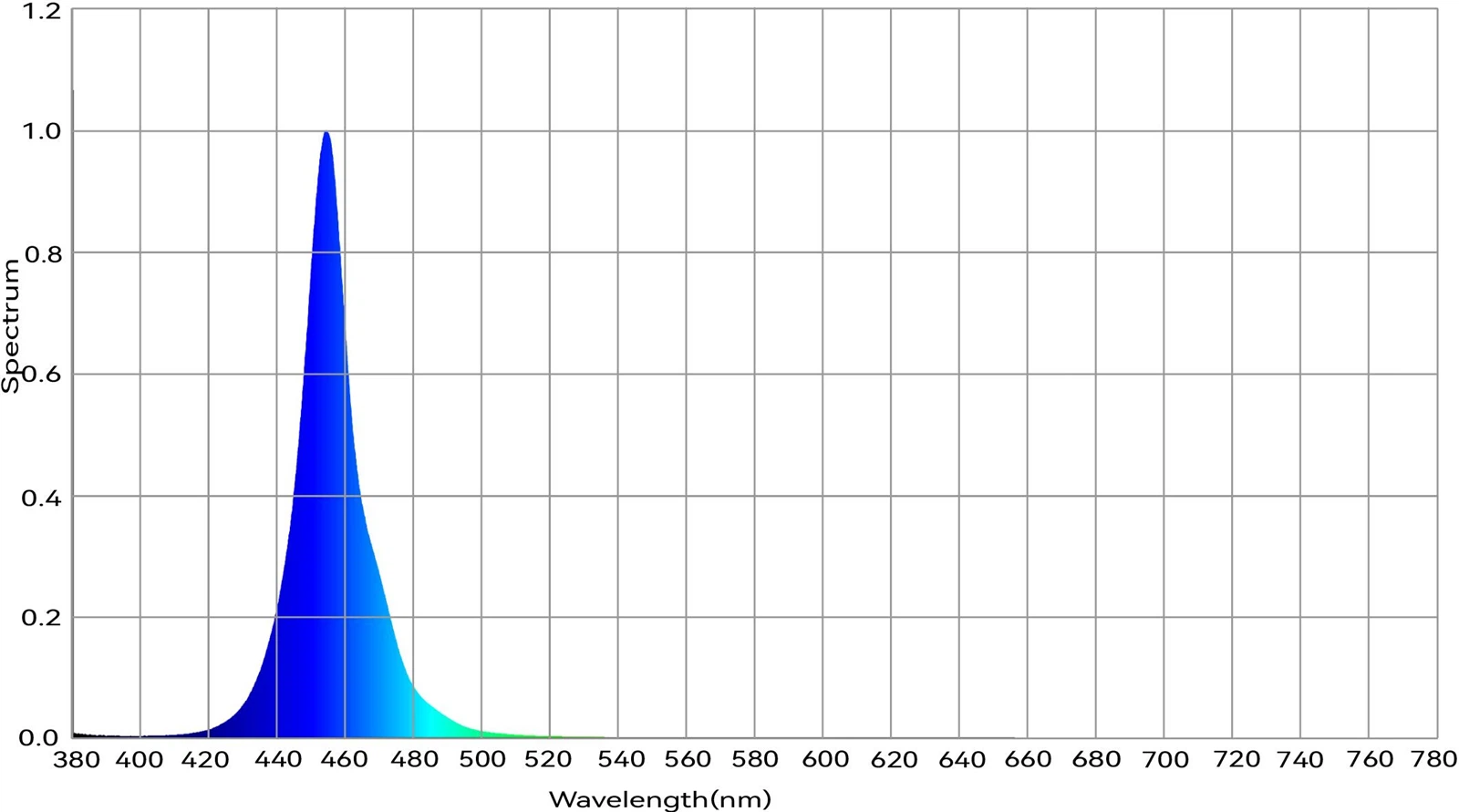

Blue(WLD458.7nm)

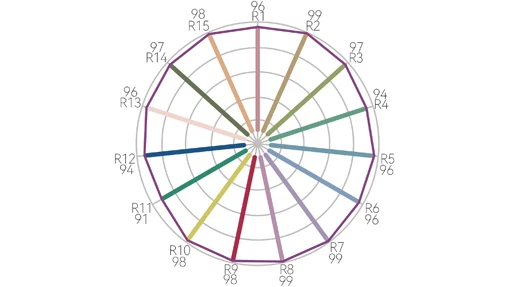

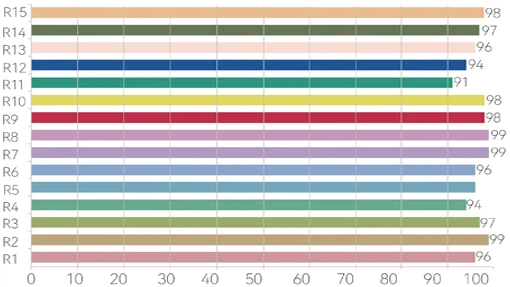

CCT 2738K Ra=97

Rf=96, Rg=103, CQS=98 TLCI=98.24

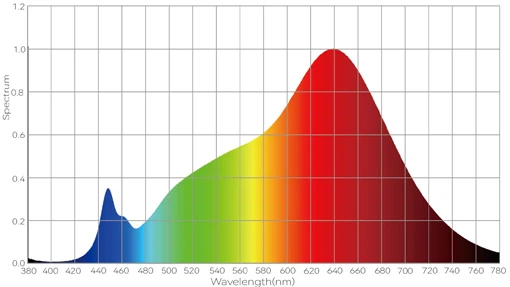

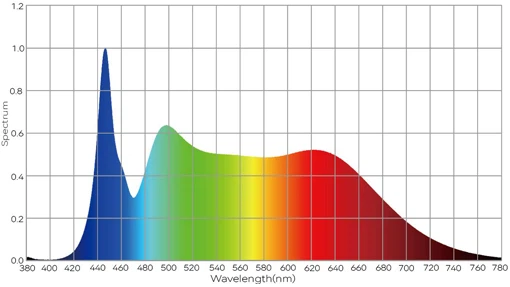

Tungsten Spectrum & Wavelength

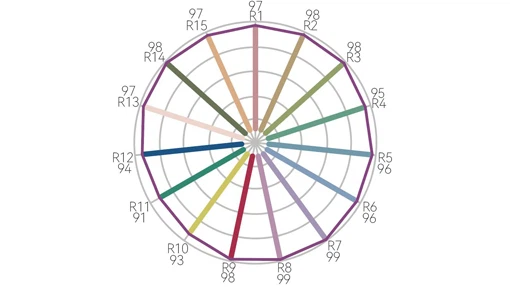

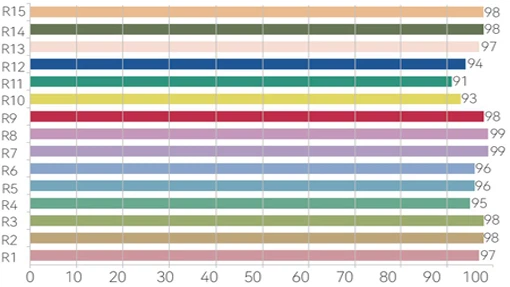

CCT 5437K Ra=97.3

Rf=96, Rg=102, CQS=97 TLCI=97.7

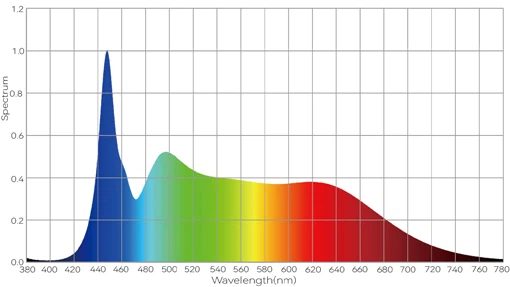

Daylight Spectrum & Wavelength

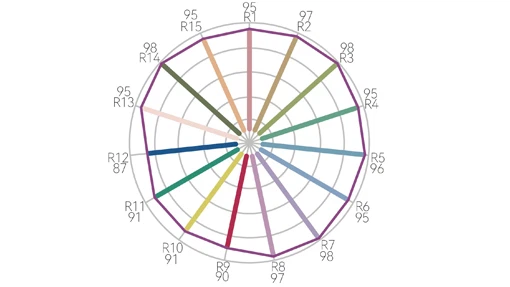

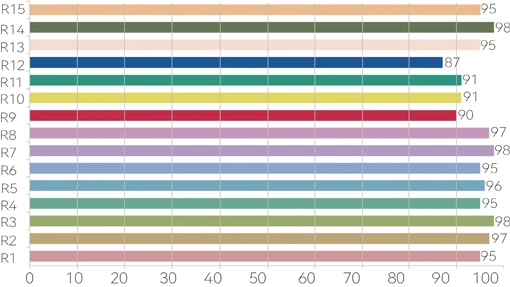

CCT 6567K Ra=96.4

Rf=96, Rg=102, CQS=98 TLCI=98.64

Daylight Spectrum & Wavelength

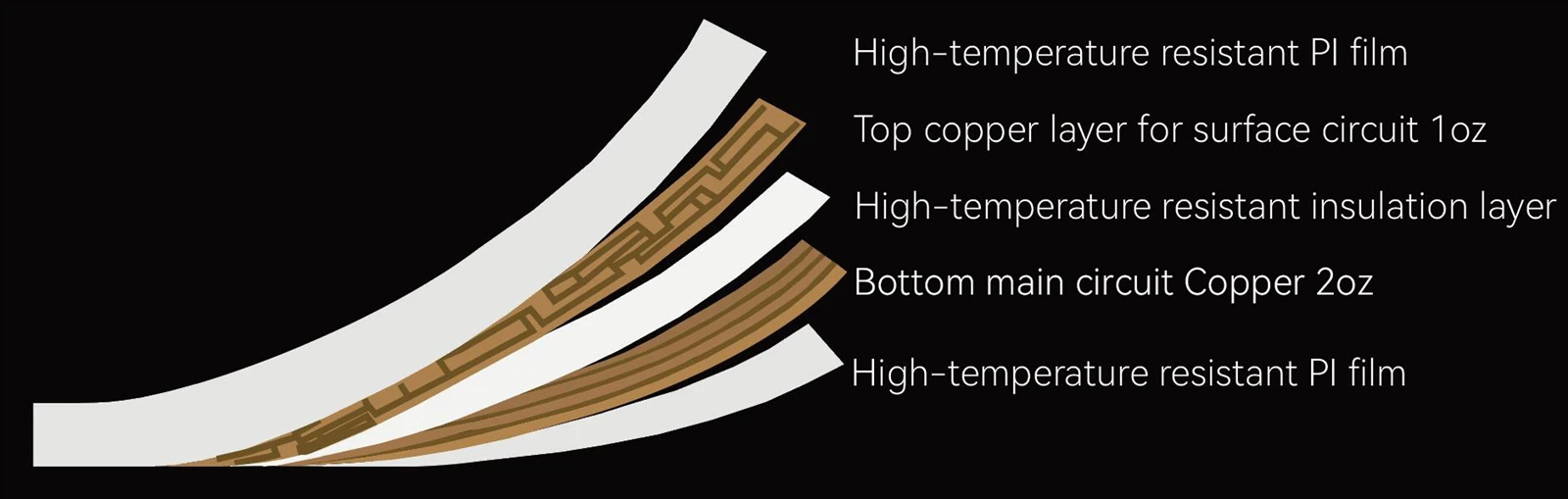

For our RGBCCT led ribbon we use high quality flex PCB, on bottom and bottom layer we use high-temperature resistant PI film, which for white color as standard, and also other colors like black/yellow and others available. Between on top copper layer for surface circuit we use 1oz cooper and on bottom main curcuit cooper use 2oz copper for better heat dissipation and better conductivity. Between 2 layers copper we use high temperature ristant insulation layer to avoid short curcuit problem because of heat.

Why Choose our products?



We have over 13 years experience in professional flim lighting.

We are high end led strip and flex mat manufacturer.

We have our own team for self R&D specially of LED lighting for film.

We offer OEM and ODM services!

We have strict quality control for all our products.

To make sure the fast delivery we have safty stock for the PCB of our popular products.

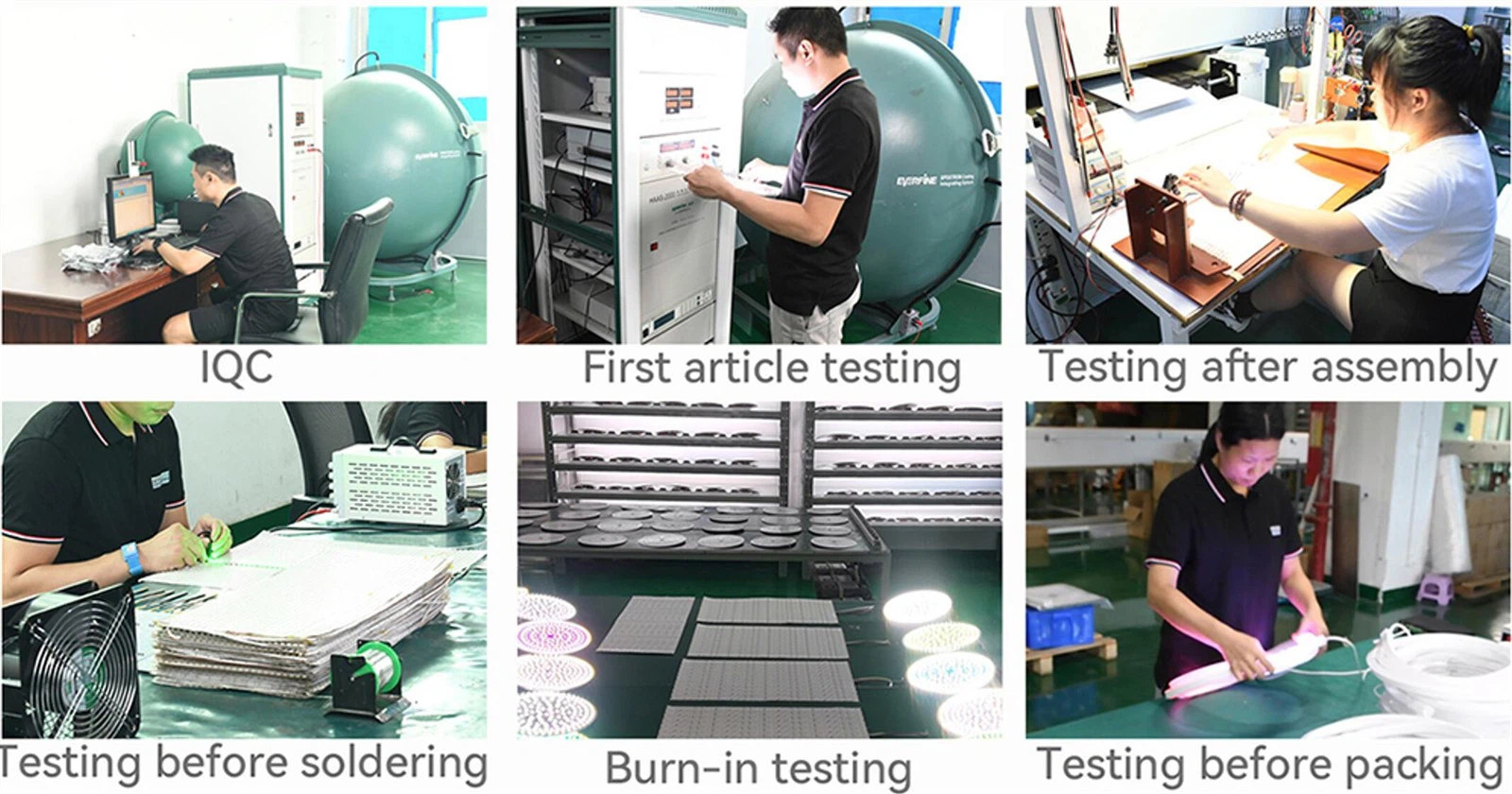

How our strip produced?

⒈



self design

We have our own design team who works in led industry for many years, and all have a rich experience for LED strip and flex panels and related products.

⒉

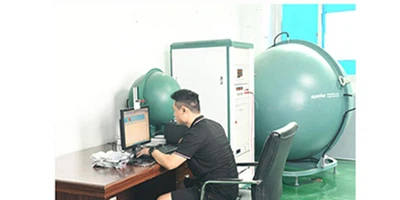

Raw materials inspection

We will have a restic inspection for all our raw materials to make sure all the raw material meet our design and production requirements.

⒊

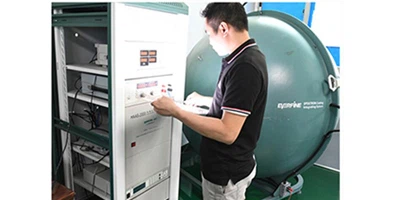

First artical testing

To make sure the products meet the requirement of different parameters and powers requirement, we will make a first artical to test all parameters and use the suitable resisotros and components to make sure the CRI, WATTAGE meet the production requirement.

⒋

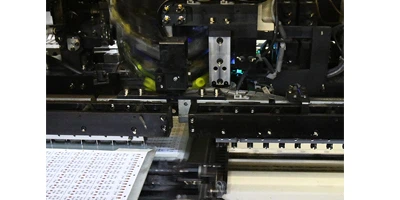

SMT ASSEMBLY

Once first artical confirmed, we will start make our products assemblied by SMT machine.

⒌

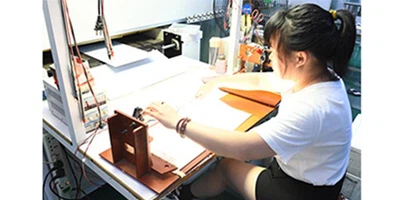

Test after assembly

After assembly, we will have all semi-finished products visual estimation and power on testing to see if the tin is plump and if they are worked normally.

⒍

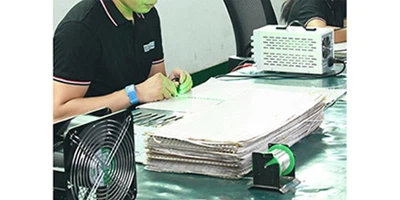

tEST BEFORE SOLDERING

Once the semi-finished products passed to the soldering department, we will have a test for these semi-finished products for power on test again to see if all normally worked.

⒎

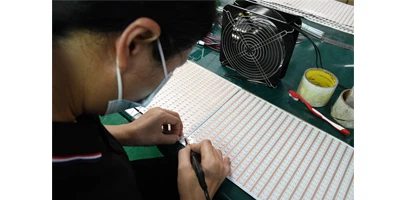

SOLDERING

When testing finished, all the semi-finished products will soldered to finished products according to the production order.

⒏

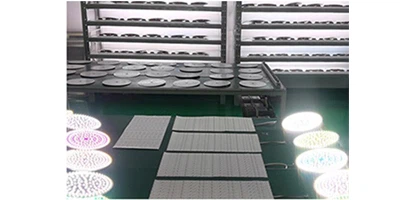

Burn-in testing

When soldering finished, we will have all our products have a burn-in testing(aging testing) to make sure the prodcucts long time worked well.

⒐

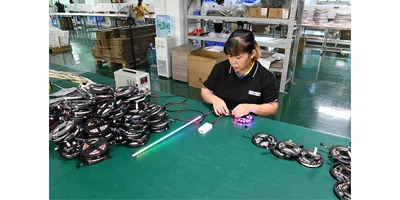

Testing before packing

We will have a 100% testing when all finished products aging test finished and before packing.

⒑

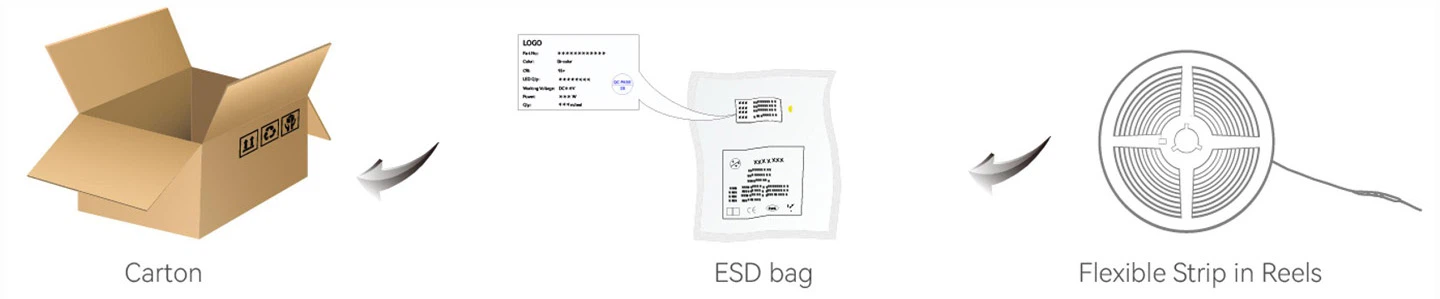

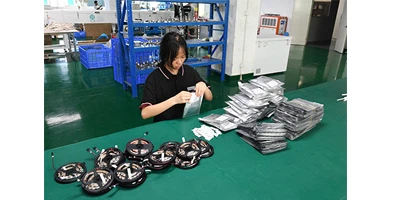

pACKING

After all testing process finished, we will have all our strip packed in reels and inner Anti-static bag.

For our flex ribbon, we are packed with plastic or paper reels, and then packed with ESD bag, for the ESD bag, slivery color for standard, and also we offer black color, white color or any other can be customized, and finally with 30 reels in a carton.

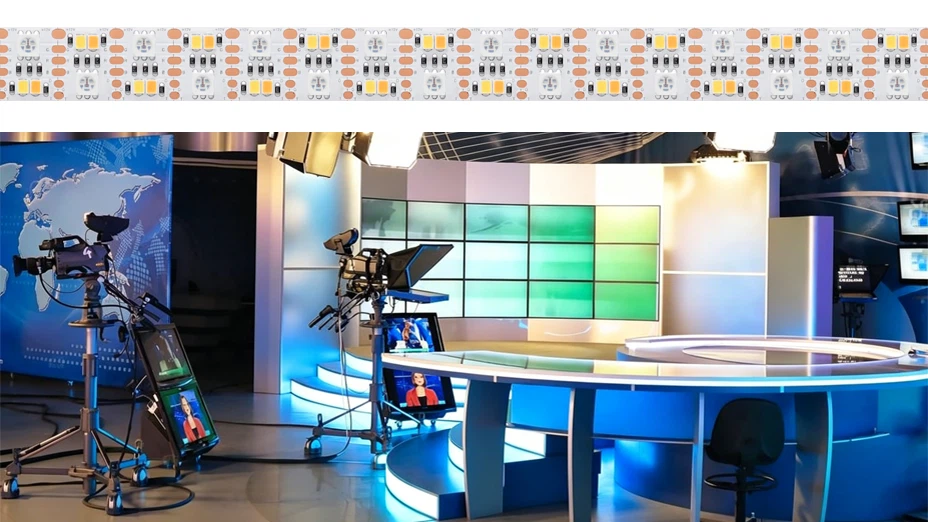

For our High CRI 95+ TLCI 98+ RGBCCT LED Strip, 12V/24V Cinema Grade Light for Professional Photography & Film Production,216leds per meter, 1led Short Cutting Unit., which are designed to be used for film, television, and wherever a desire for high quality lighting is required. With richable color available and they are fantastic in tight spaces and for shooting on location. Extremely vrsatile, light-wight, color-correct, and economical make these RGB CCT color flexible LED Strips a hit with cinematographers and DOPs alike.

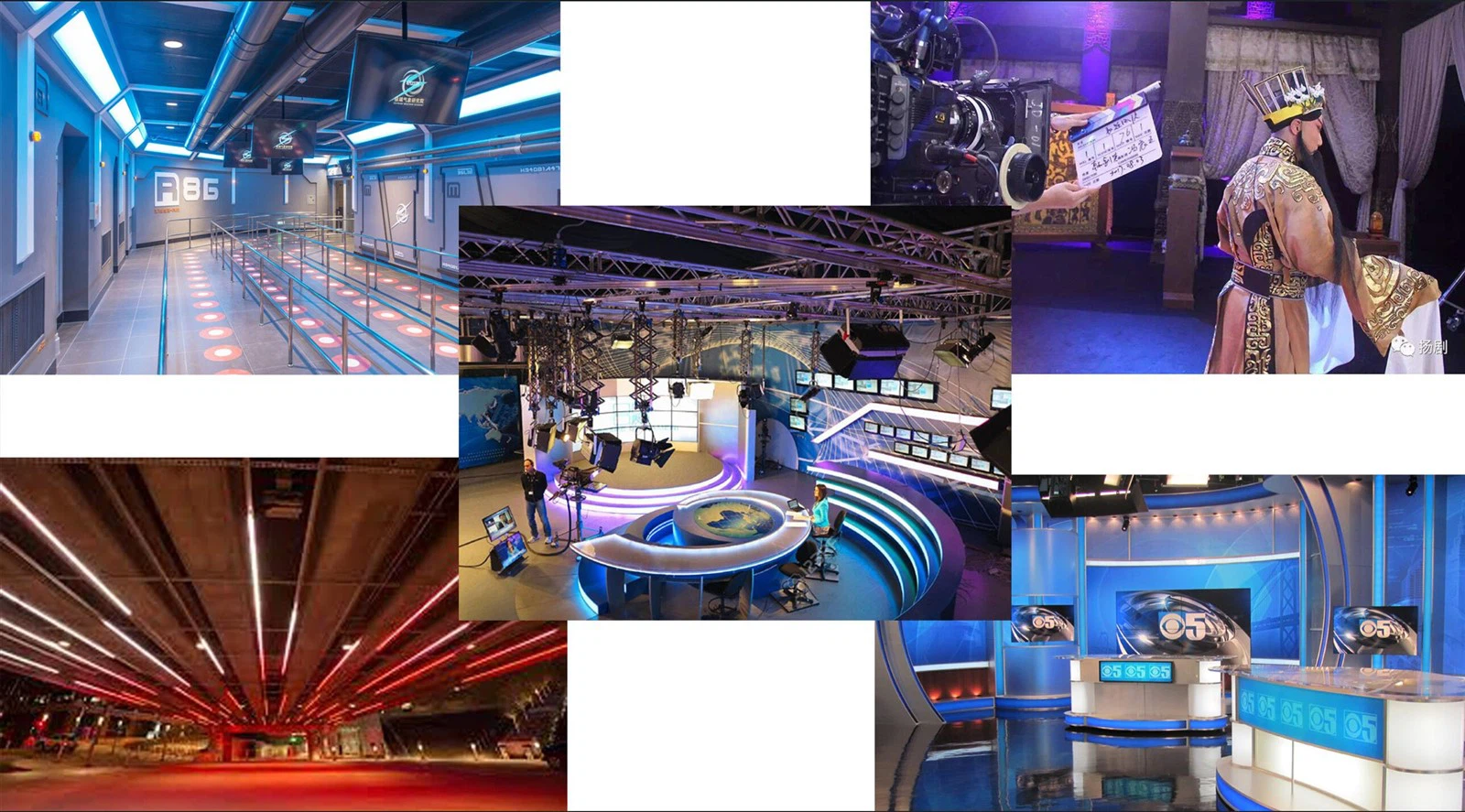

Thus for the whole strips series are suitable and widely used for film, TV, studio, photographic studio, news studio, liveing shows, commercial shooting etc. and also a best choice for high-end projects.
