Description
Technical Parameters

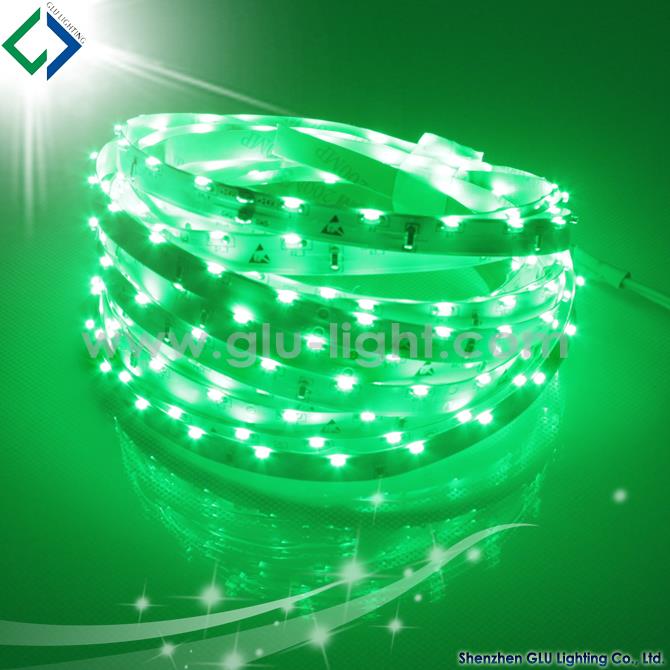

Best-selling high brightness Single color 3014 Sideveiw LED Flexible Strip for edge light
Description:
1. High brightness 0.1W 3014 sideview SMD led, view angle 120 degree;
2. High lumen output, each led 10-12lm;
3. High CRI value CRI above 80 and 90 for choice;
4. Various color for choice, warm white, white, red, green, blue, yellow available
5. Strong original 3M self back adhesive, easy installation;
6. Different density 60leds/m, 120leds/m with DC12V/DC24V, and different PCB width 5mm and 8mm available for choice for different application.
7. Thicker cooper double layer white PCB, for higher wattage strip upto 4 oz cooper layer, with good heat dissipation and long life span.
8. Long life span, upto 50,000 hours.
| Item |
GLU-FCX-SV-XX-60X-X |
GLU-FCX-SV-XX-120X-X |
||
|
1M |
5M |
1M |
5M |
|
|
LED Qty. |
60pcs |
300pcs |
120pcs |
600pcs |
|
Lumens |
660lm |
3150lm |
1320lm |
6200lm |
|
Working Voltage |
DC12V/ 24V |
DC12V/ 24V |
DC12V/ 24V |
DC12V/ 24V |
|
Working Current |
0.56A/0.28A |
2.8A/1.4A |
1.12A /0.56A |
5.6A/2.8A |
|
Working Current |
0.36A/0.18A |
1.8A/0.9A |
0.72A/0.36A |
3.6A/1.8A |
|
Power consumption (White color) |
6.72W |
33.6W |
13.4W |
67.2W |
|
Power consumption (R/G/B/Y) |
4.32W |
21.6W |
8.64W |
43.2W |
|
PCB Width |
5mm/8MM |
5mm/8MM |
||
Application
1. Edge light,cove light,furniture light,sign light
2. Architectural lighting
3. General lighting of residential and office
4. Showcase & counter lighting
5. Illuminated advertising boxes,letters and signs
6. Decorative illumination of bars and clubs,restaurants,theatre
Founded in 2011, GLU Lighting is a hitech enterprise engaged in manugacturing, developing and selling of high quality led strip light. GLU has been specialized in led strip for more than 6 years, currently our products have been exported to more than 40 countries.
Owns over 2500㎡plant area and 4 profuction lines and 50 plus welltrained staff, enables us to providing fast and reliable service.We are equipped with a full set of machinery such as SMT machines, solder reflow, automatic glue dispencer, integrating sphere etc, which grately enhance our production capacity and stability.
Back up by strong R&D strength, GLU pay much attention to product innovation especially today in a competitive led industry. GLU will always continus to explore and create new high quality & costeffective led light for our clients across the globe.
