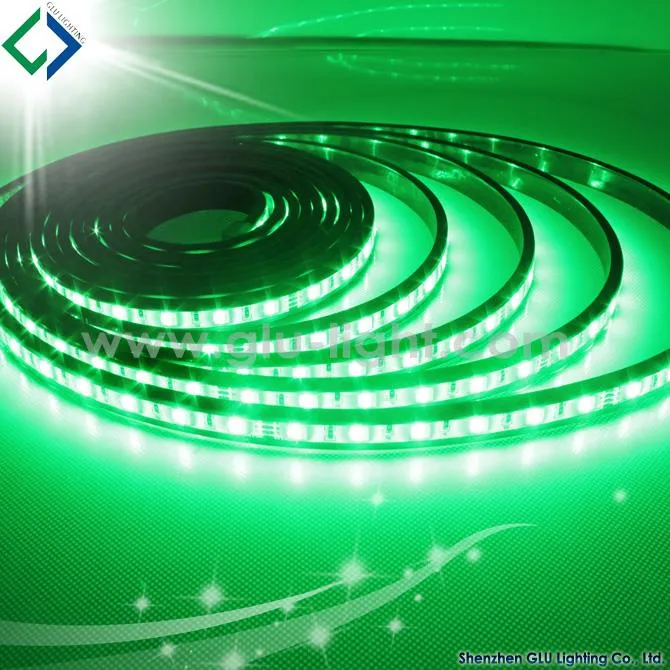

Waterproof IP65/IP67/IP68 5050LED Strip for Outdoor Use



Waterproof IP65/ip67/ip68 5050LED Strip for outdoor use

1. Great light source: Super 5050 SMD LED strip light, top quality Epistar chip for white color 20-22lm/led.

2. Double-faced soft FPC with thicker copper layer.
3. Flexible in length suitable for different applications.
4. Both white and copper PCB available

5.By using special 4 channel controller can achieve different lighting effect;

6. Environmental friendly: complied with CE and RoHS standard without harmful substance, such as lead or Mercury etc.
7. 3 Years warranty.







Outdoor anti corrosion 24V IP68 durable 5050 RGB flex led strip





Absolute Maximum Rating at TA=25°C

Parameter	Symbol	Absolute Maximum Rating	Unit
Forward Current	IF	6	A
Forward Voltage	VF	DC12V	V
Electrostatic discharge	ESD	400	V
Operating Temperature	Topr	-25~+60	°C
Storage Temperature	Tstg	-40~+80	°C

Electrical / Optical Characteristics at TA=25°C

Part No.	Color	CCT/WLD	Lumen Flux	Current	Power	View Angle
FABN-RGBW-120	W	6000-12000K	3000lm	8A	72W	120°
FABN-RGBW-120	R	620-625nm	675lm
FABN-RGBW-120	G	520-525nm	800lm
FABN-RGBW-120	B	465-470nm	525lm

Note: 1. The lumen flux tolerance is ±5%;

          2. The data above is based on 1 meters;
          3. Test Temperature (Ambient temperature: TA=25°C)

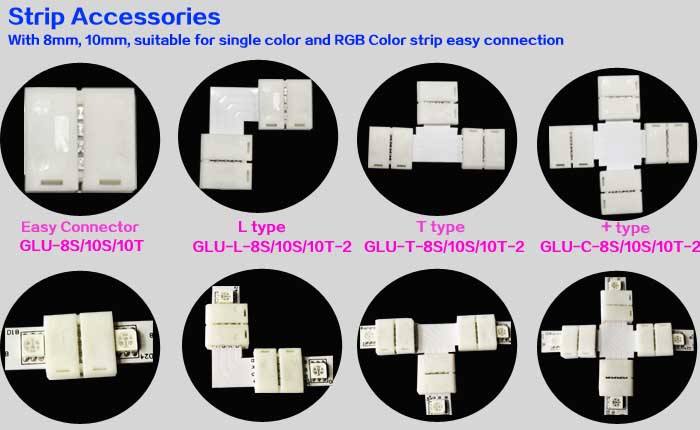

Nonwaterproof/ waterproof Led flexible strip light connector, led strip connector accessories:



























GLU Lighting, established in 2011, is one of the leading waterproof ip65/ip67/ip68 5050led strip for outdoor use manufacturers and suppliers in China. Offering you customized service, we warmly welcome you to buy the high quality and beautiful waterproof ip65/ip67/ip68 5050led strip for outdoor use from our factory.







Glu Light 2017 hotsale new led light strips as below:
