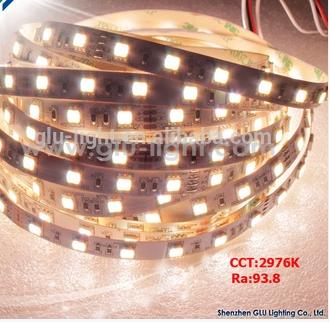

Unique 3 Chips W/WW/Red In One 5050 CCT And CRI Adjustable Fresh Food Led Strip
Description
Technical Parameters
Unique 3 chips W/WW/Red in one 5050 CCT and CRI adjustable Fresh food led strip
1. Unique 5050 smd with cool white, warm white, red color in one led;
2. CCT adjustable from 1700K-7000K;
3. CRI adjustable from Ra75-Ra95;
4. Special design to achieve CRI adjustable function by adjust brightness of red color.
Unique 3 chips W/WW/Red in one 5050 CCT and CRI adjustable Fresh food led strip
1. Top quality Epistar chip 5050 SMD LEDs are used as light sources, Warm white, cool white, and Red in one led.
2. Cool white and warm white in one led, which makes the strip CCT adjustable, by using red color inner warm white side, can adjustable different CRI by adding different brightness red color.
3.CCT and CRI are adjustable though adjust different brightness of cool white, warm white and red color.
Unique 3 chips W/WW/Red in one 5050 CCT and CRI adjustable Fresh food led strip
Absolute Maximum Rating at TA=25℃
|
Parameter |
Symbol |
Absolute Maximum Rating |
Unit |
|
FBN-WRWW-60 |
|||
|
Forward Current |
IF |
60 |
mA |
|
Forward Voltage |
VF |
24 |
V |
|
Viewing Angle |
2θ 1/2 |
120 |
deg |
|
Electrostatic discharge |
ESD |
400 |
V |
|
Operating Temperature |
Topr |
-25~+60 |
℃ |
|
Storage Temperature |
Tstg |
-40~+80 |
℃ |
|
Part No. |
Color |
CCT/WLD |
Lumen Flux |
Working Voltage |
Current |
Power |
|
FBN-WRWW-60 |
Cool white |
6000-7000K |
330lm |
DC24V |
0.54A |
12.96W |
|
Warm white |
2800-3200K |
330lm |
||||
|
Red |
620-625nm |
90lm |
Unique 3 chips W/WW/Red in one 5050 CCT and CRI adjustable Fresh food led strip
Unique 3 chips W/WW/Red in one 5050 CCT and CRI adjustable Fresh food led strip
Unique 3 chips W/WW/Red in one 5050 CCT and CRI adjustable Fresh food led strip Application:
1.Fresh light, Super market, shopping mall
2.Jewelry store, jewelry counter
3.Museum, Science hall etc
4.Decorative illumination of restaurant, dinning room
5.Decorative illimination of bar and Clubs, theatre, hotel, grogshop

Glu Lighting design and manufacture innovative high CRI high quality LED lighting products for years, and we strive to be an industry leader in High CRI, Consistent Color Temperatures LED technology. We design, develop and distribute LED products that are designed specifically for film, cinema, television, and anywhere high quality lighting is required.


GLU Light Flexible led Strip range:
--3528 smd led: 30leds/m, 60leds/m, 120leds/m, 180leds/m, 240leds/m(single row and double row);
--5050 smd led: 30leds/m, 60leds/m, 90leds/m, 120leds/m(double row)
--2835 smd led: 30leds/m, 60leds/m, 84leds/m, 120leds/m (single row) Samsung 2835 led strip is available.
--5630 smd led: 30leds/m, 60leds/m, 120leds/m (double row), Samsung 5630 is available
--RGBW led strip: 4 in one(60/72/84/96leds/m)
--CCT adjustable led strip: 3528 120/240 leds/m, 5050 60leds/m, 2835 60/120 leds/m; 3014 240leds/m; 5630 60led/m and 120 leds/m. side view 3014 120leds/m bi color led strip and so on.
--digital strips WS2811,WS2812,SK6812,APA102 etc.
--2835/5050 Neon flexible led strips
