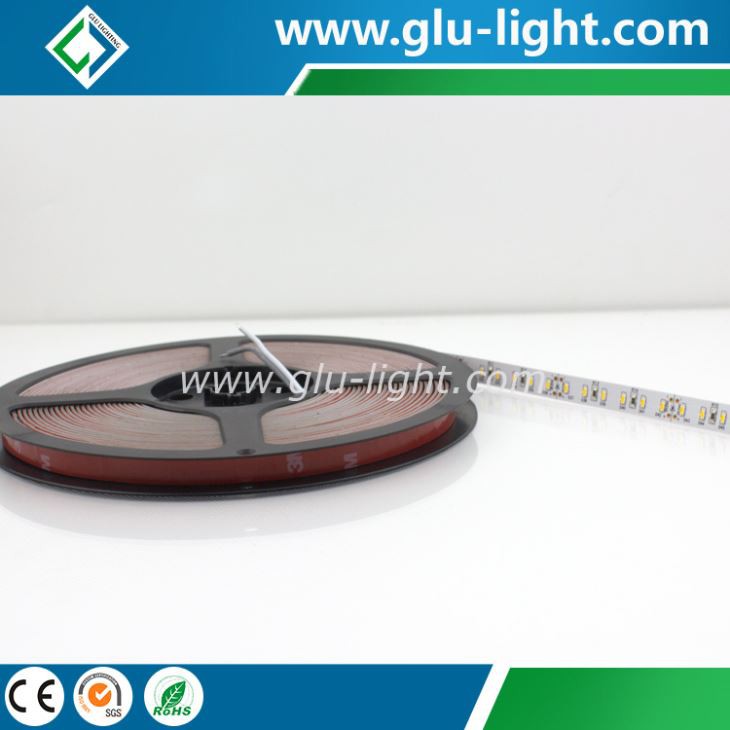

3014 led strip aluminium channel profile

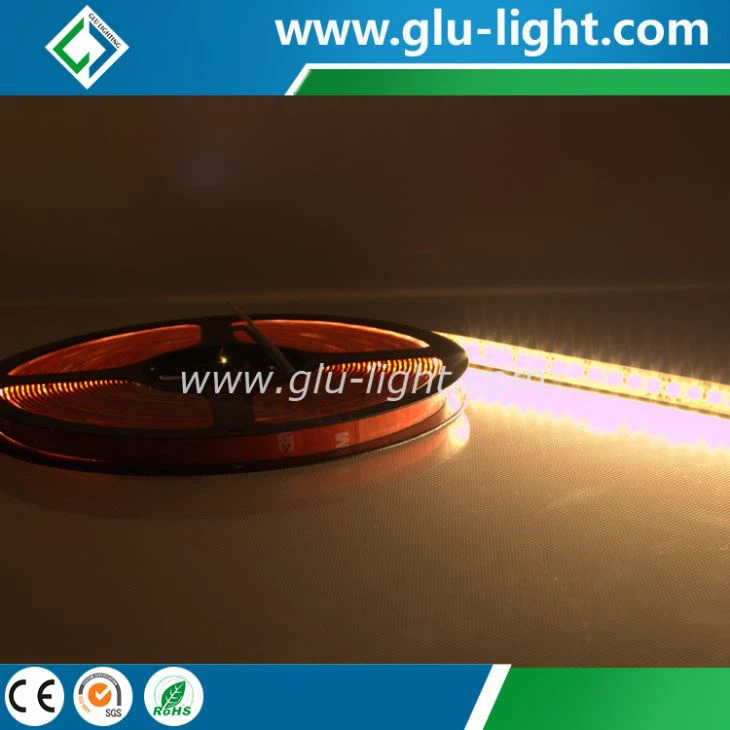

led IP65 3014 12v white led waterproof

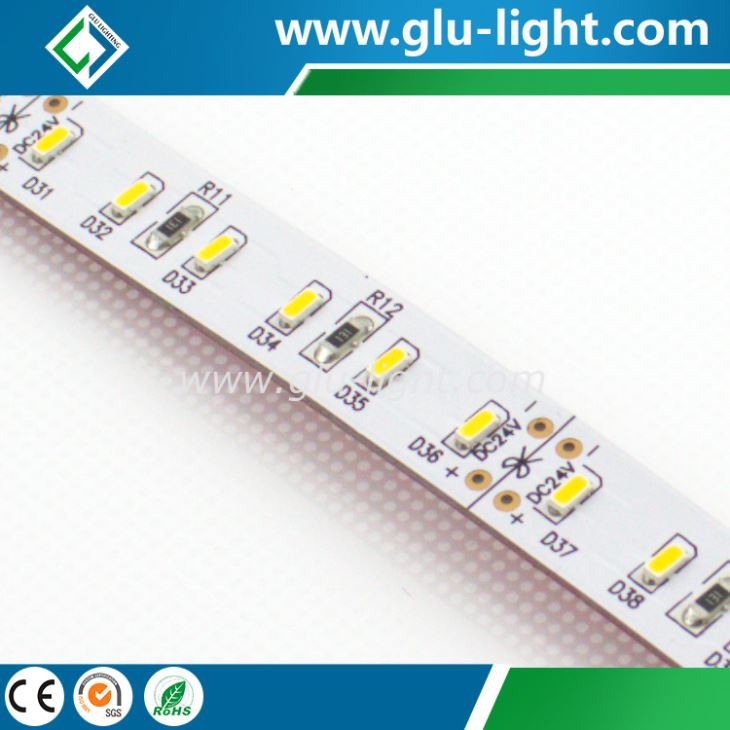

alibba express 2700K 3014 led tape

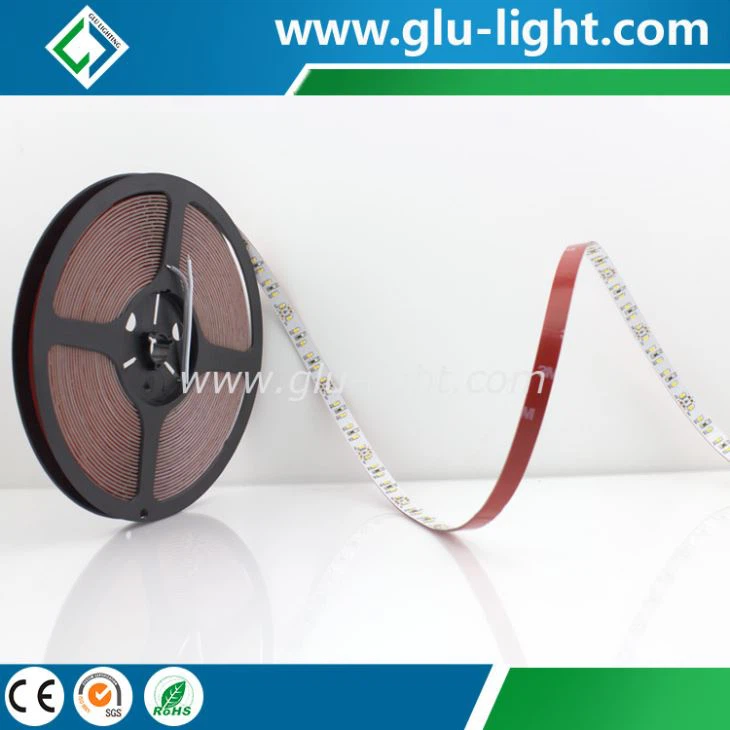

factory price 3014 cw ww led strip
CE/ROHS 3014 led ribbon 12v waterproof

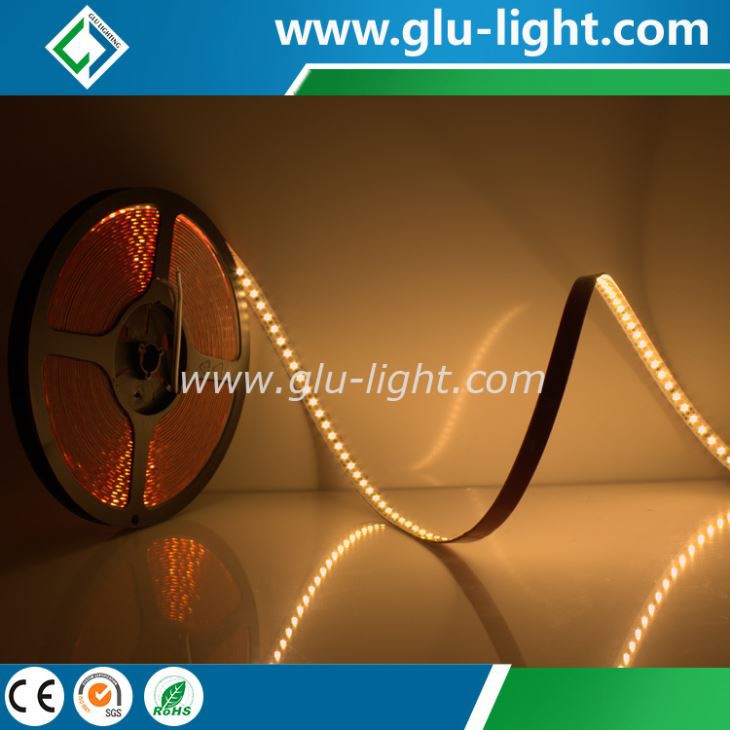

manufacturer china 4500K 3014 led lighting
China Factory DC24V 12-14 Lm 3014 Led Strip 120 Leds/m With 3 Years Warranty Time
Description
Technical Parameters
China factory DC24V 12-14 lm 3014 led strip 120 leds/m with 3 years warranty time
Description:
1. High brightness 3014 smd as light source,eachled 12-14lmwith high light effect;
2. High CRI value, CRI above 90/95/97 for choice;
3. With high precision branded resistors;
4. Strong original 3M self back adhesive, easy installation;
5. Different density 60leds/m, 120leds/, 204leds/m, 240leds/m for choice for different application.
5. Thicker cooper double layer white PCB, for higher wattage strip upto 4 oz cooper layer, with good heat dissipation and long life span.
6. Long life span, upto 50,000 hours.
China factory DC24V 12-14 lm 3014 led strip 120 leds/m with 3 years warranty time
Technical Parameter
| Item |
GLU-FCX-X8-60X-X |
GLU-FCX-X10-120X-X |
GLU-FCX-X10-204X-X |
GLU-FCX-X10-240X-X |
||||
|
1m |
5m |
1m |
5m |
1m |
5m |
1m |
5m |
|
|
LED Qty. |
60pcs |
300pcs |
120pcs |
600pcs |
204pcs |
1020pcs |
240pcs |
1200pcs |
|
Lumen |
600lm |
3000lm |
1200lm |
6000lm |
2040lm |
10200lm |
2400lm |
12000lm |
|
Working voltage |
12VDC/ |
12VDC/ |
12VDC/ |
12VDC/ |
12VDC/ |
12VDC/ |
12VDC/ |
12VDC/ |
|
Working Current |
0.56A/ 0.28A |
2.8A/ 1.4A |
1.12A/ 0.56A |
5.6A/ 2.8A |
1.9A/ 0.95A |
9.5A/ 4.75A |
2.24A/ 1.12A |
11.2A/ 5.6A |
|
Power consumption |
6.72W |
33.6W |
13.44W |
67.2W |
22.8W |
114W |
26.88W |
134.4W |
|
Width available |
8mm |
10mm |
10mm |
10mm |
||||
China factory DC24V 12-14 lm 3014 led strip 120 leds/m with 3 years warranty time
Applications:
1. Decorative illumination for ceiling and coves;
2. Architectural lighting;
3. General lighting of residential and office;
4. Show case & counter lighting;
5. Illuminated advertising boxes, letters and signs
6. Decorative illumination of bars and clubs, restaurants, theatre, hotel etc.
GLU Lighting, established in 2011, is one of the leading 3014 flexible strip manufacturers and suppliers in China. Offering you customized service, we warmly welcome you to buy the high quality and beautiful 2835 flexible strip from our factory.
GLU light offer a wide range of Flex led strip for you:
--3528 smd led: 30leds/m, 60leds/m, 120leds/m, 180leds/m, 240leds/m(single row and double row);
--5050 smd led: 30leds/m, 60leds/m, 90leds/m, 120leds/m(Single row)
-2835 smd led: 30leds/m, 60leds/m, 84leds/m,120leds/m and 168 leds/m(Double row) Samsung 2835 led strip is available
--5630 smd led: 60leds/m, 120leds/m (double row), Samsung 5630 is available
--RGBW/Amber led strip: 4 in one(60/72/84/96leds/m)
CCT adjustable led strip: 3528 120leds/m, 5050 60leds/m, 2835 60/120 leds/m; 3014 240leds/m; 5630 60led/m and 120 leds/m. side view 3014 120leds/m bi color led strip and so on.
--digital strips WS2811,WS2812,SK6812,APA102 etc.
Hot Tags: china factory dc24v 12-14 lm 3014 led strip 120 leds/m with 3 years warranty time, China, manufacturers, suppliers, factory, customized
