China Factory Custom Length 5 Colors RGB+W+WW Ra95 CCT Led Panel For Video/studio
Description
Technical Parameters
China factory custom length 5 colors RGB+W+WW Ra95 CCT led Panel for video/studio
GLU light company is leader manufacturer of High CRI Flexible/ rigid Led Panel in China, Single color and Bi-color Version are available, Flex soft PCB and Aluminum PCB are OK, widely used for Film Lighting, TV studio and High-end Market.
FEATUREs
China factory custom length 5 colors RGB+W+WW Ra95 CCT led Panel for video/studio Technical parameter
Absolute Maximum Rating at TA=25℃
| Parameter | Symbol | Absolute Maximum Rating | Unit | |
| LED Qty. | -- | RGB/168(12×14) | W/WW/2×168(12×14) | PCS |
| Forward current | IF | 2950 | mA | |
| Forward voltage | VF | 24 | VDC | |
| CRI | Ra | --- | Ra>96(R1-R15>90) | -- |
| View angle | -- | 120 | ° | |
| Electrostatic discharge | ESD | 400 | V | |
| Operating Temperature | Topr | -25～+60 | ℃ | |
| Storage Temperature | Tstg | -40～+80 | ℃ |
|
Typical Electrical / Optical Characteristics at TA=25℃
| Part No. | Color | WLD/CCT | Lumen Flux | CRI | Voltage | Current | Power |
| GLU-RLPN-FP-504 | Red | 620-630nm | 330lm | -- | DC24V | 2.95A | 70W |
| Green | 515-525nm | 660lm | |||||
| Blue | 460-470nm | 190lm | |||||
| Warm white | 1900K-3200K | 1420lm |
Ra>96 R1-R15>90 |
||||
| White | 5000-6500K | 1610lm |
Note: 1. The lumen flux tolerance is ±10% due to difference for test equipment.
China factory custom length 5 colors RGB+W+WW Ra95 CCT led Panel for video/studio DIMENSION

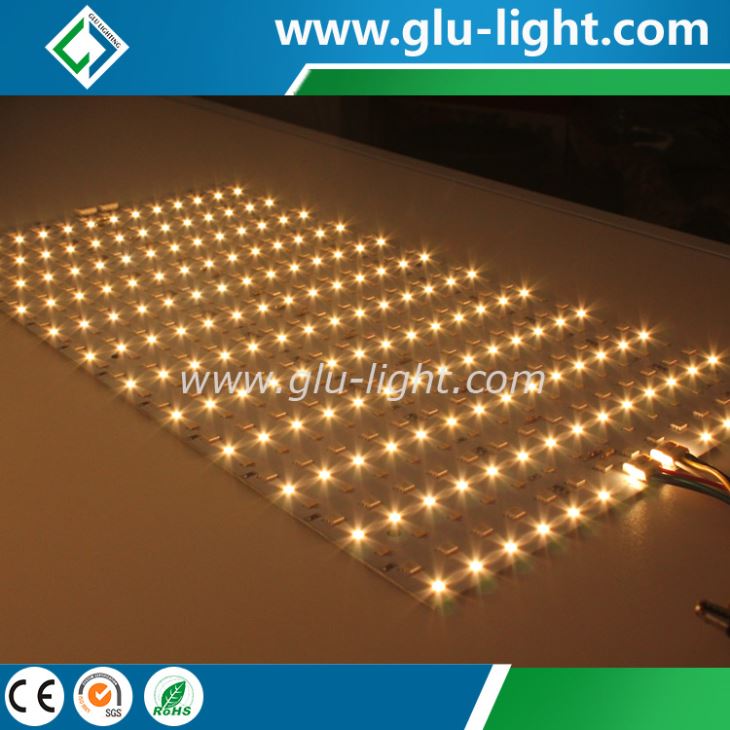

China factory custom length 5 colors RGB+W+WW Ra95 CCT led Panel for video/studio Picture
Super bright RGB+Bi-color 2835, Ra>96, R1-R15>90
Red
Green
Blue
GLU Light attach great importance to our R&D dept. In 2016, OEM business almost accounts for half of our total sales revenue. OEM/Customized business is welcomed,Size and led quantity. power, voltage can be customized. Single color, bi color, tri color, 4 colors,5 colors version all are available. Flexible PCB and Aluminum PCB are available for your choice.
If you have any OEM idea/ product, just let us know please. Our engineer will check out the feasibility and offer you pratical solution accordingly. we treat your information with the highest respect and confidentiality.
Frequently Asked Questions
Q: Are you a factory?
A: Yes, we are LED lights manufacturer in Shenzhen, China.
Q: Can I have samples to test?
A: Yes, sample test is available and welcome.
Q: Can our logo or a simple parameter printed on the label of the led flexible strip?
A: Sure, if you like, we can print for you. Just telling us your requirements.
Q: Can you make the led strip using other brand led chip, e.g. CREE, OSRAM?
A: Yes, it is ok for other brand chips, we can produce the products according to your demands.
Q: What's the payment method you accept?
A: Usually we take T/T(bank wire transfer). You can also pay by Western Union.
Hot Tags: china factory custom length 5 colors rgb+w+ww ra95 cct led panel for video/studio, China, manufacturers, suppliers, factory, customized
