24V Customize RGB+W+WW Bi Color Ra95 5 Colors Led Panel For TV/video/film
video

24V Customize RGB+W+WW Bi Color Ra95 5 Colors Led Panel For TV/video/film

A highly durable RGB+W+WW(5600K & 2800K/3000K) panel for back-lighting, under-lighting, or anywhere a high-output array of color-controllable LEDs are required. The unit uses our newly-released High CRI 5600K & 2800K/3000K LED chips. CRI over 96 and R1-R15 value consistently over 90. 2pcs WAGO 3pins connector are located on both sides located of the panel allow for easy connections between other panels.
Send Inquiry
Download

Description

Technical Parameters



24V customize RGB+W+WW bi color Ra95 5 colors led panel for TV/video/film





GLU light company is leader manufacturer of High CRI Flexible/ rigid Led Panel in China, Single color and Bi-color Version are  available, Flex soft PCB and Aluminum PCB are OK, widely used for Film Lighting, TV studio and High-end Market.



FEATUREs



rgb+bi color 5 colors in one flexible led panel for TV show



24V customize RGB+W+WW bi color Ra95 5 colors led panel for TV/video/film Technical parameter


Absolute Maximum Rating at TA=25℃

Parameter Symbol Absolute Maximum Rating Unit
LED Qty. -- RGB/168(12×14) W/WW/2×168(12×14) PCS
Forward current IF 2950 mA
Forward voltage VF 24 VDC
CRI Ra --- Ra>96(R1-R15>90) --
View angle -- 120 °
Electrostatic discharge ESD 400 V
Operating Temperature Topr -25～+60 ℃
Storage Temperature Tstg -40～+80 ℃


Typical Electrical / Optical Characteristics at TA=25℃

Part No. Color WLD/CCT Lumen Flux CRI Voltage Current Power
GLU-RLPN-FP-504 Red 620-630nm 330lm -- DC24V 2.95A 70W
Green 515-525nm 660lm
Blue 460-470nm 190lm
Warm white 1900K-3200K 1420lm

Ra>96

R1-R15>90
White 5000-6500K 1610lm

Note: 1. The lumen flux tolerance is ±10% due to difference for test equipment.





24V customize RGB+W+WW bi color Ra95 5 colors led panel for TV/video/film DIMENSION

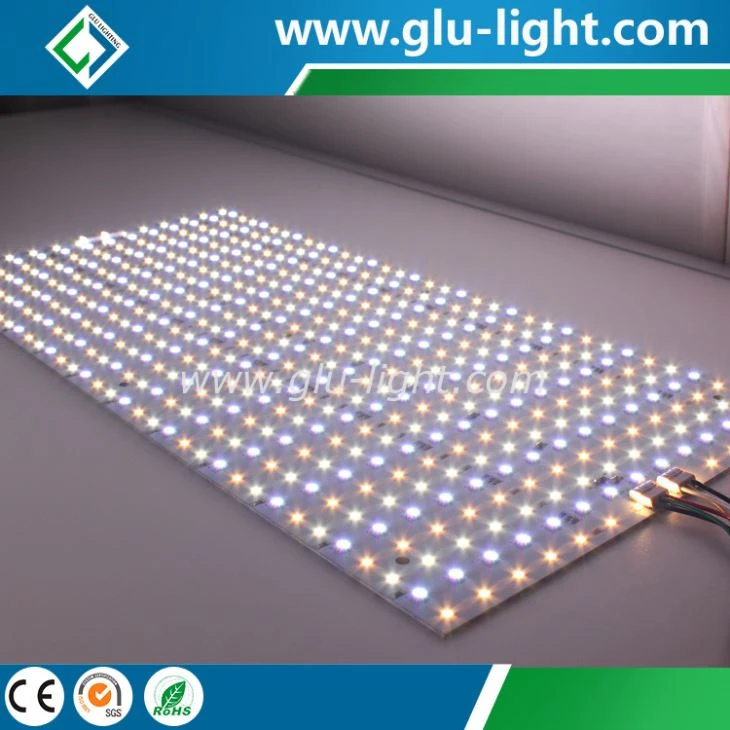

24V customize RGB+W+WW bi color Ra95 5 colors led panel for TV/video/film Picture






Super bright RGB+Bi-color 2835, Ra>96, R1-R15>90




Red


Green


Blue









GLU Light attach great importance to our R&D dept. In 2016, OEM business almost accounts for half of our total sales revenue. OEM/Customized business is welcomed,Size and led quantity. power, voltage can be customized.  Single color, bi color, tri color, 4 colors,5 colors version all are available.  Flexible PCB and Aluminum PCB are available  for your choice.



If you have any OEM idea/ product, just let us know please. Our engineer will check out the feasibility and offer you pratical solution accordingly. we treat your information with the highest respect and confidentiality.



FAQ
1. Q: Could you send me your catalogue and price list?
    A: As we have a wide range of products, please inform us the   offer the pricelist for your reference.
2. Q: How about the quality of your product?
    A: 100% inspection during production. Our products are certified to CE and Rohs/ UL standards.
3. Q: What material of the product can you supply?
    A: PCB width, custom size & voltage, logo, Packing details or according to your requirement.
4. Q: What's the delivery time?
    A: 5-7 days for sample order,7-15 working days for bulk order after receiving your payment.
5. Q: What's your packing?
    A: Our Normal packing is bulking in Carton.
6. Q: What about the payment?
    A: Small payment via Paypal,big amount via TT.Also via Western Union and Money Gram.
