High CRI Single Color 2835 SMD LED Strip 24V 60leds 8mm UL Listed

High CRI Single Color 2835 SMD LED Strip 24V 60leds 8mm UL Listed

High CRI Single Color 2835 SMD LED Strip 24V 60leds 8mm UL Listed
● Working Voltage DC24V, 8mm width PCB;
● High CRI Value with Ra>95, R1-R15>90;
● High TLCI>95;
● CCT available from 1800K-10000K
Send Inquiry

Description

Technical Parameters



STRIP

Introduction

CINEMA Single color strip GLU-S1L0300XX60-24V is one of the most popular product in the

CINEMA Single Color Strip family for the film industry. This high-performance LED strip is

designed to deliver exceptional and superior lighting effects, making it the preferred choice for

film lighting professionals around the world.



1. Cinema-quality 2835 SMD are Used as Light Sources :

Cinema-quality 2835 SMD are used for the GLU-S1L0300XX60-24V, with high lumen output

&boasts a high CRI(Color Rendering Index)&TLCI (Television Lighting Consistency Index) rating,

for CRI over 95, with full specrum with all R1-R15 above 90, TLCI>95, making it ideal for use in

any film or television production. The high CRI and TLCI ensure accurate and consistent color

reproduction, removing any unwanted color casts or variations that can negatively impact the

final output.



2. High Brightness:

One of the significant advantages of the GLU-S1L0300XX60-24V is its high brightness. With a

luminous flux of 770lm/m, the LED strip produces a brilliant and vibrant lighting effect that

illuminates any set, adding depth and clarity to the visuals.



3. Different CCT and Customized CCT Avaialble:

GLU-S1L0300XX60-24V provide standard CCT with 3200K for Tungsten, 4000k for Natural

white, 5600K or 6500K for Daylight, which is the most popular CCT for the film industry, and

besides, we offer customized CCT for Tungsten from 2000K to 3500K, and Daylight from 5000K

-10000K.



4. High-Quality Construction:

Not only does it provide top-notch lighting quality, but it is also durable and long-lasting. The LED

strip is made from high-quality materials with 8mm double layer PCB with 2oz copper, 18AWG

bared wire is used, that makes the strip with low voltage drop and can withstand harsh environments

and extreme temperatures, making it an ideal choice for the film industry and high CRI products is

desired.



Conclusion:

In conclusion, the CINEMA Single Color Strip GLU-S1L0300XX60-24V is a high-performance

LED strip that delivers exceptional brightness, high CRI and TLCI ratings, and excellent durability.

It is the go-to choice for lighting professionals in the film industry.



Choose GLU-S1L0300XX60-24V today, and experience the best lighting quality possible!

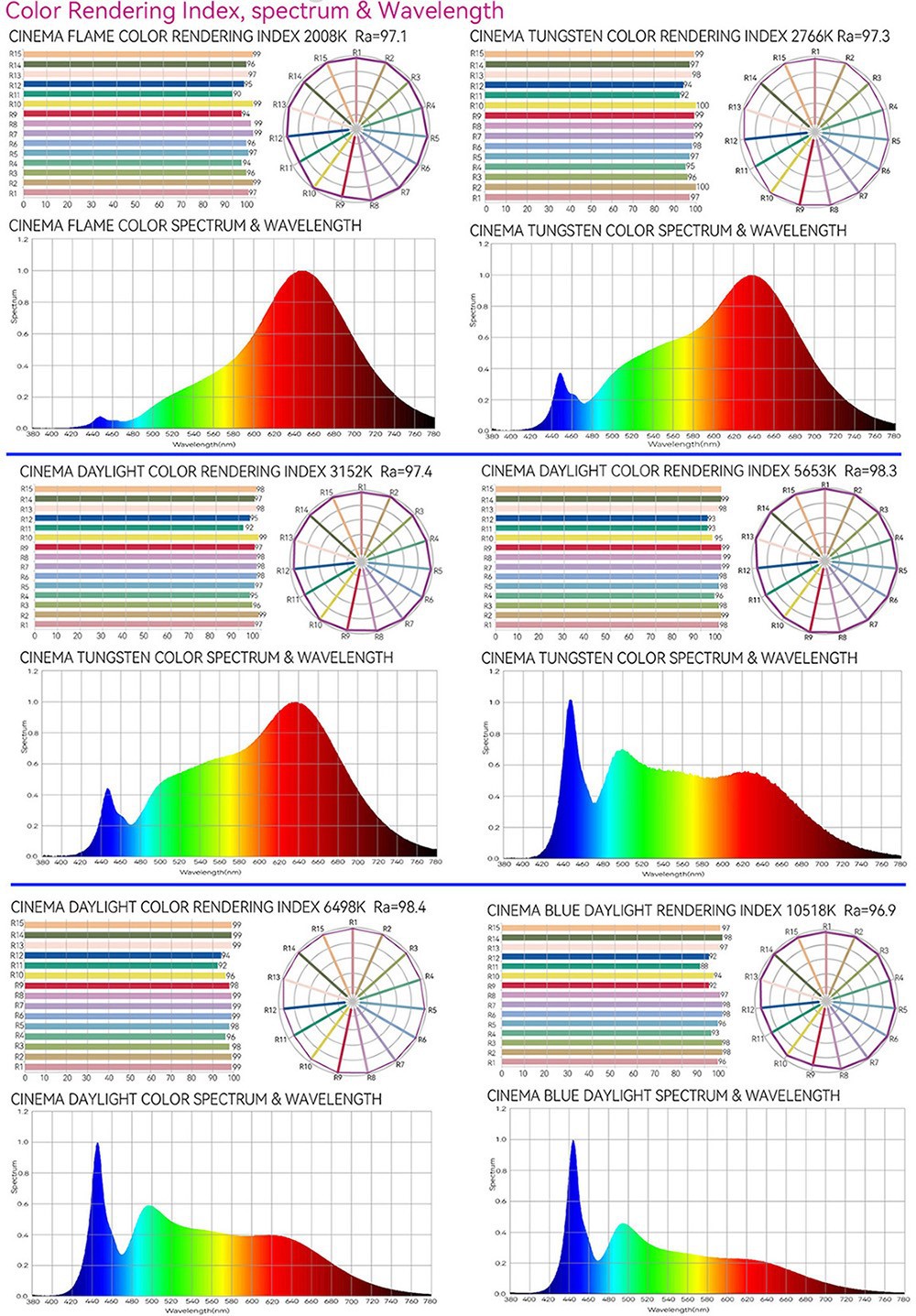

CRI Wavelength

color-2835

Product details

details

Dimension

packing

Why choose us

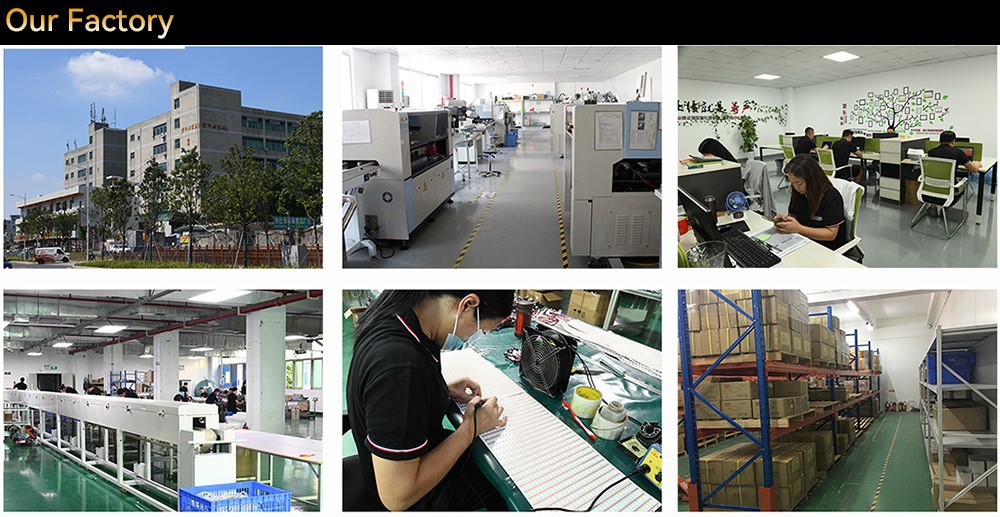

Our Factory

R D

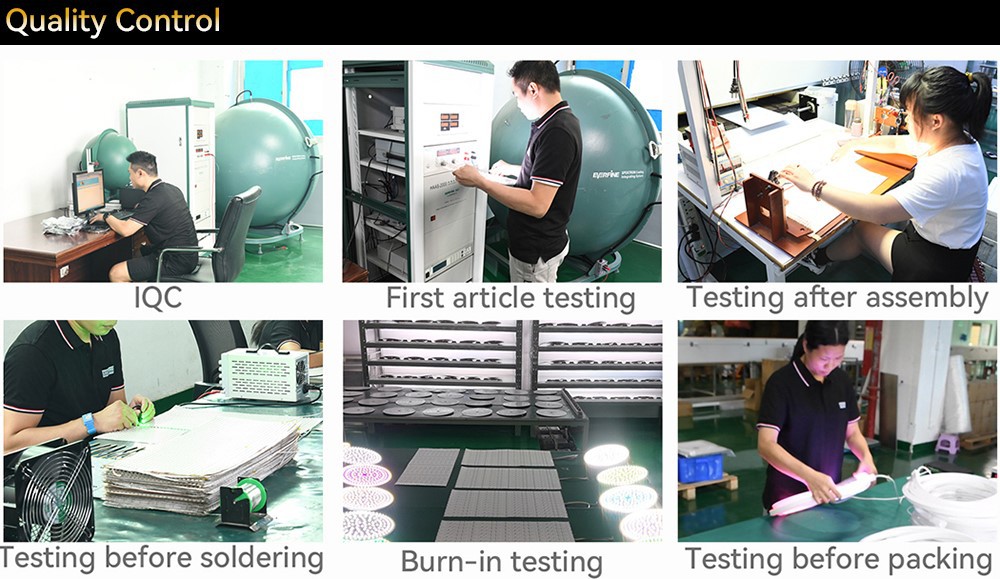

Quality Control

Certification

Shipping and Payment

RAQ

1. Can we get Sampels?

Yes, we offer samples, for short piece we can send free samples, customer just should cover the

shipping cost. Also a sample order is welcomed, mixed samples are acceptable.

2. How long can we get samples?

Normally we can send samples within 3- 5days, as we have main materials for samples in stock

to ensure a fast delivery, and mixed samples with many models might be 5-7days for normal.

3. What's the lead time for a normal order?

For Normal standard order the delivery time is 10-15days, for special required order delivery

time is around 15days.

4. Do you have a MOQ for samples order and standard orders?

For samples 1meter or 1pcs is available, and for standard products MOQ is 100meter for strip

and 5pcs for panels.

5. How to buy our products?

When you contact our professional sales, just tell our sales your detail requirement or products

you would like to order, and once samples are verified, let us know the quantity, and our sales will

process you the invoice for production.

6. How can we pay the order, and how to send our goods?

We offer different payment method, T/T, Paypal or order through Ali trade assurance is welcomed.

Normally for standard order, we will send them by DHL, FedEX, UPS etc. and also airshipment and

seashipment is optional.

7. Do you offer customized products or offer logo print?

Yes, we have an experienced R & D team, you can let us know your details requirement, and then

we will make special design for you, after sampels confirmed, we can process mass production. To

print logo on label is offered in small order, and for printing on PCB, the MOQ of 500meters for

strip, and 50pcs for panels.

8. What's the warranty of your products?

For standard our warranty is 3 years, and we can also offer a 5 years warranty or even longer based

on different products.

9. Can we get a constant color between each order?

We have many years production experience for led products with high CRI solutions, all LEDs for our

standard CCT are come with same bin for each order. So we will keep mostly the same color.

10.How to deal with faulty?

We offer high end led products, all our products from materials to finished products are under

strict quality inspection, however, for an electronic products, nobody can ensure 100% prefect,

so frankly speaking we have a defective ratio less than 0.1%. Once the products get fault during

guarantee time, after confirm the defective reason, we will offer replacement with new order for

small quantity.

For batch defective, we will discuss best solutions to get problem solved.

Hot Tags: High CRI Single Color 2835 SMD LED Strip 24V 60leds 8mm UL Listed, China, manufacturers, suppliers, factory, customized

technical parameter

Typical Working Voltage DC24V Working Voltage Range DC18-26V
LED Type 2835 SMD LED Qty./M 60PCS
Color

Single color

Tungsten(WW)/Daylight(W)/

Natural white(NW) /R/G/B/A

Typical CCT White 3200K/4000K/6500K
CCT Customized Tungsten 2000K-3200K CCT Customized Daylight 5600K-10000K
Product Dimensions(mm) L5000×W8×H1.13 Product Dimensions(in.) L196.85×W0.31×H0.045
Copper thickness 2oz(1oz+1oz) Cutting Points 100.00mm(3.94in.)
Forward current/m 0.7A Forward Wattage/m 8.4W
Typic CRI 95+ Typical R1-R15 90+
Typic TLCI(T/D) 95+ Typical TM30 Data(T/D) Rg>95,Rf>95
View Angle 120 degree Standard Length 5m/reel
Connetion(Standard) 2PIN Bare Cable Installation 3M 9080HL(Others optional)



Typical Optical Characteristics

Product Code. GLUA24CV008L0300XX06W60C2
Part No. GLU-S1L0300SW/NW/WW60-24V
Color Tungsten(Warm white) Natural White Daylight(White)
Typical CCT/WDL 3200K(3100-3300K) 4000K(3800-4200K)

5600K(5400-5800K)/

6500K(6300-6700K)

Power consumption/M 8.4W 8.4W 8.4W
Lumen output/M 750lm 770lm 770lm
SDCM <3 <3 <3
Certification                                      ul                              ce                           Rohs
Warranty 3 Years

Note: 1. The tolerance of lumen 􀇃fux and power is ±10% due to difference for test equipment.

              2. The parameters may change without prior notice.
