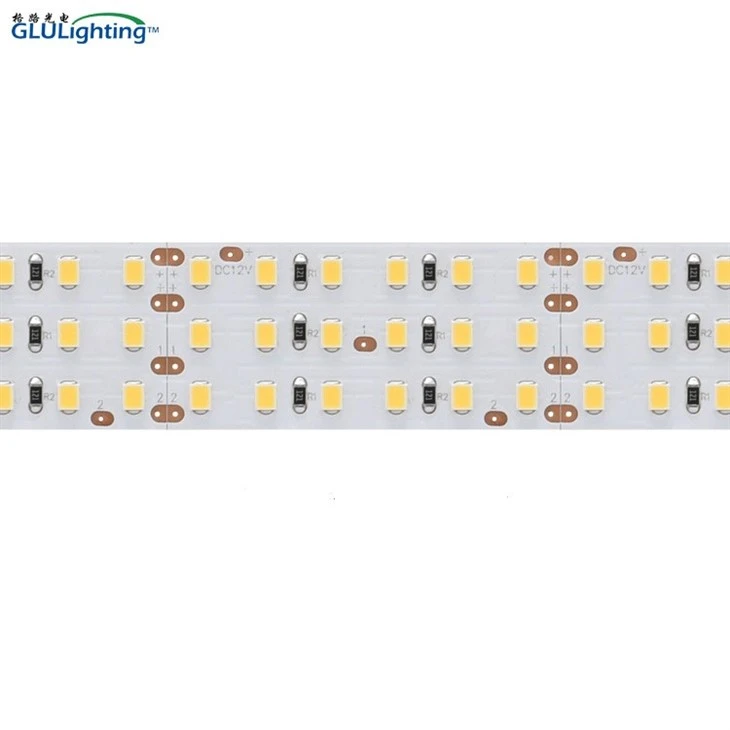

High CRI 2835 LED Ribbon Multi-rows 12V Series
● Available with 240leds/m 2 rows 16mm width, 360leds/m 3 rows 24mm width,
480leds/m 4 rows 32mm width, 600leds/m 5 rows 40mm width,
720leds/m 6 rows 48mm width;
● With cinema-quality high cri Ra95 2835 led,full spectrum R1-R15 above 90;
● Enhanced CRI R9 & R12 technology, cover wide CCT ranges from 1800K to 10000K
Description
Technical Parameters
We are proud to present our latest DC12V single color high CRI multiple rows LED strip series.
This collection features different width of double-rows (R2) 240 LEDs/m, triple-rows (R3) 360
LEDs/m, quadruple-rows (R4) 480 LEDs/m, quintuple-rows (R5) 600 LEDs/m, and sextuple-rows
(R6) 720 LEDs/m.
Our LED strips use high CRI & high TLCI 2835 SMD LED that produce a full spectrum of warm
white, natural white, and cool white colors. We also offer customized colors that range from
2000K to 10000K.
Additionally, each strip contains backup soldering pads that can be trimmed to the minimum
unit, extremely multi-functional!
This series are ultra-bright, full spectrum from R1 to R15 above 90,TLCI is > 95. 3-ounce copper
PCB enables small voltage drop, good stability, and long-lasting durability. These strips are perfect
for use in large TV shows, studio, live broadcast room, or high-end engineering project.
DC12V single-color high-CRI multiple-row LED strip series is a perfect combination of high bright
-ness, high CRI, and color consistency with greatdurability. So, if you are looking for a reliable and
efficient LED strip, this collection is the ideal for you!
Hot Tags: high cri 2835 led ribbon multi-rows 12v series, China, manufacturers, suppliers, factory, customized
|
LED Qty. Per meter |
Dimensions (mm) |
Dimensions (inch.) |
Voltage |
Copper Thickness |
Cutting Points (mm/in.) |
Stand packing Length |
Standard Connection |
Installation |
|
240LEDs (16mm) |
L1500×W16×H1.3 (C/UL Standard) L5000×W16×H1.3 (CE Standard) |
L59.06×W0.63×H0.051 (C/UL Standard) L196.85×W0.63×H0.051 (CE Standard) |
DC12V |
3oz (1oz+2oz) |
50.00mm (1.97in.) |
1.5m(4.92ft) (C/UL Standard) 5m(16.4ft) (CE Standard) |
3PIN Bared Wire |
3M 9080HL (Others optional) |
|
360LEDs (16mm) |
L1500×W24×H1.3 (C/UL Standard) L4000×W10×H1.3 (CE Standard) |
L59.06×W0.94×H0.051 (C/UL Standard) L157.48×W0.94×H0.051 (CE Standard) |
DC12V |
3oz (1oz+2oz) |
50.00mm (1.97in.) |
1.5m(4.92ft) (C/UL Standard) 4m(13.12ft) (CE Standard) |
3PIN Bared Wire |
3M 9080HL (Others optional) |
|
480LEDs (32mm) |
L1000×W32×H1.3 (C/UL Standard) L3500×W32×H1.3 (CE Standard) |
L39.37×W1.26×H0.051 (C/UL Standard) L137.8×W1.26×H0.051 (CE Standard) |
DC12V |
3oz (1oz+2oz) |
50.00mm (1.97in.) |
1m(3.28ft) (C/UL Standard) 3.5m(11.48ft) (CE Standard) |
3PIN Bared Wire |
3M 9080HL (Others optional) |
|
600LEDs (40mm) |
L1000×W40×H1.3 (C/UL Standard) L3000×W40×H1.3 (CE Standard) |
L39.37×W1.57×H0.051 (C/UL Standard) L118.11×W1.57×H0.051 (CE Standard) |
DC12V |
3oz (1oz+2oz) |
50.00mm (1.97in.) |
1m(3.28ft) (C/UL Standard) 3m(9.84ft) (CE Standard) |
3PIN Bared Wire |
3M 9080HL (Others optional) |
|
720LEDs (48mm) |
L500×W48×H1.3 (C/UL Standard) L2500×W48×H1.3 (CE Standard) |
L19.69×W1.89×H0.051 (C/UL Standard) L98.43×W1.89×H0.051 (CE Standard) |
DC12V |
3oz (1oz+2oz) |
50.00mm (1.97in.) |
0.5m(1.64ft) (C/UL Standard) 2.5m(8.2ft) (CE Standard) |
3PIN Bared Wire |
3M 9080HL (Others optional) |
|
LED Qty. Per meter |
Typ. Voltage (Voltage Range) |
Color | Typ. CCT |
Customized CCT range |
Typ. CRI |
Typ. R1-R15 |
Typ. TLCI |
SDCM |
Typ. Current |
Typ. Power |
|
240LEDs (16mm) |
DC12V (DC8-13V) |
Tungsten(WW)/ Natural White/ Daylight(W) |
3200K/ 4000K/ 6500K |
Tungsten (2000K-3200K) Daylight (5600K-10000K) |
>95 | >90 | >95 | <3 | 2.8A | 33.6W |
|
360LEDs (24mm) |
DC12V (DC8-13V) |
3.36A | 40.32W | |||||||
|
480LEDs (32mm) |
DC12V (DC8-13V) |
4.32A | 51.84W | |||||||
|
600LEDs (40mm) |
DC12V (DC8-13V) |
5.6W | 67.2W | |||||||
|
720LEDs (48mm) |
DC12V (DC8-13V) |
7.2A | 86.4W |
Note：SDCM <3 is based on ANSI test point 2700K,3000K,3500K,4000K,4500K,5000K,5700K,6500K.
|
LED Qty. |
Product Code | Part No. | Color | CCT | Power | Lumen |
Certifi -cation |
Warranty |
|
240LEDs (16mm) |
GLUA12CV016L0300 WW03W240C3 |
GLU-S1L0300WW240-12V |
Tungsten (WW) |
3200K (3100-3300K) |
33.6W | 3000lm |
|
3 Years |
|
GLUA12CV016L0300 NW03W240C3 |
GLU-S1L0300NW240-12V | Natural White |
4000K (3800-4200K) |
33.6W | 3080lm | |||
|
GLUA12CV016L0300 SW03W240C3 |
GLU-S1L0300SW240-12V |
Daylight (W) |
5600K(5400-5800K)/ 6500K(6300-6700K) |
33.6W | 3100lm | |||
|
360LEDs (24mm) |
GLUA12CV024L0300 WW03W120C3 |
GLU-S1L0300WW360-12V |
Tungsten (WW) |
3200K (3100-3300K) |
40.32W | 3490lm | ||
|
GLUA12CV024L0300 NW03W120C3 |
GLU-S1L0300NW360-12V |
Natural White (NW) |
4000K (3800-4200K) |
40.32W | 3560lm | |||
|
GLUA12CV024L0300 SW03W120C3 |
GLU-S1L0300WW360-12V |
Daylight (W) |
5600K(5400-5800K)/ 6500K(6300-6700K) |
40.32W | 3600lm | |||
|
480LEDs (32mm) |
GLUA12CV032L0300 WW03W480C3 |
GLU-S1L0300WW480-12V |
Tungsten (WW) |
3200K (3100-3300K) |
51.84W | 4470lm | ||
|
GLUA12CV032L0300 NW03W480C3 |
GLU-S1L0300NW480-12V |
Natural White (NW) |
4000K (3800-4200K) |
51.84W | 4540lm | |||
|
GLUA12CV032L0300 SW03W480C3 |
GLU-S1L0300SW480-12V |
Daylight (W) |
5600K(5400-5800K)/ 6500K(6300-6700K) |
51.84W | 4560lm | |||
|
600LEDs (40mm) |
GLUA12CV040L0300 WW03W600C3 |
GLU-S1L0300WW600-12V |
Tungsten (WW) |
3200K (3100-3300K) |
67.2W | 5820lm | ||
|
GLUA12CV040L0300 NW03W600C3 |
GLU-S1L0300NW600-12V |
Natural White (NW) |
4000K (3800-4200K) |
67.2W | 5920lm | |||
|
GLUA12CV040L0300 SW03W600C3 |
GLU-S1L0300SW600-12V |
Daylight (W) |
5600K(5400-5800K)/ 6500K(6300-6700K) |
67.2W | 6000lm | |||
|
720LEDs (48mm) |
GLUA12CV048L0300 WW03W720C3 |
GLU-S1L0300WW720-12V |
Tungsten (WW) |
3200K (3100-3300K) |
86.4W | 7760lm | ||
|
GLUA12CV048L0300 NW03W720C3 |
GLU-S1L0300NW720-12V |
Natural White (NW) |
4000K (3800-4200K) |
86.4W | 8100lm | |||
|
GLUA12CV048L0300 SW03W720C3 |
GLU-S1L0300SW720-12V |
Daylight (W) |
5600K(5400-5800K)/ 6500K(6300-6700K) |
86.4W | 8200lm |
Note: 1. The tolerance of lumen fux and power is ±10% due to difference for test equipment.
2. The parameters may change without prior notice.
