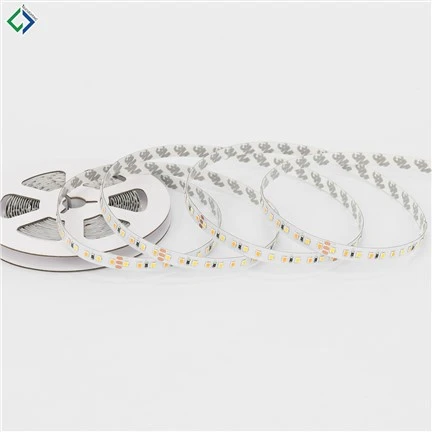

24V High CRI Bi Color Ra99 2835 Led Strip Tape 280 Led Per Meter
24V High CRI Bi Color Ra99 2835 Led Strip Tape 280 Led Per Meter
24V High CRI Bi Color Ra99 2835 Led Strip Tape 280 Led Per Meter
24V High CRI Bi Color Ra99 2835 Led Strip Tape 280 Led Per Meter
24V High CRI Bi Color Ra99 2835 Led Strip Tape 280 Led Per Meter
24V High CRI Bi Color Ra99 2835 Led Strip Tape 280 Led Per Meter
Description
Technical Parameters
24V high CRI Bi color Ra95/Ra99 2835 led strip CCT tunable led flexible strip light
1. High CRI: Superhigh Ra95 / Ra99, full spectrum R1-R15 above 90, TLCI 95, SDCM 3.
2. 3 year warranty
3. CE, RoHS, UL file No: E495503
4. 0.2W ultrabright 2835 SMD with Epistar chip as light source
5. Double layer PCB with ± 2 OZ Cu enables sufficient heat dissipation
6. Dual color W+WW CCT adjustable 2200K-7000K.
7. Available in both Constant voltage & constant current.
8. 12V/24V and 48V are available for choice.
9. OEM is our featured service.
Technical Parameter
| Typical Working Voltage | DC24V | Working Voltage Range | DC22-25V |
| LED Type | 2835 SMD | LED Qty./M | 280pcs |
| Color | Bi-color/Hybrid/CCT | Typical CCT | 2800K+6500K |
| CCT Customized Tungsten | 2000K-3200K | CCT Customized Daylight | 5600K-10000K |
| Product Dimensions(mm) | L5000×W10×H1.3 | Product Dimensions(in.) | L196.8×W0.39×H0.05 |
| Copper thickness | 3oz(1oz+2oz) | Cutting Points | 50mm(1.97in.) |
| Forward current/m | 2.5A(Max.) | Forward Wattage/m | 24W |
| Typic CRI | 95+ | Typical R1-R15 | 90+ |
| Typic TLCI | 95+ | Typical TM30 Data | Rg>95,Rf>95 |
| View Angle | 120 degree | Standard Length | 5m/reel |
| Connetion(Standard) | 3PIN Bare Cable | Installation | 3M 9080HL(Others optional) |
Typical Optical Characteristics
| Part No. | GLU-S2L01440BI-24V | |
| Color | Tungsten(Warm white) | Daylight(White) |
| Typical CCT | 2800K(2700-2900K) | 6500K(6300-6700K) |
| Power consumption/M | 40W | 4W |
| Lumen output/M | 2680lm | 2260lm |
| SDCM | <3 | <3 |
| Certification |    |
|
| Warranty | 3 Years | |
24V high CRI Bi color Ra95/Ra99 2835 led strip CCT tunable led flexible strip light
24V high CRI Bi color Ra95/Ra99 2835 led strip CCT tunable led flexible strip light FAQ
Q1: Can I get samples from your factory?
A: Yes, free sample is available.
Q2: If products have some quality problem, how would you deal with?
A: We will responsible for all the quality problems within the warranty.
Q3: What's the delivery time ?
A: 7 days for sample order, 12-15 days for formal order, and 15-20 days for customized order.
Q4. What is the standard of package?
A. Export standard package or customized package upon request.
Q5. Do you accept OEM business?
A. Yes, Customizing features are our featured services.
Hot Tags: 24v high cri bi color ra99 2835 led strip tape 280 led per meter, China, manufacturers, suppliers, factory, customized
Essential details
- Place of Origin: Guangdong, China
- Brand Name: GLU Light
- Model Number:GLU-FMN-BI-280
- Application:Warehouse
- Color Temperature(CCT): 2000k-7000k
- Lamp Body Material: Copper
- CRI (Ra>): 95
- Input Voltage(V): DC12V/DC24V/DC48V
- Lamp Luminous Flux(lm): 1235lm/m
- Warranty(Year): -Year
- Working Lifetime(Hour): 30000
- Working Temperature(℃): -25 - 60
- Color Rendering Index(Ra): Ra98
- Certification:BV, ce, EMC, FCC, RoHS, UL
- Light Source: LED
- Support Dimmer: Yes
- Lifespan (hours): 50000
- Working Time (hours): 40000
- Product Weight(kg): 0.2
- LED Light Source: 2835 SMD LED
- Emitting Color: White/warmwhite/cold white
- CRI: Ra90/Ra95/Ra99
- LED Chip:Epistar
- Brightness per led: 22-24lm
- Working voltage:DC12V/DC24V
- LED Qty: 60led/m,84led/m,120led/m,168led/m/240led/m and 280led/m
- PCB type: FPCB
