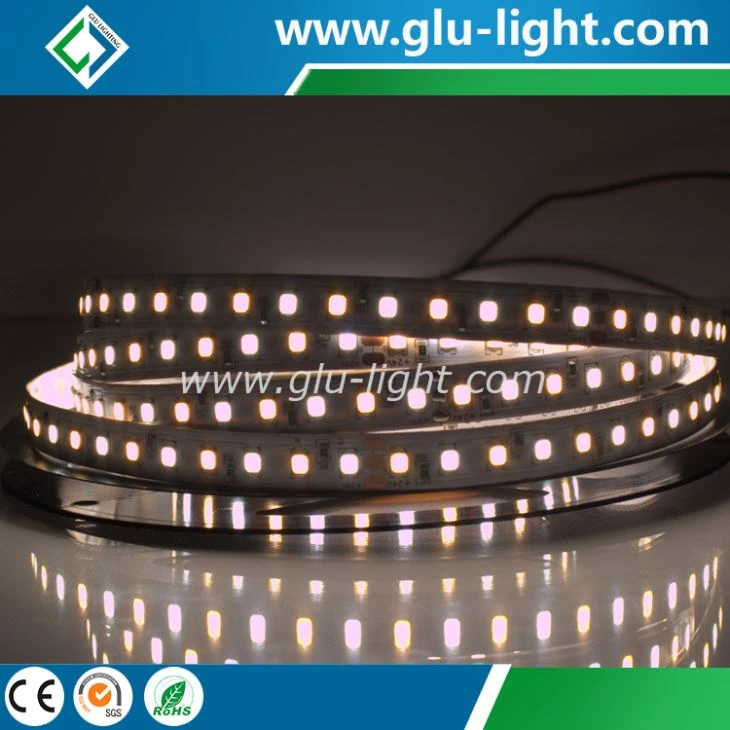

Ra97 High CRI 2835 60leds/m, 120leds/m W/WW Bi Color CCT Tunable Led Strip
Description
Technical Parameters
GLU Lighting, established in 2011, is one of the leading ra97 high cri 2835 60leds/m, 120leds/m w/ww bi color cct tunable led strip manufacturers and suppliers in China. Offering you customized service, we warmly welcome you to buy the high quality and beautiful ra97 high cri 2835 60leds/m, 120leds/m w/ww bi color cct tunable led strip from our factory.
Shenzhen Glu Lighting design and manufacture innovative high CRI high quality LED lighting products for years, and we strive to be an industry leader in High CRI, Consistent Color Temperatures LED technology. Our high CRI led strip series come with a good compromise in high efficiency, high lumen and high CRI. We design, develop and distribute LED products that are designed specifically for film, cinema, television, and anywhere high quality lighting is required.
High CRI led strip will show an object true pure and vibrant color.
This product was initially designed to be used for professional photographers and the film industry. Now these LED strip lights are commonly installed in a wide variety of applications such as:
6. Art lighting etc.
GLU Light Flexible led Strip range:
--3528 smd led: 30leds/m, 60leds/m, 120leds/m, 180leds/m, 240leds/m(single row and double row);
--5050 smd led: 30leds/m, 60leds/m, 90leds/m, 120leds/m(double row)
--2835 smd led: 30leds/m, 60leds/m, 84leds/m, 120leds/m (single row) Samsung 2835 led strip is available.
--5630 smd led: 30leds/m, 60leds/m, 120leds/m (double row), Samsung 5630 is available
--RGBW led strip: 4 in one(60/72/84/96leds/m)
5050 single RGB+ 5050 single W/WW(60/72/96/120/144leds/m)
--CCT adjustable led strip: 3528 120/240 leds/m, 5050 60leds/m, 2835 60/120 leds/m; 3014 240leds/m; 5630 60led/m and 120 leds/m. side view 3014 120leds/m bi color led strip and so on.
--digital strips WS2811,WS2812,SK6812,APA102 etc.
--2835/5050 Neon flexible led strips
Hot Tags: ra97 high cri 2835 60leds/m, 120leds/m w/ww bi color cct tunable led strip, China, manufacturers, suppliers, factory, customized
Absolute Maximum Rating at TA=25°C
|
Parameter |
Symbol |
Absolute Maximum Rating |
Unit |
|
Forward Current |
IF |
425 |
mA |
|
Forward Voltage |
VF |
DC24V |
V |
|
Electrostatic discharge |
ESD |
400 |
V |
|
Operating Temperature |
Topr |
-25~+60 |
°C |
|
Storage Temperature |
Tstg |
-40~+80 |
°C |
Electrical / Optical Characteristics at TA=25°C
|
Part No. |
Color |
CCT/WLD |
Lumen Flux |
Current |
Power |
View Angle |
|
FMN-W-60 |
White |
6000-7000K |
1235lm |
0.425A |
10.2W |
120° |
|
FMN-WW-60 |
Warm White |
2800-3200k |
1120lm |
Note: 1. The lumen flux tolerance is ±5%;
2. The data above is based on 1 meters;
3. Test Temperature (Ambient temperature: TA=25°C)
