High CRI 2835 Hybrid LED Strip 240leds 48V Double Rows With UL Standard
● High CRI 2835 LED Strip double rows Hybrid Strip with 240leds/m, 120pcs each CCT;
● 16mm width PCB design with 100mm cuttable;
● Cinema-quality 2835 SMD with flame/tungsten CCT from 2000K-3500K, combained with daylight sources CCT from 5000K to 10000K and among;

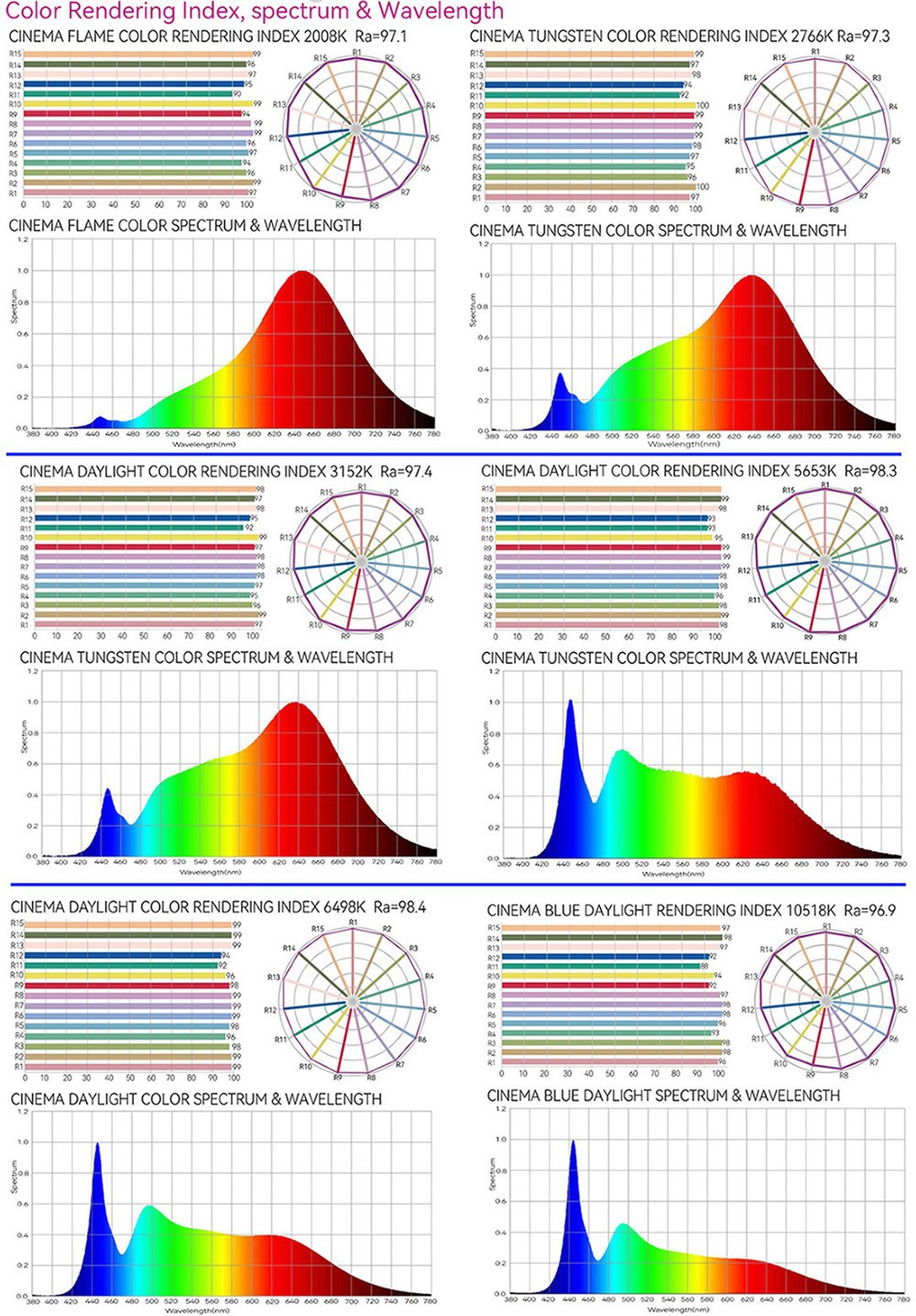

● High CRI 95+, with full spectrum R1-R15 all above 90, all TLCI>95;
● For standard we make CCT with 2800K,3200K for Tungsten and 5600K,6500K for Daylight, which is the most popular CCT for film industry.
● And full series are come with UL/CUL standard for the US/Canada and CE/ROHS for Europe.
Description
Technical Parameters
![]()
![]()
CINEMA Hybrid Color R2 2835 double rows 48V version GLU-S2L0300BI240-48V is one of the Multi-rows Flex LED Ribbon™ Series, which is a popular series in the CINEMA Strip Series.
We are proud to offer a top line series of strip products specifically designed for the film industry and high-end projects, where a true color is desired. Our double rows 2835 hybrid color LED strips are the perfect solution for creating stunning visual effects and capturing exquisite detail.

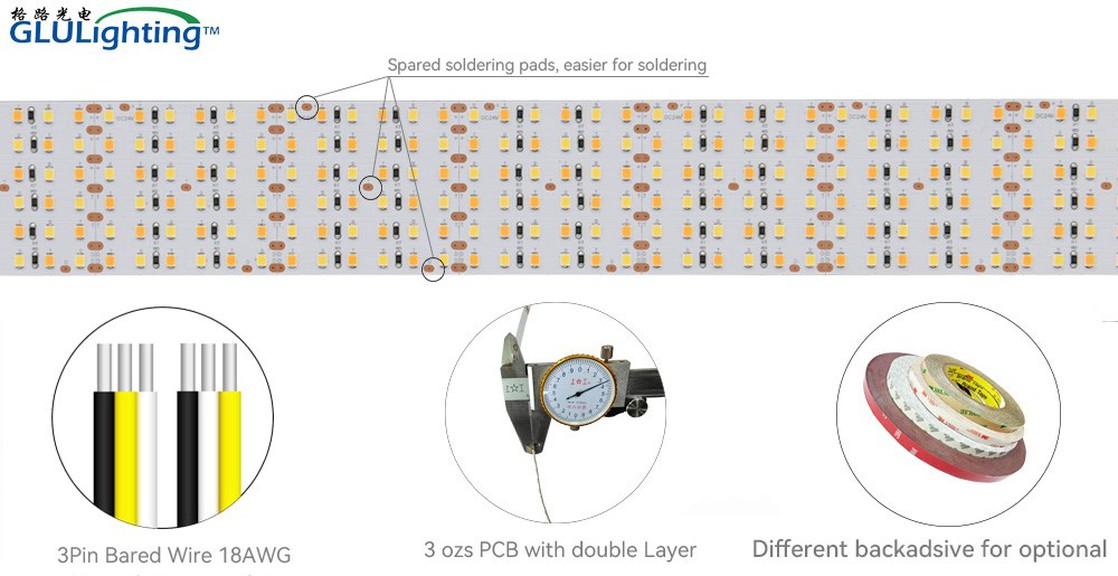

The whole series are featured with double-layers FPCB with 3oz copper, for maximum durability and longevity. We use the cinema-quality emitters 2835 SMD LED with quality gold wire and ultra-bright chips, ensuring a high lumen output and color consistency throughout the entire production process. The whole series include flame/tungsten from 2000K-3500K, combined with daylight sources from 5000K with 10000K and among, with CRI over 95, a TLCI over 95, and full-spectrum R1-R15 value all above 90, our products are sure to impress even the most discerning industry professionals. For standard CCT we use 2800K for Tungsten plus 5600K or 6500K for Daylight, which is most popular in the film industry.
The double rows 2835 LED strips is designed with 16mm width and cuttable with 100mm length, versatility and flexibility to meet various project needs. No matter the size and scope of your project, we have the perfect lighting solution to help you achieve your creative vision.
Our products are not only perfect for film and TV production, but also suitable for high-end projects like luxury store, Museum etc. We believe that our products can help bring our customer's vision to life while also creating an immersive and engaging environment.
In conclusion, we are proud to offer one of the most comprehensive and cutting-edge series of double-rows 2835 hybrid color LED products on the market. With our top-of-the-line features and unparalleled quality, we are confident that our products are the right choice for your next project.
So why not contact us today and let us help you achieve your creative goals?
![]()

![]()








![]()
1. Can we get Sampels?
Yes, we offer samples, for short piece we can send free samples, customer just should cover the shipping cost. Also a sample order is welcomed, mixed samples are acceptable.
2. How long can we get samples?
Normally we can send samples within 3- 5days, as we have main materials for samples in stock toensure a fast delivery, and mixed samples with many models might be 5-7days for normal.
3. What's the lead time for a normal order?
For Normal standard order the delivery time is 10-15days, and for special required order delivery time is around 15days.
4. Do you have a MOQ for samples order and standard orders?
For samples 1meter or 1pcs is available, but for standard products MOQ is 100meter for strip & 5pcs for panels.
5. How to buy our products?
When you contact our professional sales, just tell our sales your detail requirement or products you would like to order, and once samples are verified, let us know the quantity, and our sales will process you the invoice for production.
6. How can we pay the order, and how to send our goods?
We offer different payment method, T/T, Paypal or order through Ali trade assurance is welcomed. Normally for standard order, we will send them by DHL, FedEX, UPS etc. and also airshipment and seashipment is optional.
7. Do you offer customized products or offer logo print?
Yes, we have an experienced R & D team, you can let us know your details requirement, and then we will make special design for you, after sampels confirmed, we can process mass production. To print logo on label is offered in small order, and for printing on PCB, we have an MOQ of 500 m for strip, and 50pcs for panels.
8. What's the warranty of your products?
For standard products our warranty is 3 years, and we can also offer a 5 years warranty or even longer based on different products.
9. Can we get a constant color between each order?
We have many years production experience for led products with high CRI solutions, all LEDs for our standard CCT are come with same bin for each order. So we will keep mostly the same color.
10.How to deal with faulty?

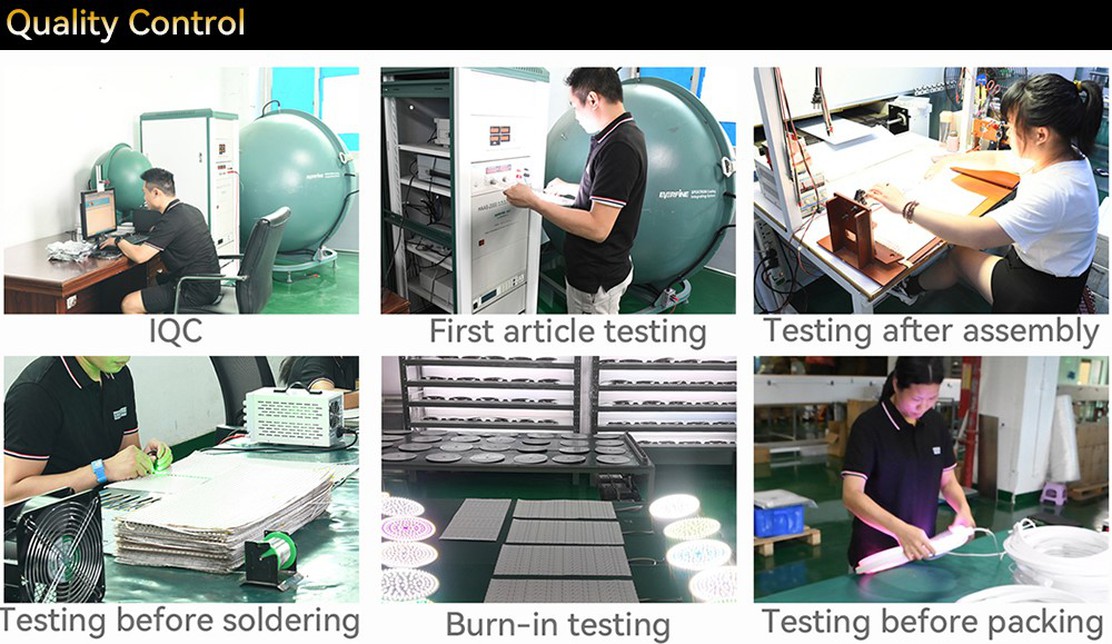

We offer high end led products, all our products from materials to finished products are under strict quality inspection, however, for an electronic products, nobody can ensure 100% prefect, so frankly speaking we have a defective ratio less than 0.1%. Once the products get fault during guarantee time, after confirm the defective reason, we will offer replacement with new order for small quantity.
For batch defective, we will discuss best solutions to get problem solved.
Hot Tags: high cri 2835 hybrid led strip 240leds 48v double rows with ul standard, China, manufacturers, suppliers, factory, customized
![]()
| Typical Working Voltage | DC48V | Working Voltage Range | DC31-50V |
| LED Type | 2835 SMD | LED Qty./M | 240PCS |
| Color | Bi-color/Hybrid/CCT | Typical CCT | 2800K+6500K |
| CCT Customized Tungsten | 2000K-3200K | CCT Customized Daylight | 5600K-10000K |
|

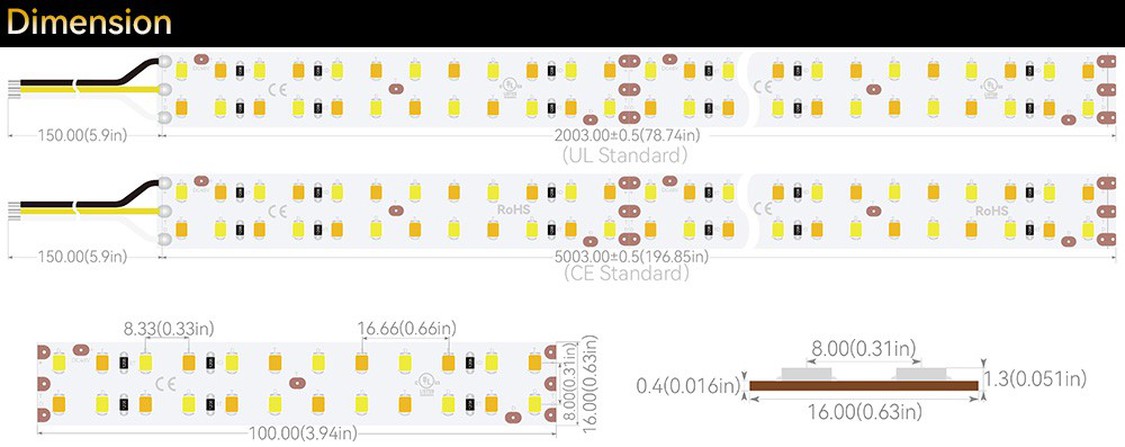

Product Dimensions (mm) |
L2000×W16×H1.3 (UL Standard) L5000×W16×H1.3 (CE Standard) |
Product Dimensions (in.) |
L78.74×W0.63×H0.051 (ULStandard) L196.85×W0.63×H0.051 (CE Standard) |
| Copper thickness | 3oz(1oz+2oz) | Cutting Points | 100.00mm(3.94in.) |
| Forward current/m | 0.9A(Max.) | Forward Wattage/m | 43.2W |
| Typic CRI | 95+ | Typical R1-R15 | 90+ |
| Typic TLCI(T/D) | 95+ | Typical TM30 Data(T/D) | Rg>95,Rf>95 |
| View Angle | 120 degree | Standard Length | 2m/reel(UL Standard), 5m/reel(CE Standard) |
| Connetion(Standard) | 3PIN Bare Cable | Installation | 3M 9080HL(Others optional) |

| Product Code | GLUA48CV016L0300BI12W240C3 | ||
| Part No. | GLU-S2L0300BI240-48V | ||
| Color | Tungsten(Warm white) | Daylight(White) | |
| Typical CCT/WLD | 2800K(2700-2900K) |
5600K(5400-5800K)/6500K(6300-6700K) |
|
| Power consumption/M | 21.6W | 21.6W | |
| Lumen output/M | 1730lm | 1955lm | |
| SDCM | <3 | <3 | |
| Certification | |
||
| Warranty | 3 Years | ||
Note: 1. The tolerance of lumen fux and power is ±10% due to difference for test equipment.
2. The parameters may change without prior notice.
