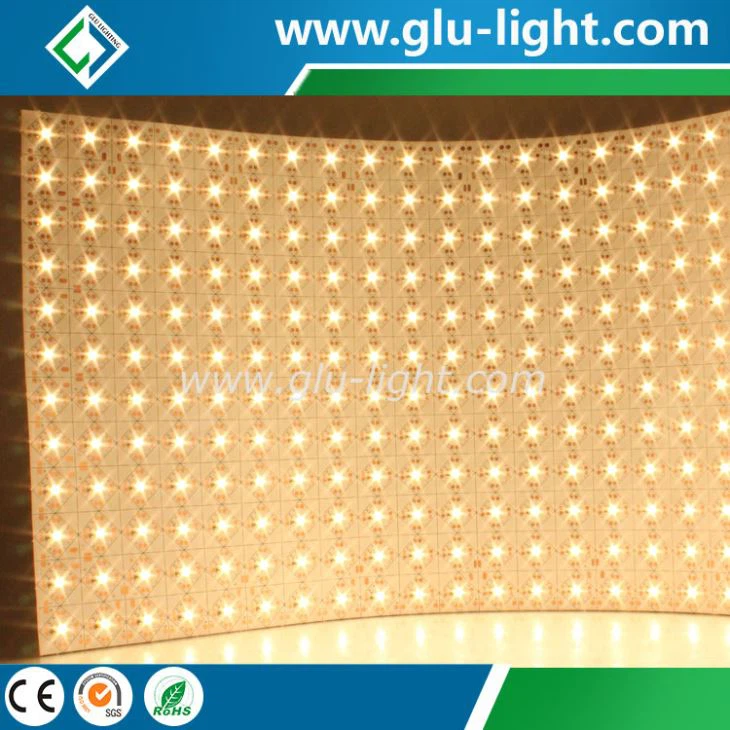

OEM Ra97 4OZ pcb 3000K 2835 flexible led panel for sign/light box
OEM superhigh CRI Ra95/Ra97 12V/24V 3200K flexible 2835 led panel
Superhigh CRI Ra97 12V 24*48cm 3500K 2835 flexible led panel
12V/24V Ra97 2835 2600k warmwhite flex led panel for film industry

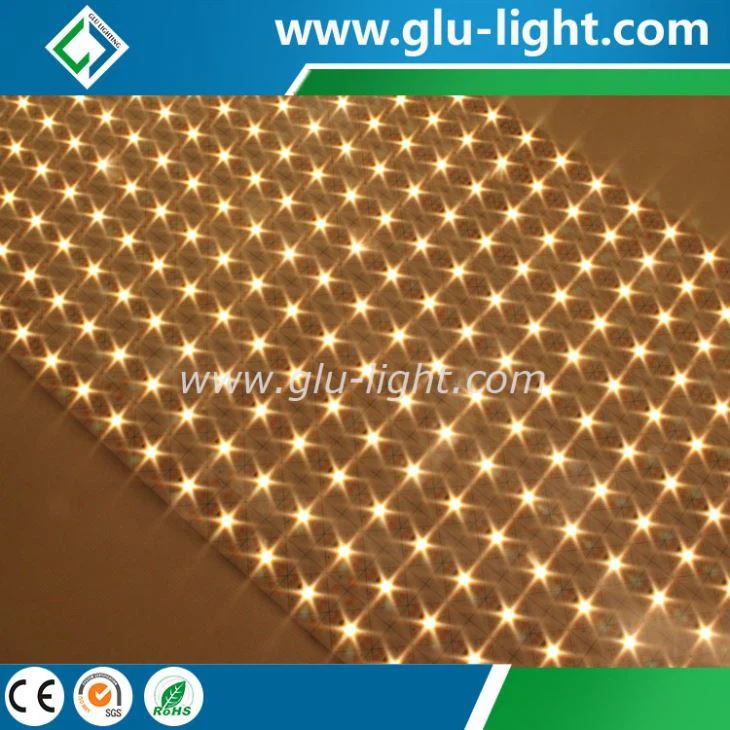

Customized 24*48cm 4 OZ PCB 2400K warmwhite flexible led panel
12V Customized 24*48cm Ra97 2200K warmwhite 2835 flex led panel
12V/24V high quality Ra97 2000K warmwhite 2835 flex led panel

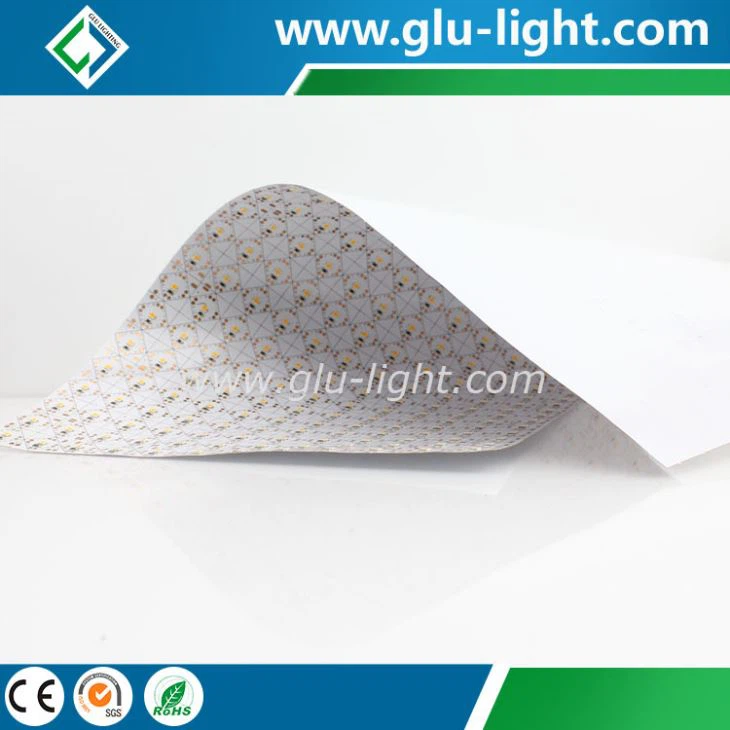

Customized high CRI Ra95 2600K-2800K warmwhite 2835 flex led panel
High cri Ra97/Ra95 warmwhite 2800-3000K 2835 LED flex panel
12V/24V 24*48cm High CRI Ra97 2800K Warmwhite 2835 Flex Led Panel
Description
Technical Parameters
GLU Lighting, established in 2011, is one of the leading 12v/24v 24*48cm high cri ra97 2800k warmwhite 2835 flex led panel manufacturers and suppliers in China. Offering you customized service, we warmly welcome you to buy the high quality and beautiful 12v/24v 24*48cm high cri ra97 2800k warmwhite 2835 flex led panel from our factory.
High CRI 2835 Ra97/Ra95 flex led panel , 12V 24V high power Ra97 led flex panel light
1. High CRI: Ra95 / Ra97 is available.
2. Single led is cuttable, follow the solid line.
3. 12V/24V is available.
4. 300pcs 0.2W ultrabright Ra95 2835 SMD with Epistar chip as light source
5. Double layer PCB with ± 2 OZ Cu enables sufficient heat dissipation
6. 3 year warranty,CE, RoHS;
7. Size and led quantity can be customized. Bi color version is also available.
8. Heat sink is strongly recommended.
High CRI 2835 Ra97/Ra95 flex led panel , 12V 24V high power Ra97 led flex panel light Feature
1. Great light source: Super high CRI Ra95 0.2W 2835 SMD LED strip light, top quality Epistar chip 2835 SMD LEDs with high lumen LEDs 22-24lm.
2. Double-faced soft FPC with 4 ounce thicker copper layer.
3. Standard size is 24*48cm, standard led quantity is 300 pcs led as light source. Size and led quantity can be customizd.
4. Different colors for choice for different applications: cold white, natural white, warm white for different
applications.
5. Environmental friendly: complied with CE and RoHS standard without harmful substance, such as lead or Mercury.
6. 3 Years warranty.
High CRI 2835 Ra97/Ra95 flex led panel , 12V 24V high power Ra97 led flex panel lightTechnique Data
Absolute Maximum Rating at TA=25°C
|
Parameter |
Symbol |
Absolute Maximum Rating |
Unit |
|
Forward Current |
IF |
8400 |
mA |
|
Forward Voltage |
VF |
DC24V |
V |
|
Electrostatic discharge |
ESD |
400 |
V |
|
Operating Temperature |
Topr |
-25~+60 |
°C |
|
Storage Temperature |
Tstg |
-40~+80 |
°C |
Electrical / Optical Characteristics at TA=25°C
|
Part No. |
Color |
CCT/WLD |
Lumen Flux |
Current |
Power |
View Angle |
|
GLU-HFP-300-24 |
White |
6000-7000K |
13800lm |
8.4A |
201W |
120° |
|
GLU-HFP-300-24 |
Warm White |
2800-3200k |
12000lm |
Note: 1. The lumen flux tolerance is ±5%;
2. The data above is based on 1 pcs;
3. Test Temperature (Ambient temperature: TA=25°C)
High CRI 2835 Ra97/Ra95 flex led panel , 12V 24V high power Ra97 led flex panel light Application
Our Featured products:
1. 5050 RGBW /RGBA 4 in 1 Led Strip
2. High brightness 3014 Side view Led strip
3. Ra97 / Ra95 2835/5630/3014 single color Led strip
4. SK9822/APA102/WS2811/WS2812B/WS2813 digital RGB Led strip.
5. Ra97 2835/3014/5630/5050/3527 CCT adjustable Led strip
High CRI 2835 Ra97/Ra95 flex led panel , 12V 24V high power Ra97 led flex panel light Product photo:
Fully product inspection to make sure each product is perfect before shipment.
Warmly welcome trying our sample to start.
Welcome you to visit our factory at any time!
Any further questions,pls feel free to contact us! We are look forward to work together with you!
