Cinema Hybrid Cuttable 12V 2835 LED Light Panel Flexible
Cinema Hybrid Cuttable 12V 2835 LED Light Panel Flexible suppliers
Cinema Hybrid Cuttable 12V 2835 LED Light Panel Flexible factory
Cinema Hybrid Cuttable 12V 2835 LED Light Panel Flexible best
Cinema Hybrid Cuttable 12V 2835 LED Light Panel Flexible high quality
Cinema Hybrid Cuttable 12V 2835 LED Light Panel Flexible price
Cinema Hybrid Cuttable 12V 2835 LED Light Panel Flexible price
Cinema Hybrid Cuttable 12V 2835 LED Light Panel Flexible suppliers
Cinema Hybrid Cuttable 12V 2835 LED Light Panel Flexible
● 288leds/pcs with DC12V design;
● Dimension 480×240mm with minimal cuttable size 120×40mm;
● Checkboard design for even lighting distribution;
● Cinema quality 2835 SMD with Ra>95, R1-R15>90,TLCI>95;
● Perfect for professional-grade studio lighting and high-level accent lighting for film, photography, fashion, art, backlight, etc;
● CE Certificated and UL/CUL Listed;
● Come with 3 years warranty.
Description
Technical Parameters
Main Descriptions
CINEMA Hybrid 2835 LED Flex Panel ™ Series is one of the most popular series in the Flexible Panel family. CINEMA Hybrid LED Flex Panel ™ series use tungsten/flame combined with daylight sources CCT from 2000K with 10000K and among, high CRI 95+, with full spectrum R1-R15 all above 90, all TLCI>95, which offers realiable true color and give you a incredible color reproduction. By using your professional high frequency controller or DMX decoder supplied from GLU Lighting, it can achieve all CCT between.Cuttable with DC12V, DC24V and different density for choice, with 120 degree view angle allows for soft, even output even at close distances. Extremely vrsatile, light-weight, color-correct, and economical make all these LED Mat a hit with cinematographers and DOPs alike.
● Working voltage DC12V;
● Product dimension 480×240mm;
● Cuttable with 120×40mm;
● Checkboard layout with even light distribution;
● Cinema quality 2835 SMD as Light sources;
● 288leds/PCS(2835Tungsten/2835 Daylight each 144pcs);
● Wide CCT range Selectable: Tungsten from 2000K-3500K, Daylight from 5000K-10000K;
● 50W/pcs with High Brightness;
● UL/CUL Listed with file No. E495503, CE certificated and RoHS Compliant.

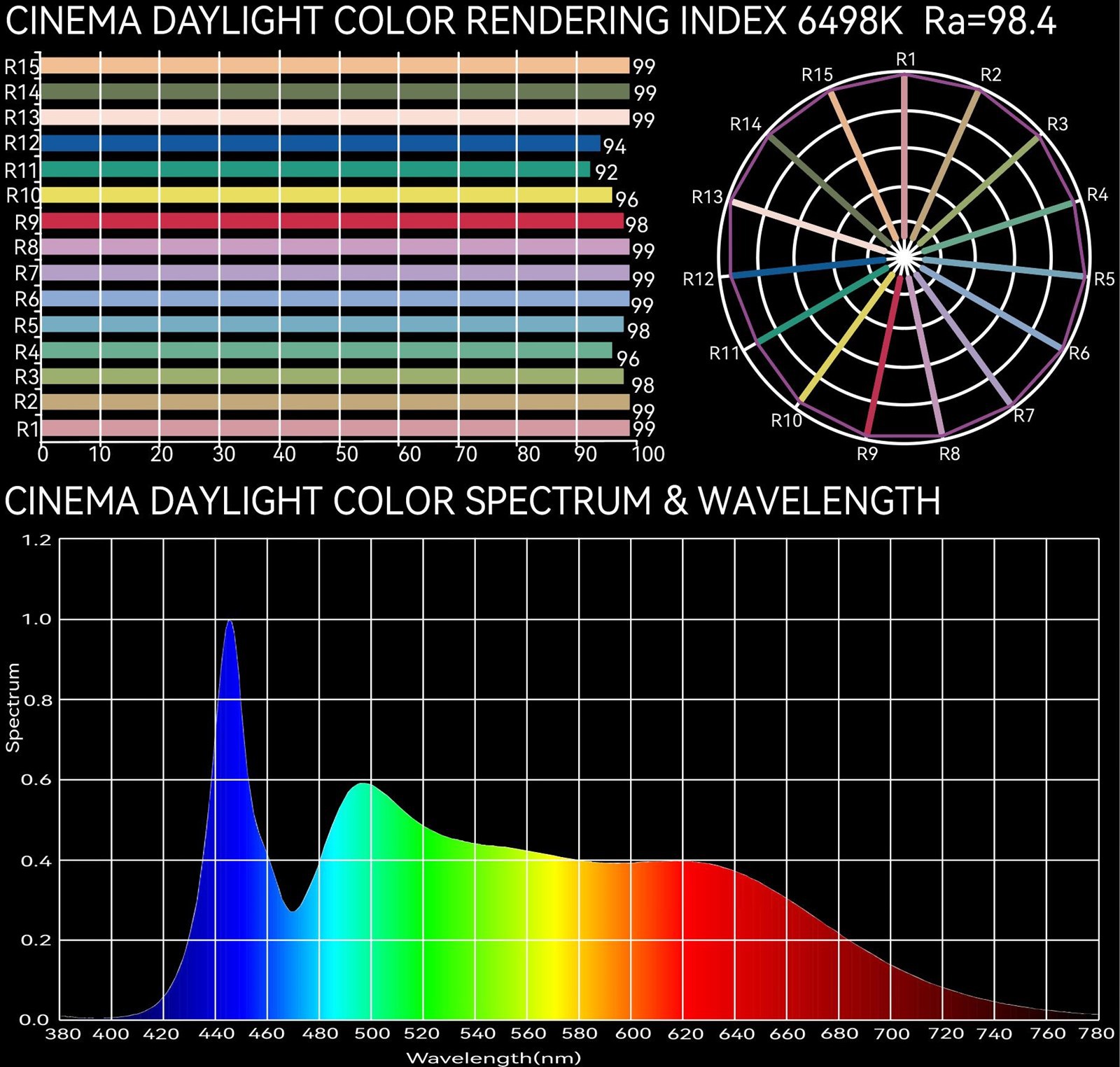

CRI, Spectrum & Wavelength for tungsten & Daylight

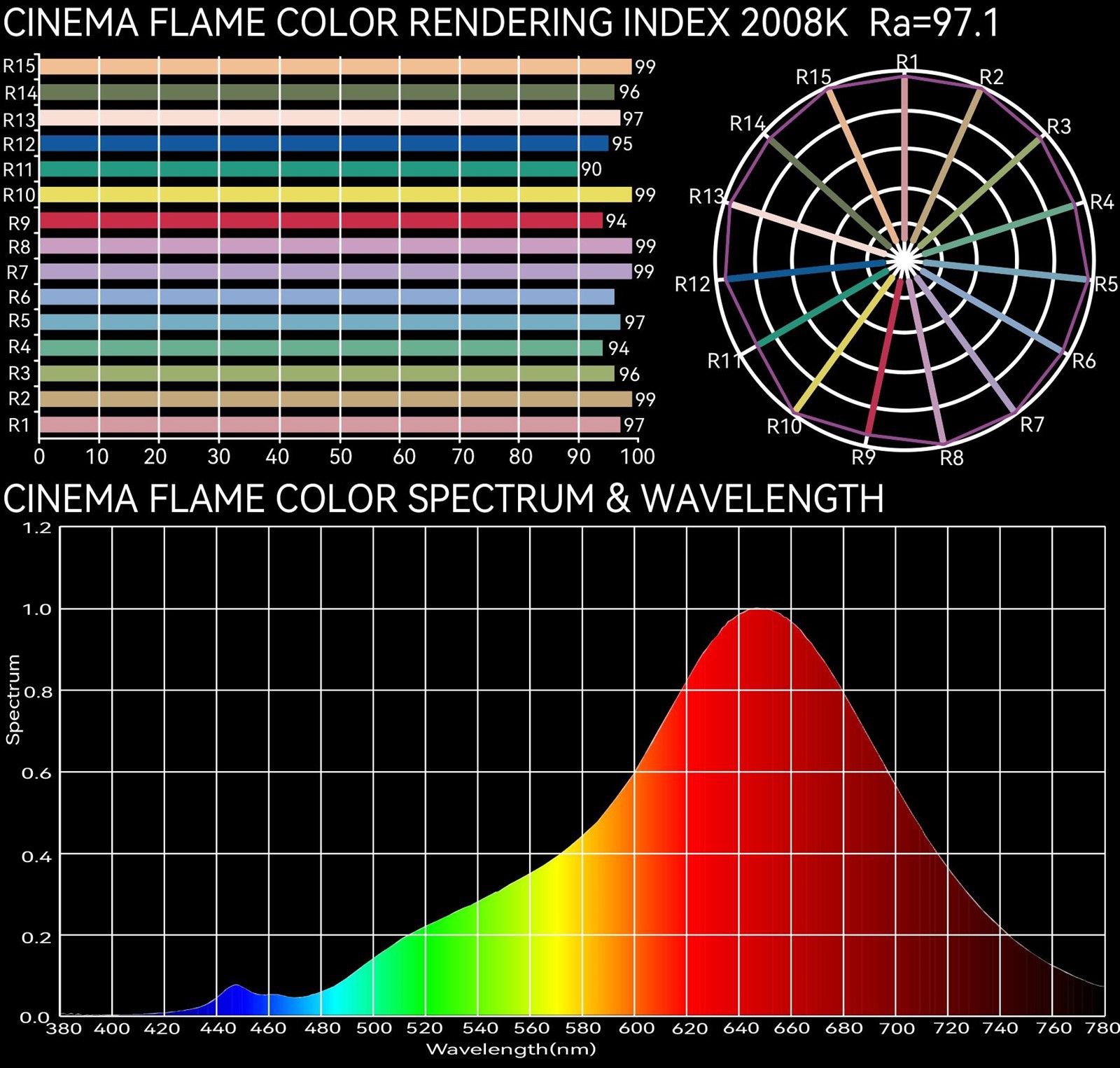

For white color CCT from 2000K-10000K
5600K
6500K

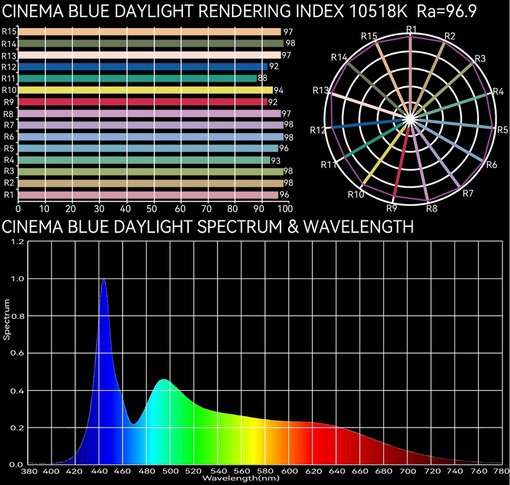

10000K
Product details
For our Cinema Hybrid Cuttable 12V 2835 LED Light Panel Flexible come with thicker 3oz copper( 1oz on top and 2oz on bottom) for higer voltage and lower voltage drop. 18AGW bare wire for standard for lower voltage drop, and also we offer other customized connector. The flexible panels comes with 3M 9080HL backadhesive which makes you easy to use the panels, just peeled and stick on anywhere you will use the panels, and espically suitable for aluminum surface using. Besides the standard 3M 9080HL adhesive, also other backadhesive available like 300LE tape, 3M VHB or TESA tape etc.

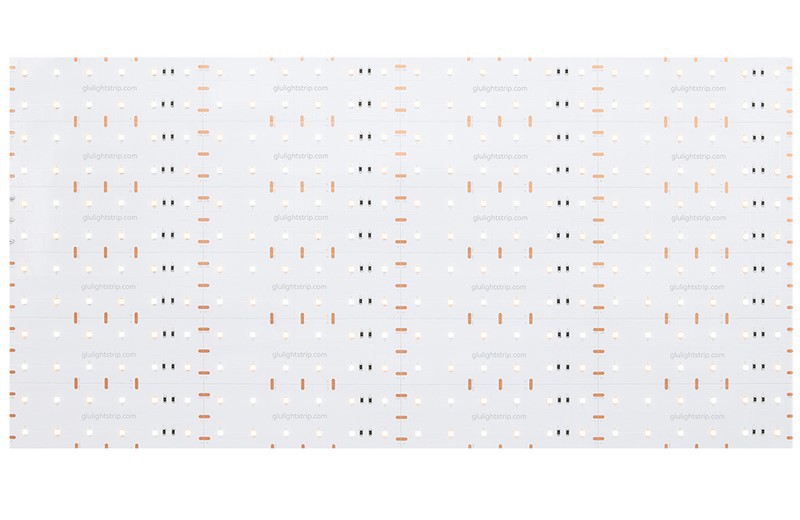

Product Dimension
The Cinema Hybrid Cuttable 12V 2835 LED Light Panel Flexible comes with dimension 480(18.9in.)*240mm(9.45in.) and cuttable with 120mm(4.72in.)*40mm(1.57in.)
product packing
why choose us
Our products are provided all wrold round, welcome to contact us for more products and nore information.
Rich Experience
We have over 13 years experience in LED industry and over 10 years experiance of high CRI products for film industry.
Self R & D
We have professional team, who have a rich experience in high end strip products, and we have a series of self R&D products to meet your different requirement.
Strict Quality Control
We have a strict quality control system according to ISO, and we have strict quality control process during all production.
OEM & ODM Services
Besides our self R&D products, we also offer OEM and ODM for our customer all world wide, for any LED strip related products, give us your idea, we will offer best products for you!
Products Certifications
Our factory
R & D
quality Control

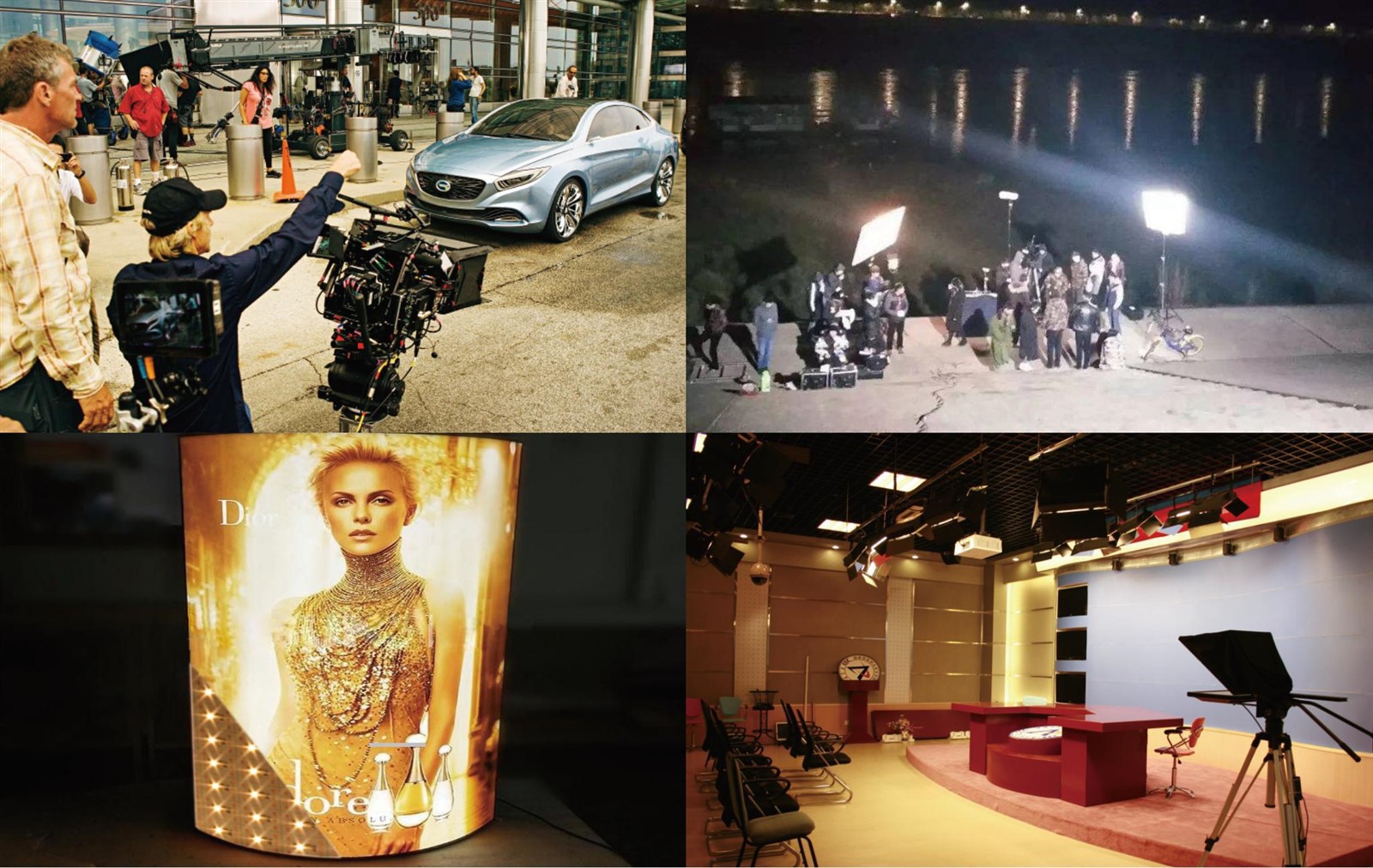

Products application
For Cinema Hybrid Cuttable 12V 2835 LED Light Panel Flexible, which are designed to be used for film, television, backlight and wherever a desire for high quality lighting is required. With richable color available and they are fantastic in tight spaces and for shooting on location. Extremely vrsatile, light-wight, color-correct, and economical make these CCT flexible LED panels a hit with cinematographers and DOPs alike. Thus for the whole panel series are suitable and widely usde for film, TV, studio, photographic studio, news studio, liveing shows, commercial shooting,backlight etc.
Hot Tags: cinema hybrid cuttable 12v 2835 led light panel flexible, China, manufacturers, suppliers, factory, customized
Technical Parameters
| Typical Working Voltage | DC12V | Working Voltage Range | DC8-13V |
| LED Type | 2835 SMD | LED Qty./PCS | 288PCS (Tungsten/Daylight each 144PCS) |
| Color | Bi-color/Hybrid/CCT | Typical CCT | 2800K+6500K |
| CCT Customized Tungsten | 2000K-3200K | CCT Customized Daylight | 5600K-10000K |
| Product Dimensions(mm) | L480×W240×H1.3mm | Product Dimensions(in.) | L18.9×W9.45×H0.051in. |
| Copper thickness | 3oz(1oz+2oz) |
Min. Cutting Units |
120.00×40mm(4.72×1.57in.) |
| Forward current/PCS | 4.17A(Max.) | Forward Wattage/pcs | 50W |
| Typic CRI | 95+ | Typical R1-R15 | 90+ |
| Typic TLCI(T/D) | 95+ | Typical TM30 Data(T/D) | Rg>95,Rf>95 |
| View Angle | 120 degree | Connetion(Standard) | 3PIN Bare Cable |
| Installation | 3M 9080HL(Others optional) |
Typical Optical Characteristics
| Product Code | GLUB12CV424L0300BI03W288C3 | |
| Part No. | GLU-P2L0300BI288-12V | |
| Color | Tungsten(Warm white) | Daylight(White) |
| Typical CCT | 2800K(2700-2900K) | 6500K(6300-6700K) |
| Power consumption | 25W | 25W |
| Lumen output | 2050lm | 2300lm |
| SDCM | <3 | <3 |
Note: 1. The tolerance of lumen fux and power is ±10% due to difference for test equipment.
2. The parameters may change without prior notice.
Send Inquiry
