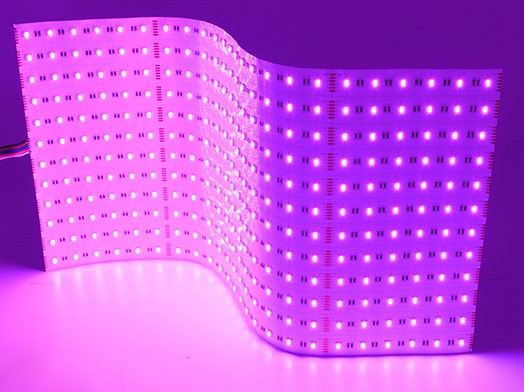

CINEMA Chroma 24V 288leds RGBCCT 5-in-1 Flex Panel
● 288leds/pcs with 24V design;
● Dimension 480×240mm, Cuttable
● 5050 RGBTD 5-in-1 SMD with high brightness;
● Cinema quality,with Ra>95, R9>90,R12>85,TLCI>95 for white color;
● Perfect for professional-grade studio lighting and high-level accent lighting for film, photography, fashion, art, backlight, etc;
Description
Technical Parameters
CINEMA Chroma 24V 288leds RGBCCT 5-in-1 Flex Panel is one of the most popular product series to the Chroma Mat family. . They are come with 5050 RGBTungsten-Daylight 5-in-1 SMD and cinema quality tungsten and daylight color, Ra>95, full sperum R9 above 90 and R12 above70, TLCI>95. Designed for cinema, television, viedo, by using professional high frequency controller or 4 channels DMX decoder supplied by GLU Light, you can achieve more rich colors, and correct colors in a large area, with 120 degree view angle allows for soft, uniform output even at close distance. They are vrsatile, lightweight, color-correct and economical makes all thest light mat a hit with cinematographers and DOPs alike.
01
High Quality
Cinema quality 5050RGBCCT 5-IN-1 SMD are used, for white color with Ra95+, 3OZ Cooper with low voltage drop and high power handling capacity.
02
Cuttable
CINEMA Chroma 24V 288leds RGBCCT 5-in-1 Flex Panel designed with 480×240mm, cuttable with minimal cuttable size 120×20mm with each 3leds.
03
2 Types of 5050 RGBTD 5-IN-1 SMD
We offer two kinds of different shaped 5050 RGBTD 5-IN-1 smd, with round shape and square shape, which apply for different requirement of customer.
04
UL/CUL,CE certificated
CINEMA Chroma 24V 288leds RGBCCT 5-in-1 Flex Panel comes with UL/CUL Standard(File No. E495503 for North America, and CE Certification for Europe.
CINEMA Chroma 24V 288leds RGBCCT 5-in-1 Flex Panel Details
3OZ Copper and 2 types of 5-in-1 SMD available
The CINEMA Chroma 24V 288leds RGBCCT 5-in-1 Flex Panel comes with 3oz thicker PCB, and 2 different shape of 5050 RGBTD 5-IN-1 SMD, include round shape and square shapped.
18AWG Thicker 6PIN Bare Wire
The CINEMA Chroma 24V 288leds RGBCCT 5-in-1 Flex Panel use 18AWG Thicker 6PIN Bare Wire wire, which with low voltage drop and high power handling capacity.
Different Backadhesive available
The CINEMA Chroma 24V 288leds RGBCCT 5-in-1 Flex Panel with 3M 9080HL for standard and also others like 3M VHB, Tesa tape are avilable for choice.
CRI SPECTRUM & WAVELENGTH FOR RGB, TUNGSTEN & DAYLIGHT
Red Color 621.2nm
Green Color 523.6nm
Blue Color 466nm
Tungsten Color 2795K Ra=97.9
Daylight Color 6479K Ra=96.2
CINEMA Chroma 24V 288leds RGBCCT 5-in-1 Flex Panel Dimension
CINEMA Chroma 24V 288leds RGBCCT 5-in-1 Flex Panel Light Effiect
CINEMA Chroma 24V 288leds RGBCCT 5-in-1 Flex Panel packing Details
CINEMA Chroma 24V 288leds RGBCCT 5-in-1 Flex Panel Applications
CINEMA Chroma 24V 288leds RGBCCT 5-in-1 Flex Panel, which are designed with RGB LED combined with Tungsten and Daylight in one LED, for white with Ra95+, TLCI above 95, they are widely used for film, television, and wherever a desire for high quality lighting is required. With richable color available and they are fantastic in tight spaces and for shooting on location. Extremely vrsatile, light-wight, color-correct, and economical make these RGB+Bi color flexible LED panels a hit with cinematographers and DOPs alike. Thus for the whole strips series are suitable and widely usde for film, TV, studio, photographic studio, news studio, liveing shows, commercial shooting etc. Also they are an idea products for backlight use where rich color is requested, with high CRI, which will give you a real color and vivid picture sense.
Our Advantage
We are looking for a cooperative partner to expand our business.
globalist
Our products are sell world wide, with certification for different application, we have UL/CUL certiifcation for North America, with File number E495503. CE, Rohs certiifcation for Europe.
rich Experience
We have over 16 years experience in LED industry, and with over 14 years experience for High CRI production solutions for film industry. We have a professional team for R & D and sales team.
Strict Quality Control
We have a strict quality control system according to ISO, and we have strict quality control process during all production.
OEM & oDM serives
We have professional team, who have a rich experience in high end products, besides our standard products we can make any related customized products to meet your different requirement.
Self R & D
We have professional engineer team for R & D, we can may any led related products according to any of your idea.
Fast delivery
For the popular products we have stocked PCB for fast delivery, for samples around 5-7days, and for mass production around 15days.
Our Company
Quality Control
Our Exhibitions
Our Certification
Shipment and payment
Something You May want to Know
There will be something you may want to know about our CINEMA Chroma 24V 288leds RGBCCT 5-in-1 Flex Panel?
What is a CINEMA Chroma 24V 288leds RGBCCT 5-in-1 Flex Panel?
CINEMA Chroma 24V 288leds RGBCCT 5-in-1 Flex Panel is a flexible panel use super quality flexible PCB with 3oz copper which is flexible and bendable, with high CRI 5050 RGBTD 5-IN-1 SMD, for white color, with Ra over 95, and R9 over 90, which is critical for accurate skin tones, food, and wood textures. With these features, the CINEMA Chroma 24V 288leds RGBCCT 5-in-1 Flex Panel is widely used for film, cinema, studio, advertismenet etc.
Are they Cuttable?
Yes, the CINEMA Chroma 24V 288leds RGBCCT 5-in-1 Flex Panel is designed with 480*240mm, which is popular in the film industry, and they are come with cuttable, with minimal cuttable size 120*20mm with 6 leds per unit.
What's the CCT for the tungsten and daylight color in the RGBCCT 5-IN-1 SMD?
For our CINEMA Chroma 24V 288leds RGBCCT 5-in-1 Flex Panel, they are come with Red-Green-Blue-Tungsten-Daylight five colors in one LED. As for the CCT of the tungsten and daylight, for standard, the tungsten comes with 2800K(2700-2900K), and for daylight comes with 6500K(6400k-6700K), which are popular in the film industry, and also some other CCT is available as customized.
How does it manage heat?
For our CINEMA Chroma 24V 288leds RGBCCT 5-in-1 Flex Panel, we use flexible PCB with 3oz thicker PCB, which makes the flexible panels with low volage drop and higher current carry ability, and also a good heat dissipation capacity to ensure the super performance and long use life.
Hot Tags: cinema chroma 24v 288leds rgbcct 5-in-1 flex panel, China, manufacturers, suppliers, factory, customized
CINEMA Chroma 24V 288leds RGBCCT 5-in-1 Flex Panel parameters
| Product Code | GLUB24CV424L0200FP06W288C3 | Part Number | GLU-P5L0200FP288-24V |
| Color | RGBTD | LED Qty. /PCS | 288PCS |
| Working Voltage | DC24V | Working Voltage Range | 18-26 VDC Constant Voltage |
| Max. Current per PCS | 4.16A | Max. Power per PCS | 100W |
| Current for each Color | R 0.86A /G 0.86A/B 0.86A/T 0.86A/D 0.86A | Power for each Color | R 20.73W/G 20.73W/B 20.73W/T 20.73W/D 20.73W |
| WLD Colors | R 620-625nm G 520-525nm B 460-465nm | CCT Whites (Typ.) | 2800K(Tungsten)/6500K(Daylight) |
| CRI Whites(Min.) | 95+(Tungsten)/95+(Daylight) | TLCI Whites(Typ.) | 95+(Tungsten)/95+(Daylight) |
| Max. Lumen(Typ.) | 770(Red)/1840(Green)/465(Blue) 1250(Tungsten)/1500(Daylight) | View Angle | 120° |
| Dimension | 480mm×240mm(18.9in×9.45in) | Cuttable or not | Yes |
| Mini Cuttable Segment | 120×20mm(4.72×0.79in.) | Cuttable Segment per Piece | 48 |
| LEDs per Cut Segment | 6pcs | Mat overall Thickness | 2.1mm(0.0831 in.) |
| Copper Thickness | 3oz(1oz+2oz) | LED Specing | 20mm(0.79in.) Center to Center |
| Connector | 6 pin Bared Cable(20AWG) | Mounting | 3M 9080HL(Others optional) |
| Operation Temperature | -20° C to +50° C | LED Lifetime | 50,000 Hrs |
| IP Grade | IP20 | Certification | UL/CUL( US/Canada),CE Compliant (Europe) |
*Note:
1. The tolerance of lumen fux and power is ±10% due to difference for test equipment.
2. The parameters may change without prior notice.
