CINEMA Chroma 2835 RGBACCT Flex LED Mat 12V-24V-48V

CINEMA Chroma 2835 RGBACCT Flex LED Mat 1296leds 12V-24V-48V
● High density with 972leds/pcs with DC12V/24V/48V design;
● Dimension 480×240mm ;
● Single R/G/B/T/D design with high brightness;
● Cinema quality 2835 SMD with Ra>95, R1-R15>90,TLCI>95 for white color;
● Perfect for professional-grade studio lighting and high-level accent lighting for film, photography, fashion, art, backlight, etc;
Send Inquiry

Description

Technical Parameters



product-1-1

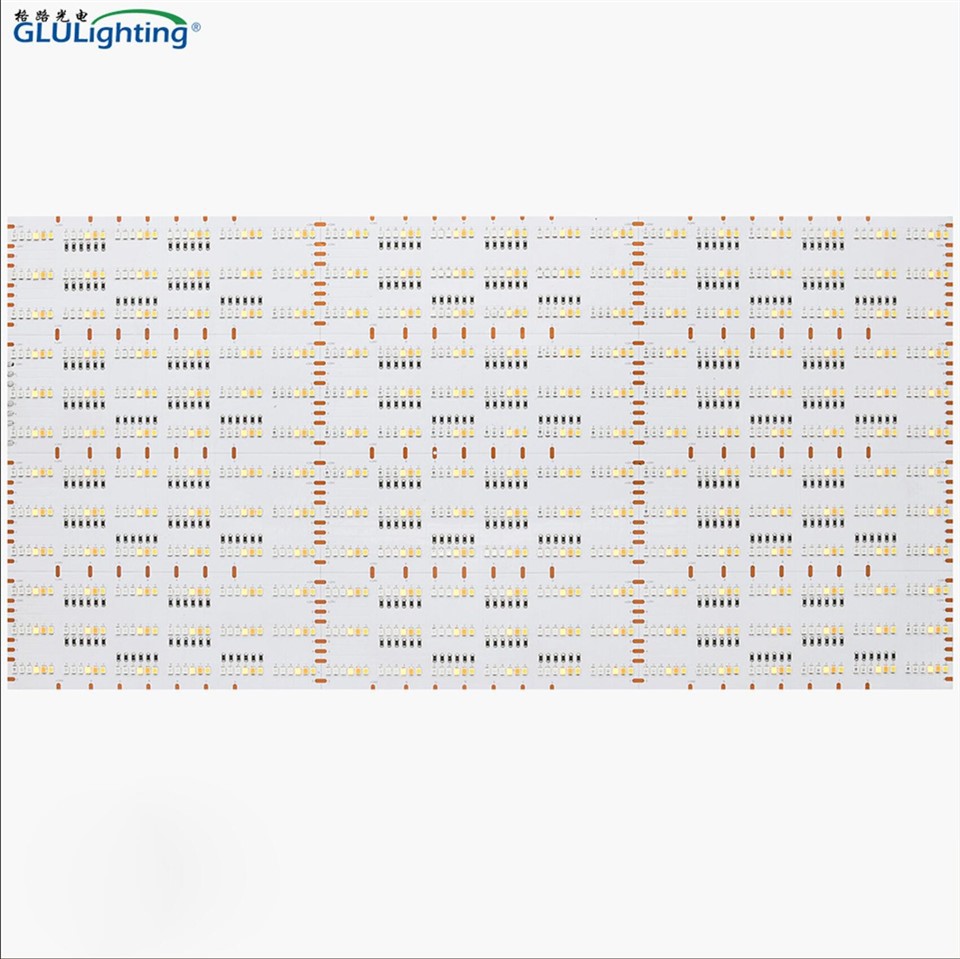

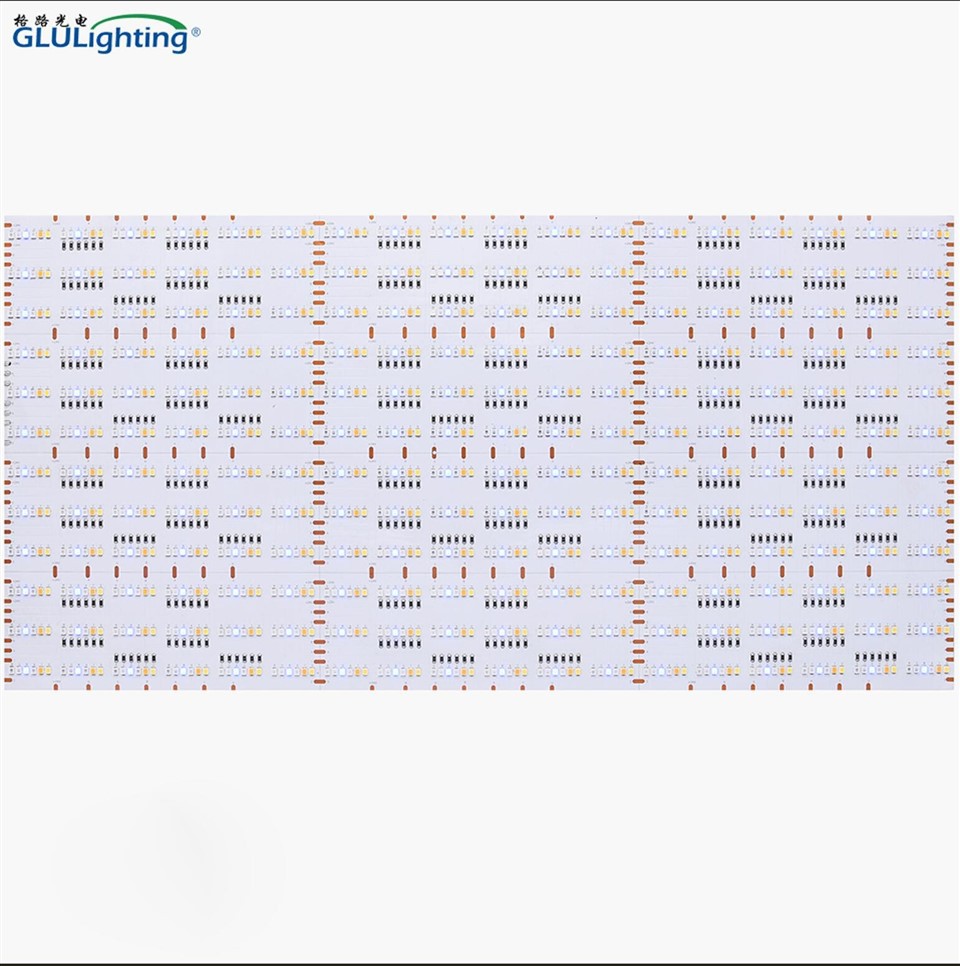

CINEMA Chroma 2835 RGBACCT Flex LED Mat 1296leds 12V-24V-48V Description & Key Feature


CINEMA Chroma 2835 RGBACCT Flex LED Mat 1296leds 12V-24V-48V are the most popular product series to the Chroma Mat family. They are come with 2835 single red, green, blue, amber leds combined with Cinema quality 2835 Daylight and 2835 Tungsten SMD, Ra>95, full sperum R1-r15 all above 90, TLCI>95. With various cuttable versions working with DC12V,DC24V and DC48V, different density available for different choice, Designed for cinema, television, viedo, by using professional high frequency controller or 6 channels DMX decoder supplied by GLU Light, you can achieve more rich colors, and correct colors in a large area, with 120 degree view angle allows for soft, uniform output even at close distance. They are vrsatile, light-weight, color-correct and economical makes all thest light mat a hit with cinematographers and DOPs alike.

A

01

DC12V, DC24V & DC48V

CINEMA Chroma 2835 RGBACCT Flex LED Mat 1296leds 12V-24V-48V are designed with DC12V/DC24V & DC48V, which can apply for different project requirement.

02

Cuttable

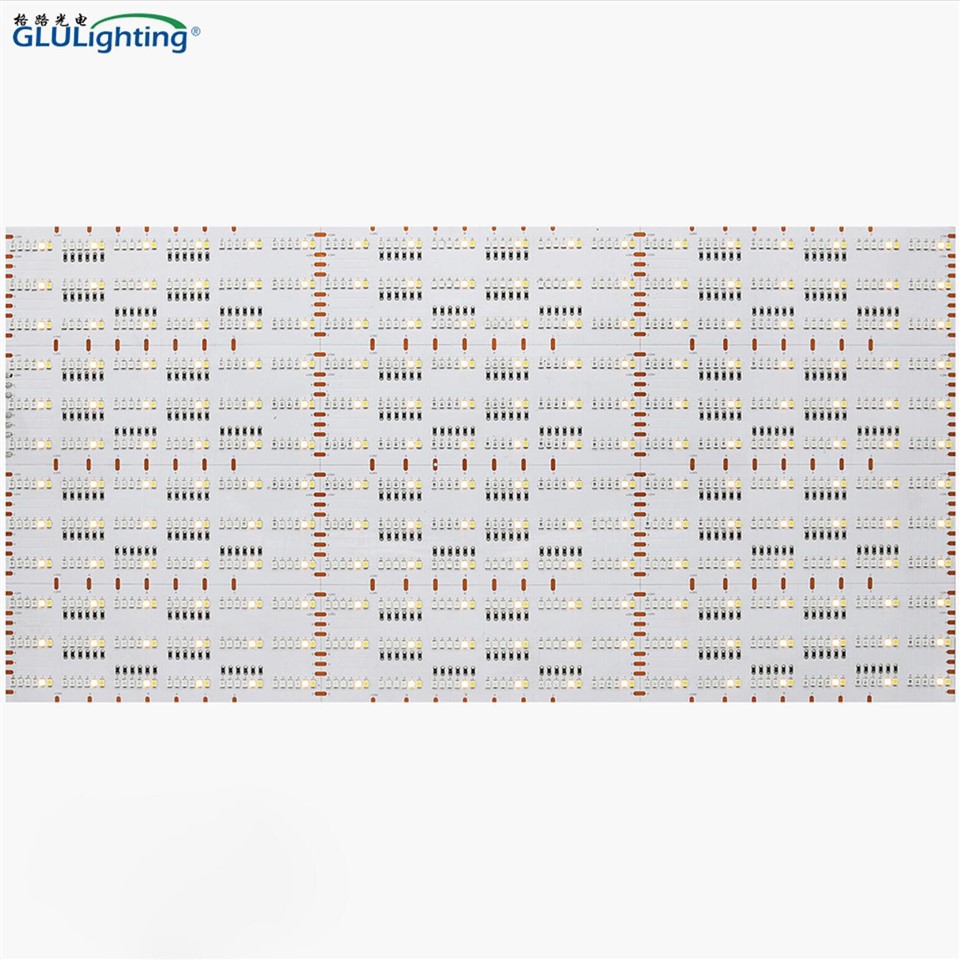

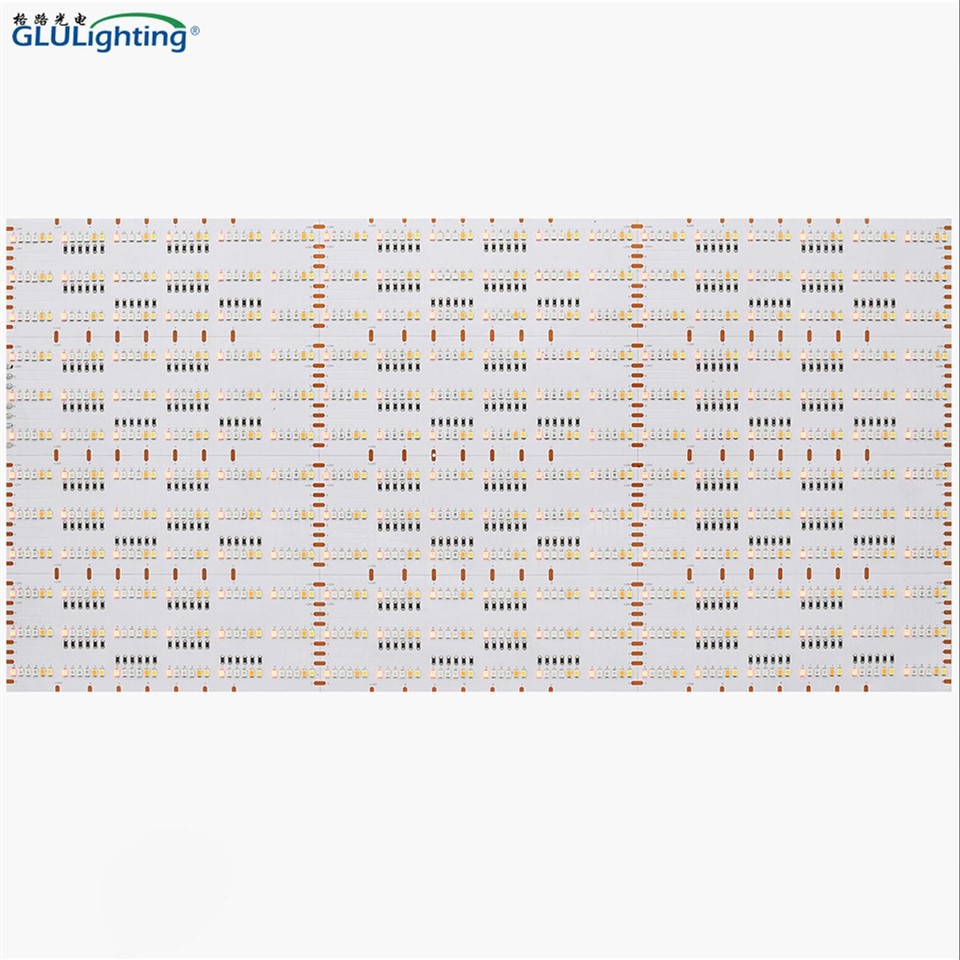

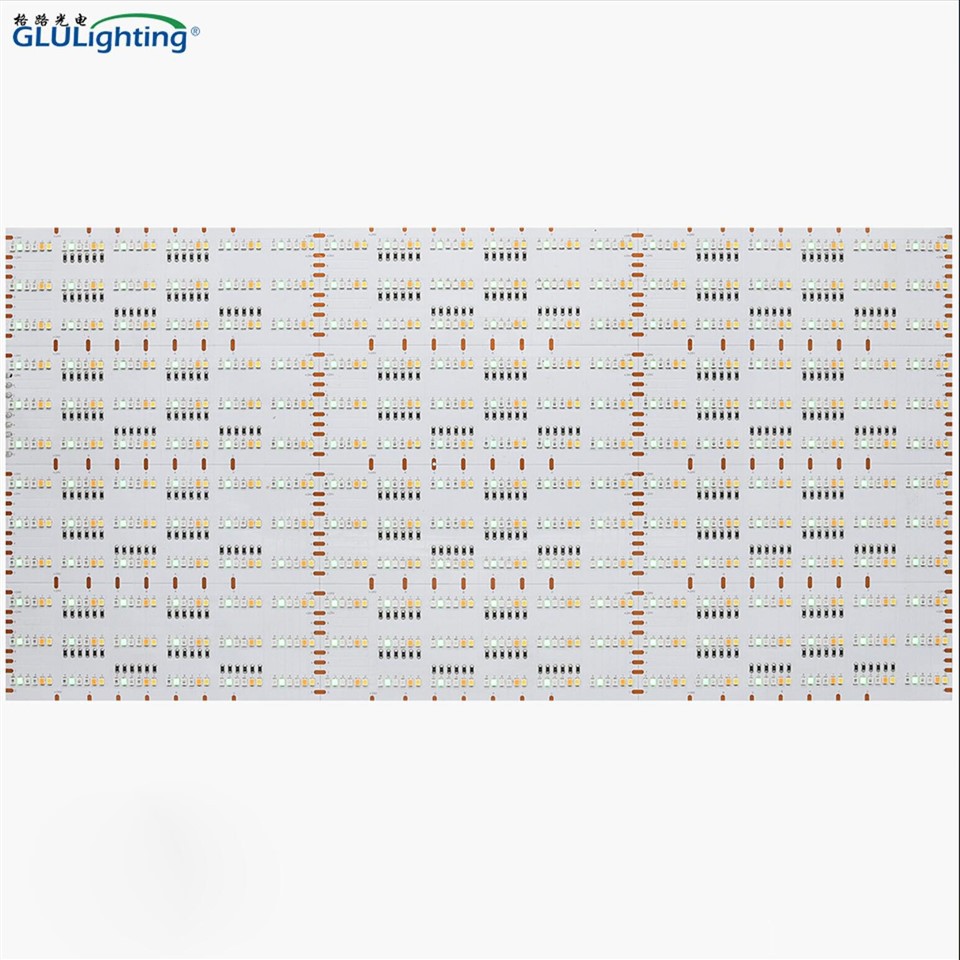

CINEMA Chroma 2835 RGBACCT Flex LED Mat 1296leds 12V-24V-48V comes with 480*240mm, cuttable with

minimum cuttable size 80×60mm for 12V, 160×60mm for 24V and 160×40mm for 48V.

03

High Density

CINEMA Chroma 2835 RGBACCT Flex LED Mat 1296leds 12V-24V-48V comes with high density, with 1296pcs 2835 SMD, R/G/B/A/T/D each color 216pcs.

04

Cinema Grade LED

CINEMA Chroma 2835 RGBACCT Flex LED Mat 1296leds 12V-24V-48V comes with cinema grade 2835 SMD, for tungsten and daylight with Ra95+, R1-R15 above 90, TLCI above 95.

CINEMA Chroma 2835 RGBACCT Flex LED Mat 1296leds 12V-24V-48V details



b

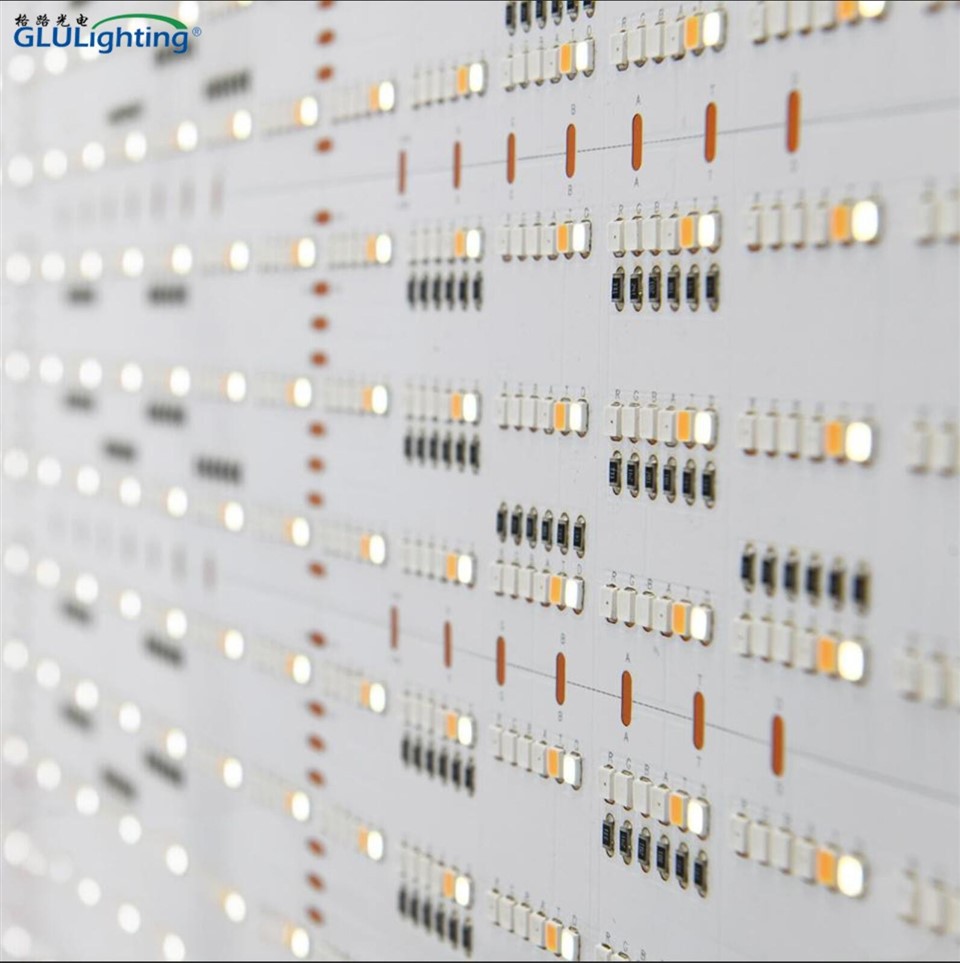

CINEMA quality 2835 SMD LED, with 3oz copper PCB

C

18AWG cable for low volage drop and higher current carry ability.

d

3M 9080HL for standard and also others like 3M VHB, Tesa tape are avilable for choice.

competitive advantage



Excellent Proformance

Cinema quality 2835 SMD are used, with high CRI above 95, and R1-R15 above 90, TLCI above 95.

Self R & D

We have professional engineer team for R & D, we can may any led related products according to any of your idea.

Strict Quality Control

We have a strict quality control system according to ISO, and we have strict quality control process during all production.

OEM & oDM serives

We have professional team, who have a rich experience in high end products, besides our standard products we can make any related customized products to meet your different requirement.

Rich Experience

We have over 15years experience for LED products and over 13 years experience for the high CRI solutions especially for film industry.

Fast delivery

For the popular products we have stocked PCB for fast delivery, for samples around 5-7days, and for mass production around 15days.



CRI SPECTRUM & WAVELENGTH FOR TUNGSTEN AND DAYLIGHT

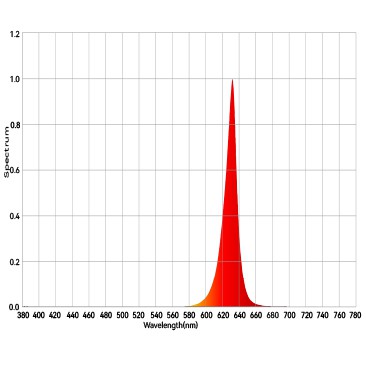

2835 R

WAVELENGTH 622.3NM

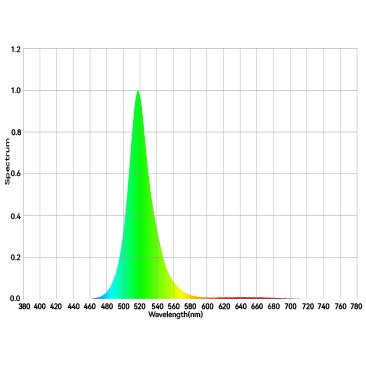

2835-G

WAVELENGTH 519.9NM

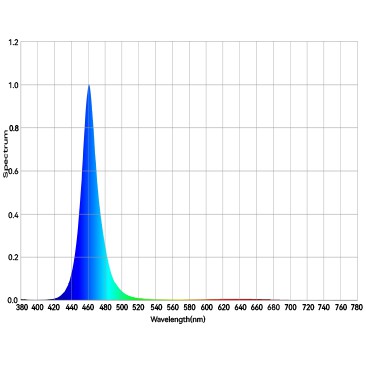

2835-b

WAVELENGTH 460.5NM

2835-a

WAVELENGTH 591.3NM

2008K

Flame Color 1900-2100K, Ra97.1

2262K

Tungsten Color 2100-2300K Ra96.6

2766K

Tungsten Color 2700-2900K Ra97.3

3125K

Tungsten Color 3100-3300K Ra97.4

5653K

Daylight 5400-5800K Ra98.3

6498K

Daylight 6300-6700K Ra98.4

CINEMA Chroma 2835 RGBACCT Flex LED Mat 1296leds 12V-24V-48V Dimension

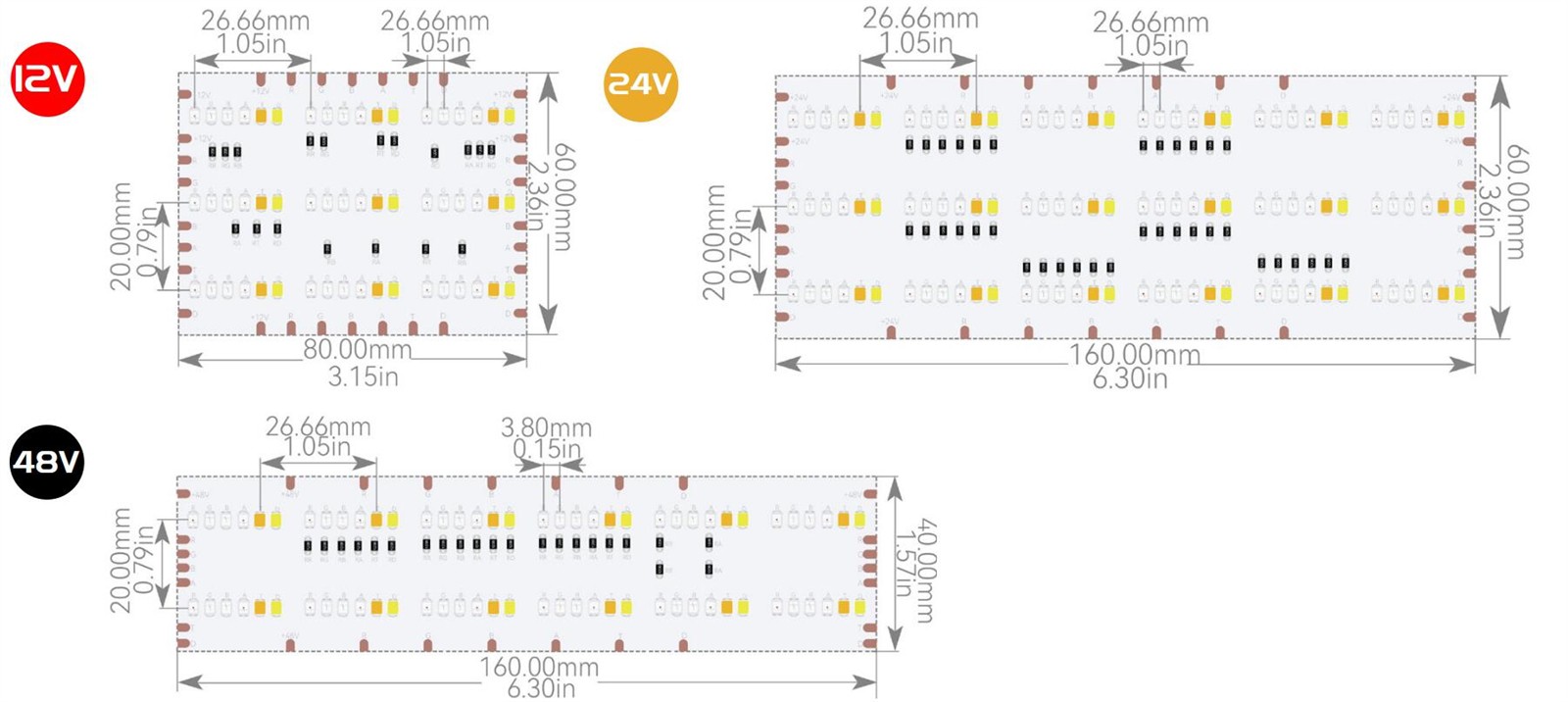

dimension1

dimension2

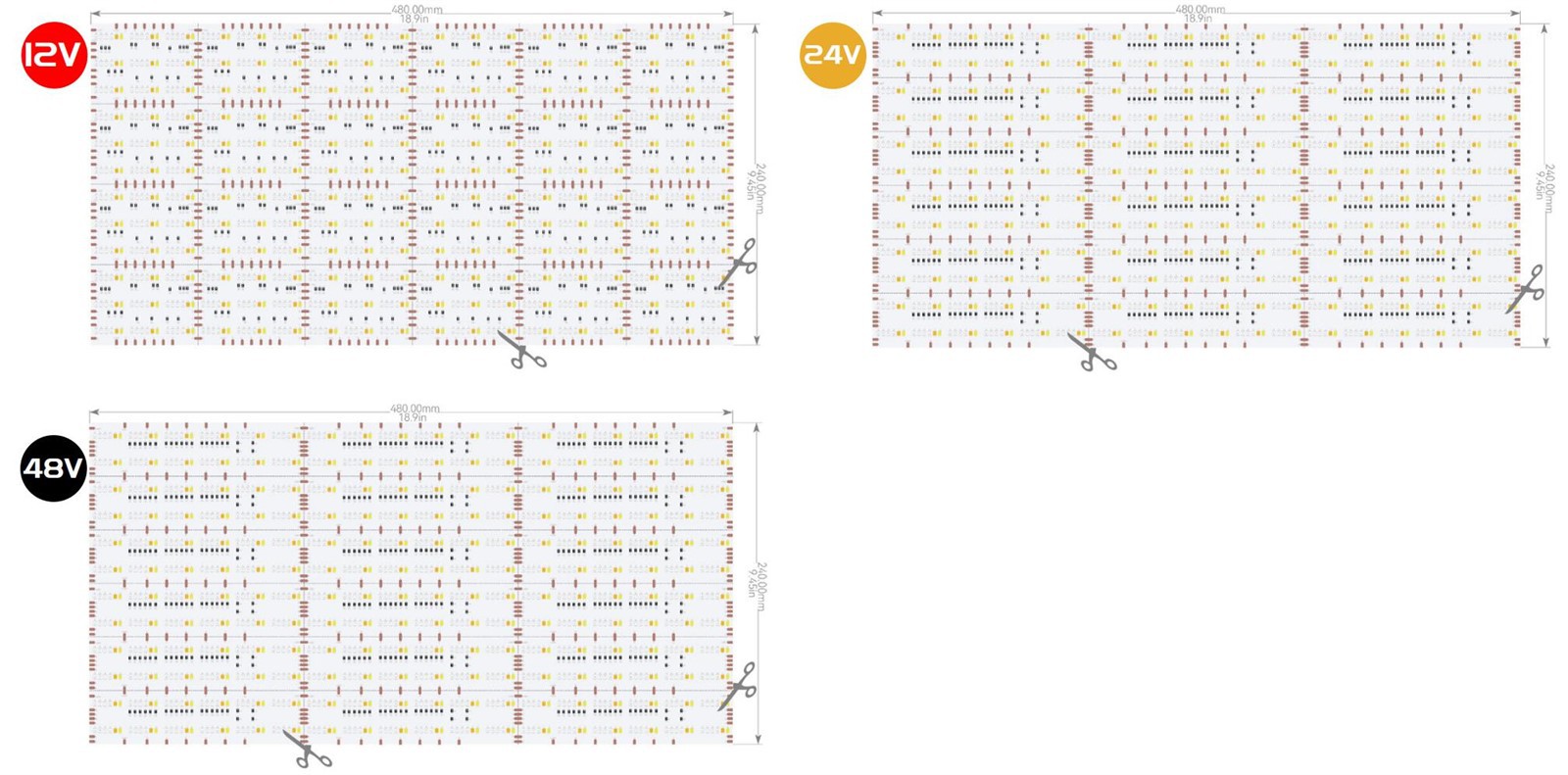

Dimension3



CINEMA Chroma 2835 RGBACCT Flex LED Mat 1296leds 12V-24V-48V Packing



packing

CINEMA Chroma 2835 RGBACCT Flex LED Mat 1296leds 12V-24V-48V Application



For a High CRI95+ RGB+Bi color Flexible panels, which are designed to be used for film, television, and wherever a desire for high quality lighting is required. With richable color available and they are fantastic in tight spaces and for shooting on location. Extremely vrsatile, light-wight, color-correct, and economical make these RGB+Bi color flexible LED panels a hit with cinematographers and DOPs alike. Thus for the whole strips series are suitable and widely usde for film, TV, studio, photographic studio, news studio, liveing shows, commercial shooting etc.

application



Our Company





Our Factory



Our R & D





R D



Quality Control





Quality Control



Aging test for flex LED mat





Aging



our certifications





Certification



Frequently Asked Questions



What a High CRI Flexible LED Mat/Panel?

+

-

High CRI flexible LED mat/panel is a surface Surface light source which are made with flexible PCB and cinema grade high CRI LEDs, which are widely used for film, TV, studio, liveing shows, commercial shooting etc. Normally comes with 480*240MM for standard and also other dimension like 600*300mm, or any size with max. width below 300mm.

What different High CRI Flexible LED Mat/Panel we offer?

+

-

For our high CRI Flexible LED mat/panels we offer in different colors, include single color, bi-color, Chroma RGB, Chroma RGBW, Chroma RGBCCT and Chroma RGBACCT, which can achieve rich colors for different applications.

What different voltage we offer for our High CRI Flexible LED Mat/Panel ?

+

-

For our High CRI Flexible LED Mat/panels , normally we offer DC12V and DC24V, and some models with DC48V, and also it's available for us to make customized voltage like DC36V etc.

What's the CRI value of our High CRI Flexible LED Mat/Panel?

+

-

For our high CRI Fexible LED Mat/panel, besides the Red, green,blue and amber color, for tungsten and daylight color, we offer 2835SMD and 5730 SMD, and for all our white color, we offer these leds with cinema quality, with wide CCT range from 2000K to 10000K, and all with a high Ra value above 95, and most are over 97 and 98, and for the most popular CCT, like 2800K, 5600k, 6500k we offer them with Ra value minimum 95, R1-R15 all above 90, and TLCI over 95, which the colors  look more vibrant, realistic, and natural in your photos and videos. Skin tones will look healthy, and you'll avoid muddy or dull colors.

How to control these High CRI Flexible LED Mat/panels?

+

-

For the high CRI Flexible LED Mat/panels, which is dimmable, as they are comes with constant voltage design, so which can be controlled by dimmer controller or contant voltage RGB, RGBW, RGBCCT and 6 channels controller, of course if you will use them in the film industry, you need a controller with high PWM frequency to achieve flicker free under a carema. And for most use in the film industry will use DMX, when use with DMX, there should be DMX decoders, of course these decoder should with high PWM frequency. And we offer a DMX Decoder with PWM frequency can be up to 22KHz and even to 30KHz.

Hot Tags: cinema chroma 2835 rgbacct flex led mat 12v-24v-48v, China, manufacturers, suppliers, factory, customized

CINEMA Chroma 2835 RGBACCT Flex LED Mat 1296leds 12V-24V-48V Parameter

Product drawing

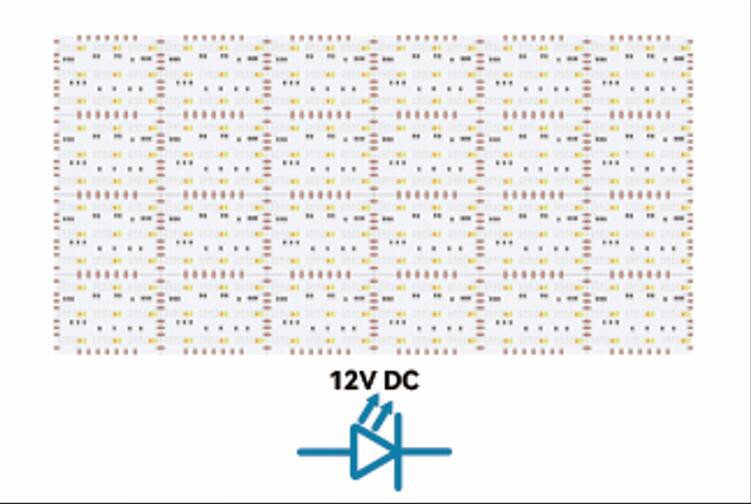

12V-1

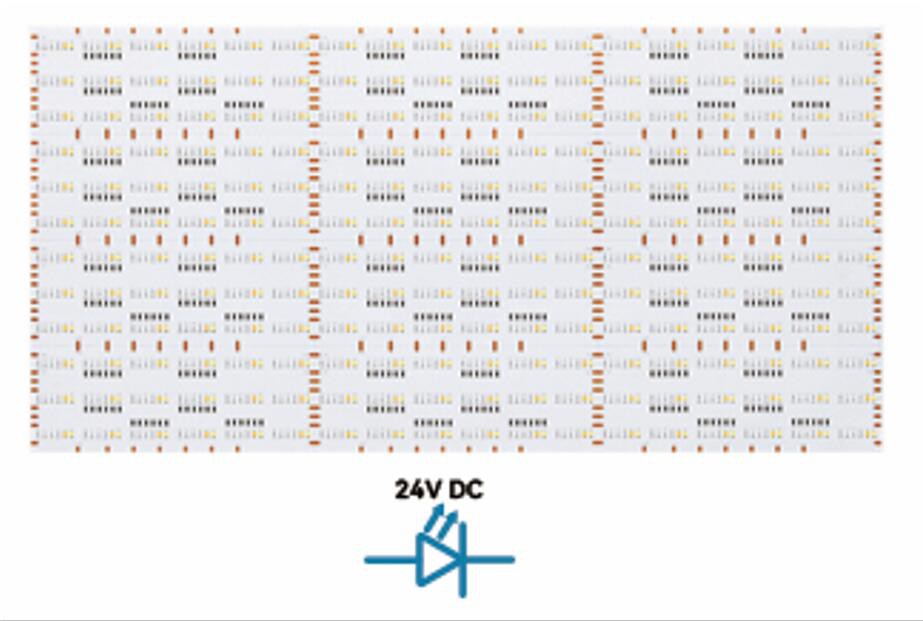

24v-1
48V-1

Basic feature

Product Code GLUB12CV424L0300FH03W1296C3 GLUB24CV424L0300FH06W1296C3 GLUB48CV424L0300FH12W1296C3
Part No. GLU-P6L0300FH1296-12V GLU-P6L0300FH1296-24V GLU-P6L0300FH1296-48V
Color RGBATD RGBATD RGBATD
LED Qty./PCS

1296pcs

(2835 R/G/B/A/T/D each 216pcs)

1296pcs

(2835 R/G/B/A/T/D each 216pcs)

1296pcs

(2835 R/G/B/A/T/D each 216pcs)

Working Voltage 12 VDC Typ. (8-13 VDC Constant Voltage) 24 VDC Typ. (18-26 VDC Constant Voltage 48 VDC Typ. (31-50 VDC Constant Voltage)
Max. Current per PCS 5A(UL Standard)/12.5A(CE Standard) 4.16A(UL Standard)/6.25A(CE Standard) 2.08A(UL Standard)/3.125A(CE Standard)
Max. Power per PCS 60W(UL Standard)/150W(CE Standard) 100W(UL Standard)/150W(CE Standard) 100W(UL Standard)/150W(CE Standard)
Current for each Color(UL Standard) Red 0.72A /Green 0.72A/Blue 0.72A/Amber 0.72A/Tungsten 1.08A/Daylight 1.08A Red 0.65A /Green 0.65A/Blue 0.65A/Amber 0.65A/Tungsten 0.79A/Daylight 0.79A Red 0.32A /Green 0.32A/Blue 0.32A/Amber 0.32A/Tungsten 0.4A/Daylight 0.4A
Current for each Color(CE Standard) Red 1.8A /Green 1.8A/Blue 1.8A/Amber 1.8A /Tungsten 2.66A/Daylight 2.66A Red 0.9A /Green 0.9A/Blue 0.9A/Amber 0.9A/Tungsten 1.33A/Daylight 1.33A Red 0.45A /Green 0.45A/Blue 0.45A/Amber 0.45A/ Tungsten 0.67A/Daylight 0.67A
Power for each Color(UL Standard)

Red 8.64W/Green 8.64W/Blue 8.64W/Amber 8.64W/Tungsten

12.96W/Daylight 12.96W

Red 15.55W/Green 15.55W/Blue 15.55W/Amber15.55W /Tungsten 19.01W/Daylight 19.01W Red 15.55W/Green 15.55W/Blue 15.55W/Amber 15.55W/Tungsten 19.01W/Daylight 19.01W
Power for each Color(CE Standard) Red 21.6W/Green 21.6W/Blue 21.6W/Amber 21.6W/Tungsten 31.97W/Daylight 31.97W Red 25.92W/Green 25.92W/Blue 25.92W/Amber 25.92W/Tungsten 34.56W/Daylight 34.56W Red 21.6W/Green 21.6W/Blue 21.6W/Amber 21.6W/Tungsten 31.97W/Daylight 31.97W
WLD Colors R 620-625nm G 520-525nm B 460-465nm A 590-595nm R 620-625nm G 520-525nm B 460-465nm A 590-595nm R 620-625nm G 520-525nm B 460-465nm A 590-595nm
CCT Whites (Typ.) 2800K(Tungsten)/6500K(Daylight) 2800K(Tungsten)/6500K(Daylight) 2800K(Tungsten)/6500K(Daylight)
CRI Whites(Min.) 95+(Tungsten)/95+(Daylight) 95+(Tungsten)/95+(Daylight) 95+(Tungsten)/95+(Daylight)
R1-R15 Whites(Min.) 90+ 90+ 90+
TLCI Whites(Typ.) 95+(Tungsten)/95+(Daylight) 95+(Tungsten)/95+(Daylight) 95+(Tungsten)/95+(Daylight)
TM-30 Data Whites

Rf>95, Rg>102,CQS>97

(Tungsten/Daylight)

Rf>95, Rg>102,CQS>97

(Tungsten/Daylight)

Rf>95, Rg>102,CQS>97

(Tungsten/Daylight)

Max. Lumen(Typ.)(UL Standard)

615(Red)/1700(Green)/350(Blue)/

430(Amber)/1460(Tungsten)/1635(Daylight)

615(Red)/1700(Green)/350(Blue)/

430(Amber)/1460(Tungsten)/1635(Daylight)

615(Red)/1700(Green)/350(Blue)/

430(Amber)/1460(Tungsten)/1635(Daylight)

Max. Lumen(Typ.)(CE Standard)

770(Red)/1990(Green)/420(Blue)/

545(Amber)/2640(Tungsten)/2980(Daylight)

770(Red)/1990(Green)/420(Blue)/

545(Amber)/2640(Tungsten)/2980(Daylight)

770(Red)/1990(Green)/420(Blue)/

545(Amber)/2640(Tungsten)/2980(Daylight)

Dimension 480mm×240mm(18.9in×9.45in) 480mm×240mm(18.9in×9.45in) 480mm×240mm(18.9in×9.45in)
View Angle 120° 120° 120°
Cuttable or not Yes Yes Yes
Mini Cuttable Segment 80×60mm(3.15×2.36in.) 160×60mm(6.3×2.36in.) 160×40mm(6.3×1.57in.)
Cuttable Segment per Piece 24 12 18
LEDs per Cut Segment 54pcs (2835R/G/B/T/D each 9pcs) 108pcs (2835R/G/B/T/D each 18pcs) 72pcs (2835R/G/B/T/D each 12pcs)
Mat overall Thickness 1.3mm(0.051 in.) 1.3mm(0.051 in.) 1.3mm(0.051 in.)
Copper Thickness 3oz(1oz+2oz) 3oz(1oz+2oz) 3oz(1oz+2oz)
LED Specing 26.66mm(1.05in.) Center to Center 26.66mm(1.05in.) Center to Center 26.66mm(1.05in.) Center to Center
Connector 7 pin Bared Cable(20AWG) 7 pin Bared Cable(20AWG) 7 pin Bared Cable(20AWG)
Mounting 3M 9080HL(Others optional) 3M 9080HL(Others optional) 3M 9080HL(Others optional)
Weight 0.146kg(0.32lb) include lead wire without backadhesive 0.146kg(0.32lb) include lead wire without backadhesive 0.146kg(0.32lb) include lead wire without backadhesive
Operation Temperature -20° C to +50° C -20° C to +50° C -20° C to +50° C
LED Lifetime 50,000 Hrs 50,000 Hrs 50,000 Hrs
IP Grade IP20 IP20 IP20
Cerriffcation UL/CUL( US/Canada),CE Compliant (Europe) UL/CUL( US/Canada),CE Compliant (Europe) UL/CUL( US/Canada),CE Compliant (Europe)

*Note:

1. The tolerance of lumen 􀇃fux and power is ±10% due to difference for test equipment.

2. The parameters may change without prior notice.
